Dirt King Performance Lower Control Arms | 2005–2023 Toyota Tacoma
Dirt King Performance Lower Control Arms | 2005–2023 Toyota Tacoma
Dirt King
SKU:DK-811704
Couldn't load pickup availability
Overview
Dirt King performance lower control arms were developed to withstand off-road abuse without compromising on-road driving characteristics. The boxed plate arms provide additional ground clearance and include replaceable 1/8-inch aluminum skid plates for added protection. An internally ribbed design helps protect the critical suspension mounting points after hard contact.
The outer pivots use heavy-duty Moog ball joints for low-maintenance, serviceable operation. Their sealed housings help reduce noise and contamination, and replacement joints are readily available. The inner pivots use Delrin bushings to support suspension articulation while resisting the premature wear and noise associated with softer bushing materials.
Additional features include recessed shock mounts with drain holes, provisions for bump stops and limit straps, and progressive steering stops that help provide maximum usable steering without over-articulating the CV axles or tie rods. The arms retain stock track width, accept OEM-replacement coilovers, and bolt on with the supplied hardware. Wear components are replaceable, and the arms have a durable black powder-coat finish.
Ships directly from the supplier.
Vehicle fitment
- 2005–2015 Toyota Tacoma 2WD / 4WD
- 2016–2023 Toyota Tacoma 2WD / 4WD
Check your trim, drivetrain, factory equipment and any required companion parts before installation. Contact sales@bajaracingparts.com for help matching parts to your vehicle.
Specifications
- Track Width
- Stock
- Maximum Tire Size
- 33 inches
- Maximum Backspacing
- 4.75 inches
- Minimum Rim Size
- 16 inches
- Compatible with Factory Sway Bar
- Yes
- Bump Stop Size
- 2.0 × 2.0 inches
- Coilover Shock Size
- OEM-replacement coilovers
What’s included

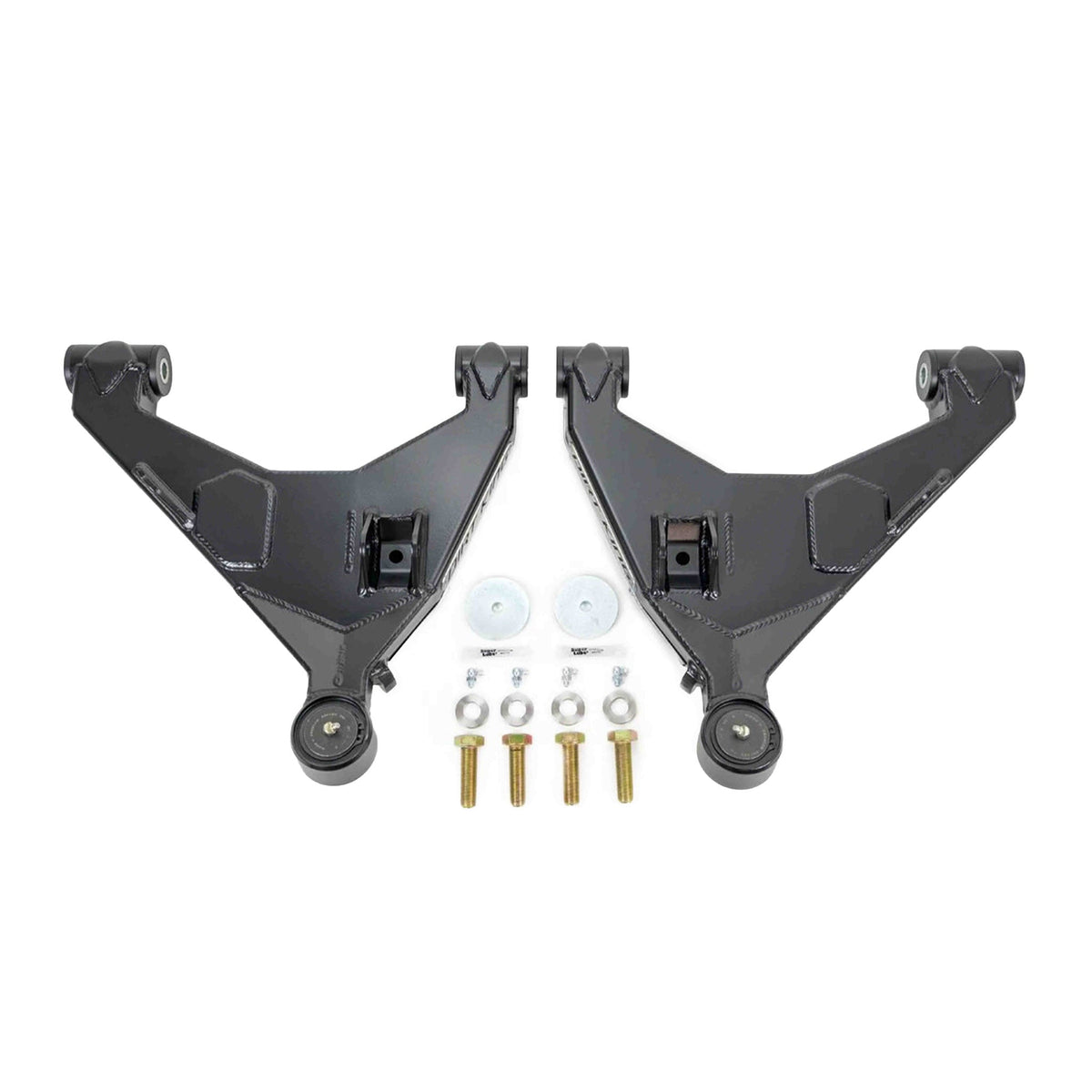

- Boxed plate lower control arms

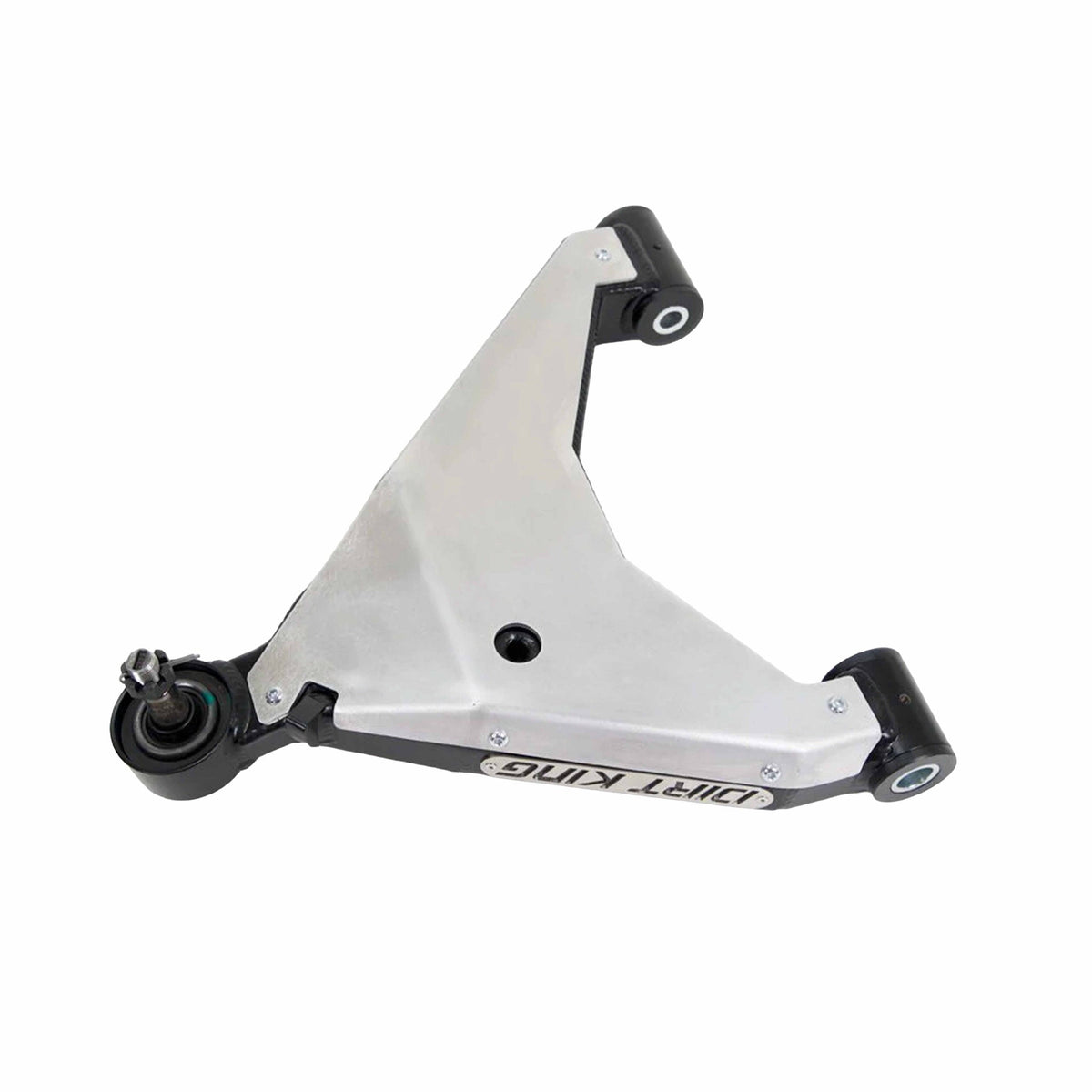

- 1/8-inch aluminum skid plates
- Delrin bushings
- Grease fittings
- Moog ball joints
- Brushed stainless-steel logo plates
- Grade 8 mounting hardware
- Zinc-plated inner bushing sleeves
- Zinc-plated bump-stop spacers
- Durable black powder-coat finish
- Dirt King sticker pack
- Installation instructions
Features
- CAD designed
- Slanted front plate to deflect objects
- Internally ribbed with weight-reducing extrusions
- Preassembled for faster installation
- Grease-fitting ports for easier servicing
- Zinc-plated components for corrosion resistance
- Bump-stop plating
- Limit-strap tabs
- Professionally MIG welded
- Made in the USA
Compatibility warnings
- Not compatible with 5-lug Tacoma models.
- Contact us before installing this kit with lift spindles or a bracket lift.
- This product is designed to pair with OEM and Dirt King parts. Compatibility with other brands must be approved by the respective manufacturer.
Part numbers and configurations
| Configuration | Part number | Price |
|---|---|---|
| 05-15 Tacoma 2WD/4WD | DK-811704 | $1,849.00 |
| 16-23 Tacoma 2WD/4WD | DK-813704 | $1,849.00 |
Manufacturer Warranty
Mfgr. Warranty: Terms vary by manufacturer and part
A written warranty duration has not been verified for this specific part. Ask Baja Racing Parts for the applicable manufacturer terms before purchase.
Baja Racing Parts is the retailer. Manufacturer claims follow the applicable warranty process. We can help identify the right contact and start your claim. Your legal rights remain applicable.
See our Warranty Policy or email sales@bajaracingparts.com for assistance.
