SKU:CKMTA12
Couldn't load pickup availability
Overview
The ARB CKMTA12 twin motor onboard compressor provides a high-output 12V air source for tire inflation and compatible pneumatic accessories. Air Locker operation and air-tool use require the appropriate additional equipment.
Features
100% duty cycle.
Twin motor design with high airflow.
Hard-anodized cylinder bores and Teflon-impregnated carbon-fiber piston seals.
Integrated pressure switch and over-pressure safety valve.
IP55-rated cooling fan.
Supports Air Locker activation with the required optional accessories.
Specifications
Part number
CKMTA12
Voltage
12V
Maximum pressure
150 PSI
Maximum current
68.6 A
Airflow at 0 PSI
6.16 CFM
Airflow at 29 PSI
4.68 CFM
Product footprint
10.8 × 7.5 inches
Product height
4 inches
Duty cycle
100%

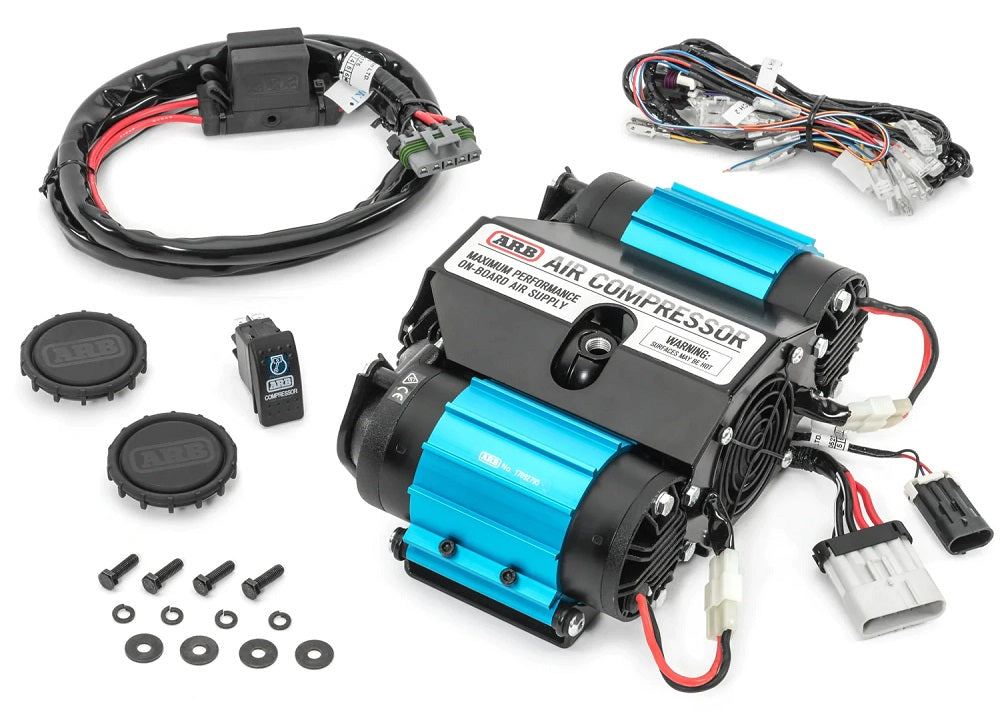

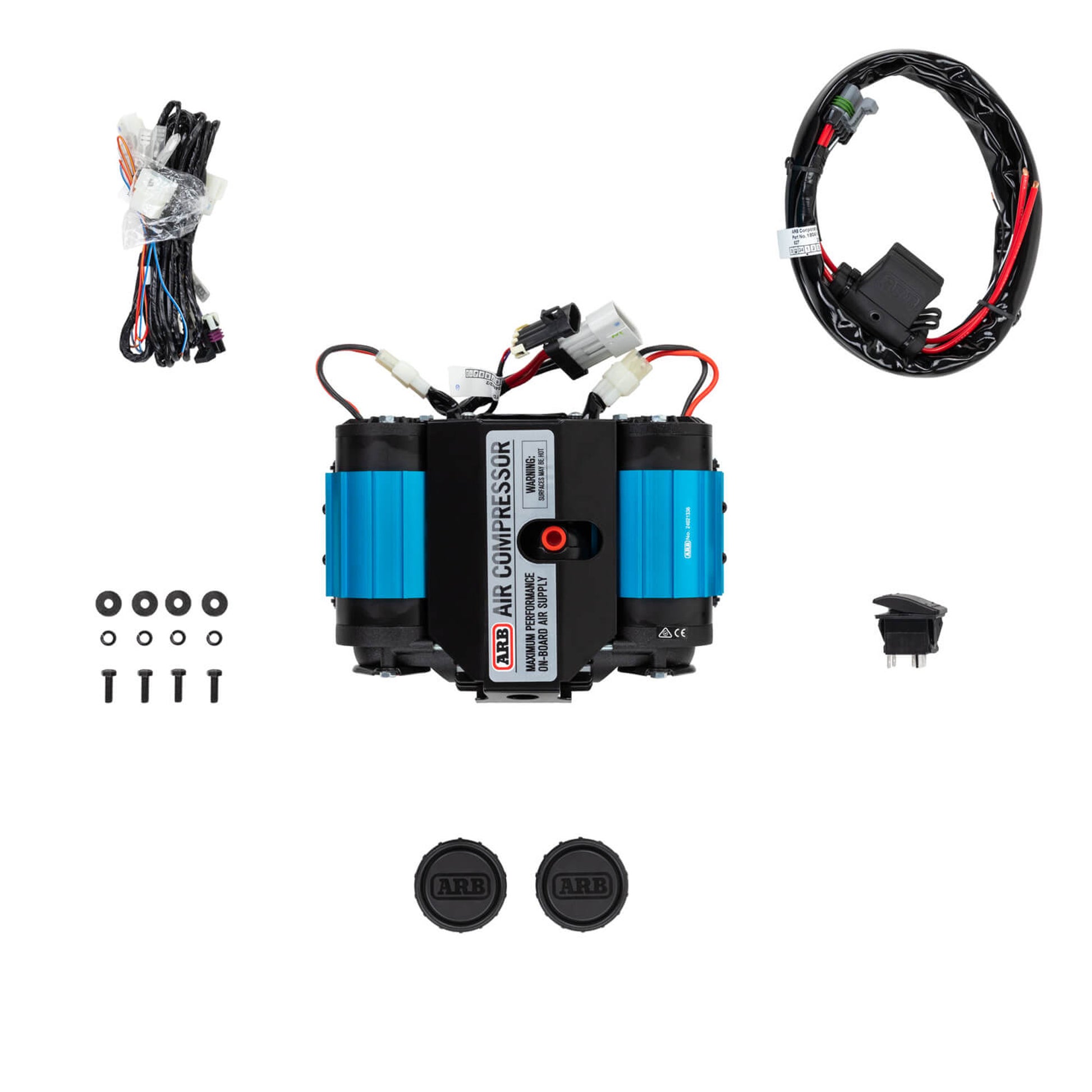

What's included
ARB CKMTA12 compressor assembly with air filters.
Supply and switch wiring looms, compressor switch and the electrical components listed in the ARB installation guide.
Supplied mounting fasteners and illustrated installation guide.
Compatibility
Onboard installation with a suitable mounting location and a compatible 12V electrical system.
Air tools may require an optional air tank; ARB specifies a 4L tank for many tools.
Installation notes
Follow the official ARB CKMTA12 installation guide for mounting, wiring, circuit protection and air connections.
Additional hoses, couplings, mounting solutions, Air Locker accessories or an air tank depend on the intended installation.
Covers manufacturing defects, subject to ARB's terms. Commercial coverage ends at 3 years or 60,000 miles, whichever comes first. Normal wear, incorrect installation, misuse and overloading are excluded. Proof of purchase is required.
This is a summary; the manufacturer's written terms and applicable law determine coverage. For full terms or help starting a claim, email sales@bajaracingparts.com. See our Warranty Policy.
