Dirt King
SKU:DK-811928
Couldn't load pickup availability
Overview

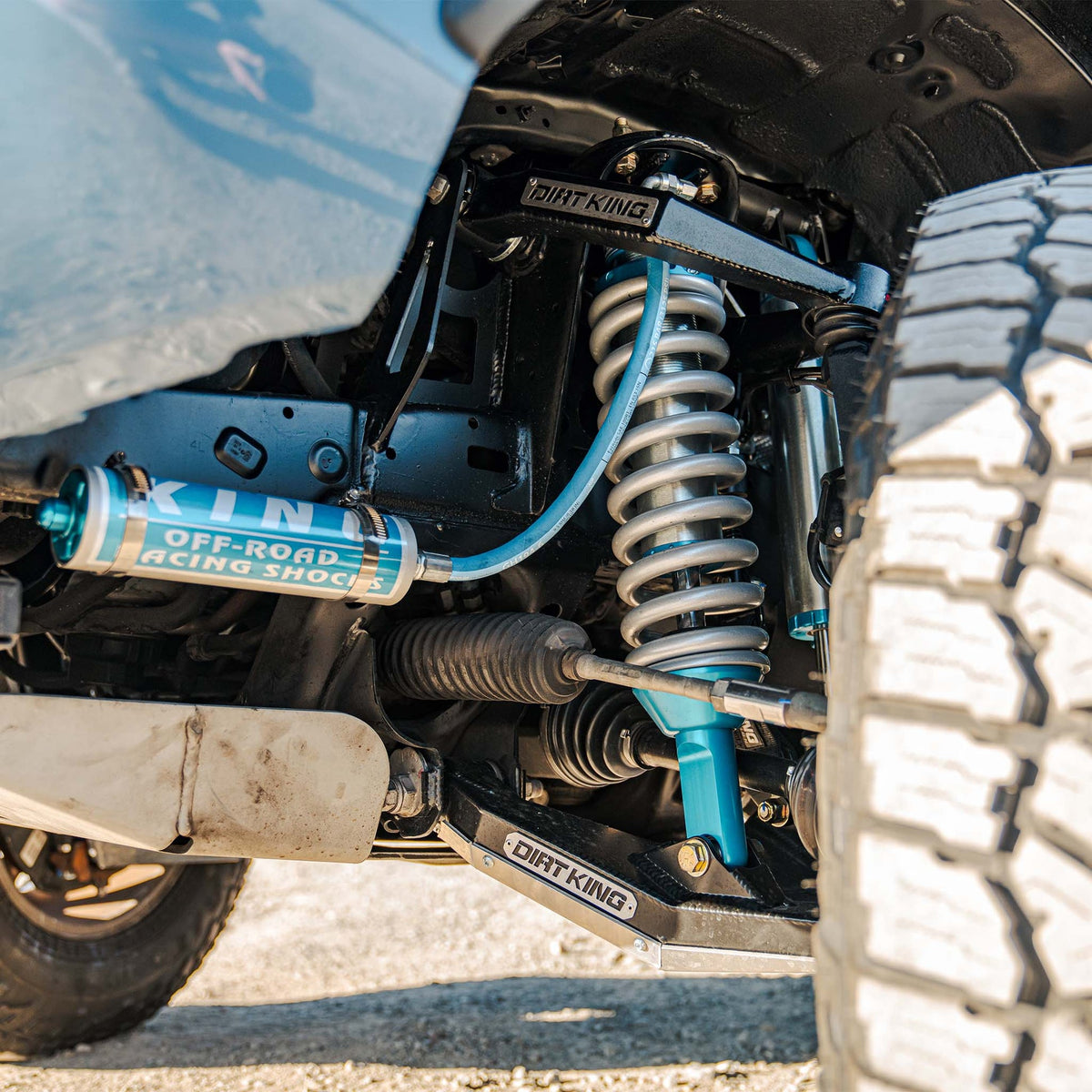

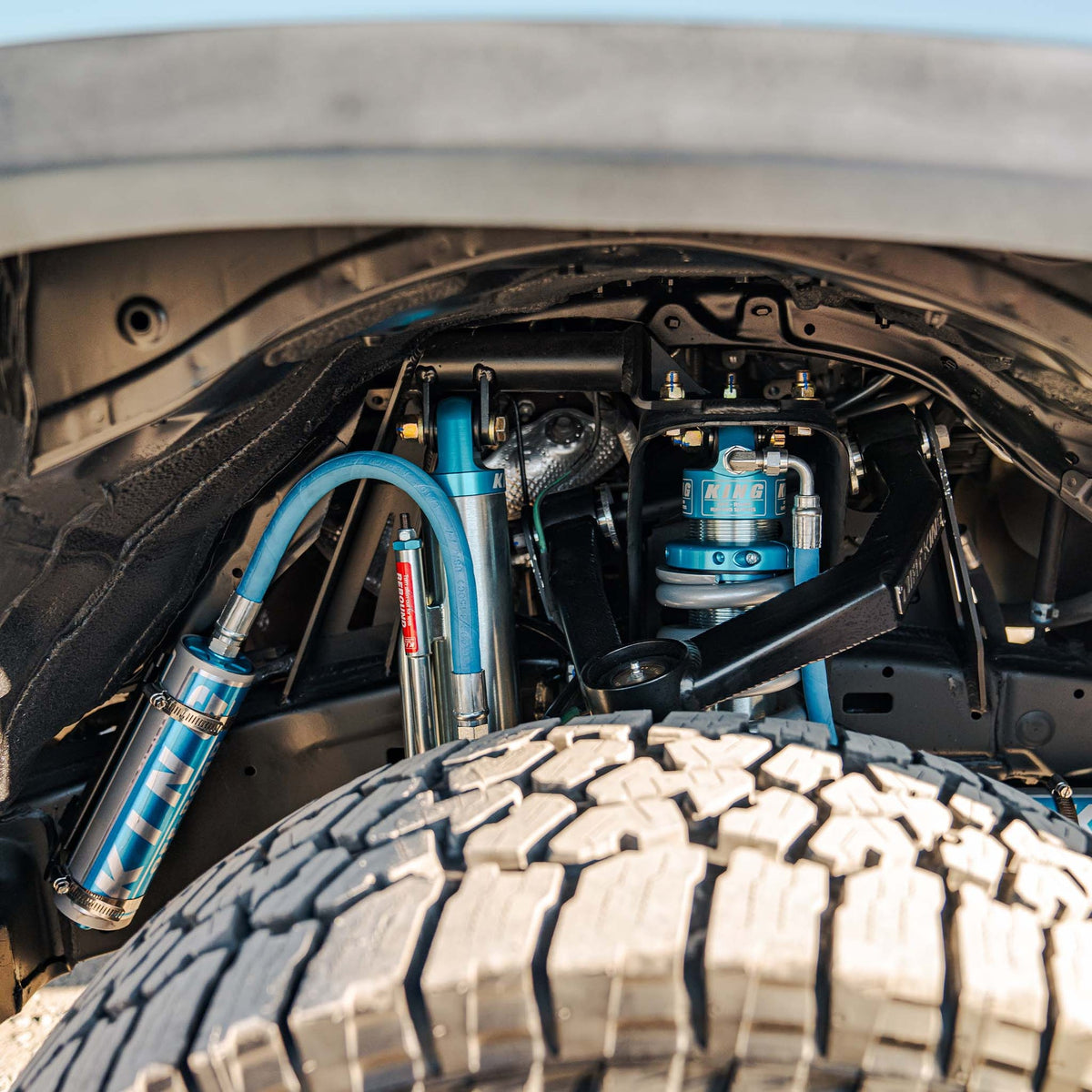

The Dirt King +2-inch long travel kit adds 2 inches of track width per side and provides over 25% more wheel travel for 2005–2023 Toyota Tacoma 2WD and 4WD models. The system uses SilentSpin upper control arm bushings, PTFE-infused Delrin lower control arm bushings, heavy-duty Moog ball joints and replaceable aluminum skid plates.

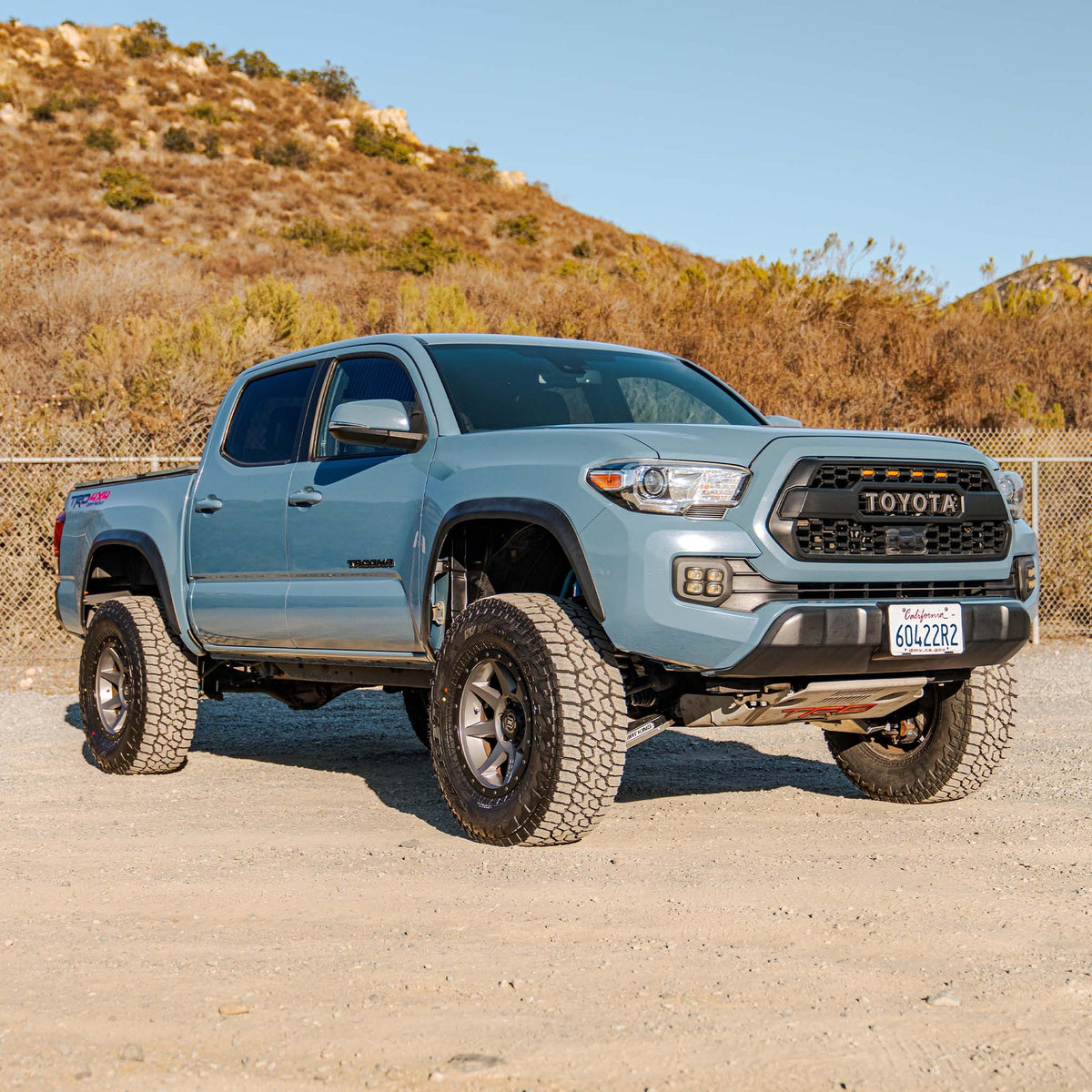

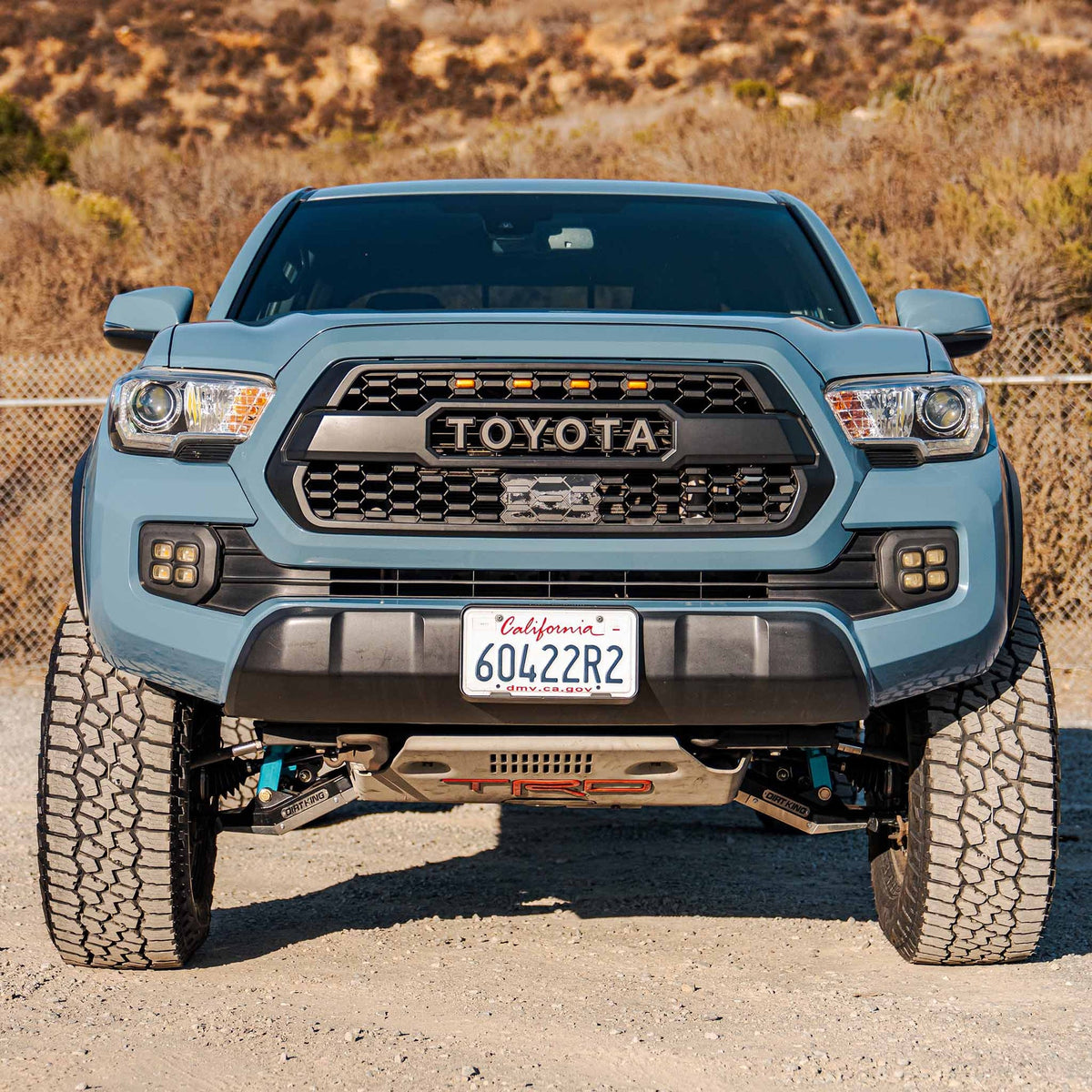

With zero- or positive-offset wheels, the kit supports up to 33-inch tires under stock fenders. Flared fenders can support up to 35-inch tires with zero- or negative-offset wheels. The kit supports Dirt King Spec coilovers alone, coilovers with bypass shocks, or coilovers with bump stops.
Specifications
- Wheel travel
- Up to 25% increase
- Lift range
- 0–3.5 inches

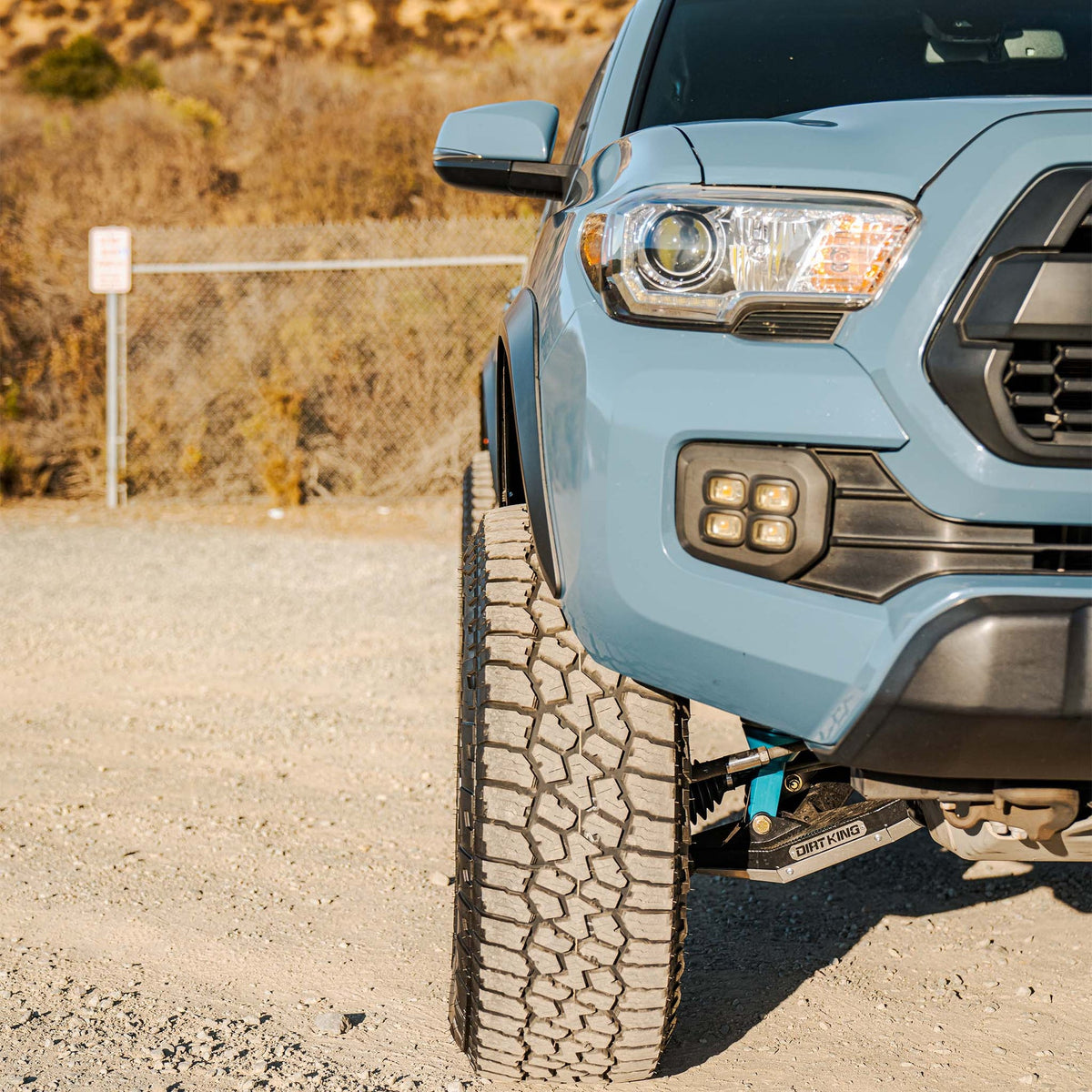

- Track width
- 2 inches wider per side
- Maximum tire size
- 35 inches
- Maximum backspacing
- 4.75 inches
- Minimum wheel size
- 16 inches
- Coilover size
- Dirt King Spec
- Bypass shock size
- Dirt King Spec
- Bump stop size
- 2.0 × 2.0 inches
4WD requirements
Full suspension travel on 4WD models requires a 1-inch differential drop and machining of the inner CV joints. Choose the correct axle or complete axle assembly configuration from the dropdowns.

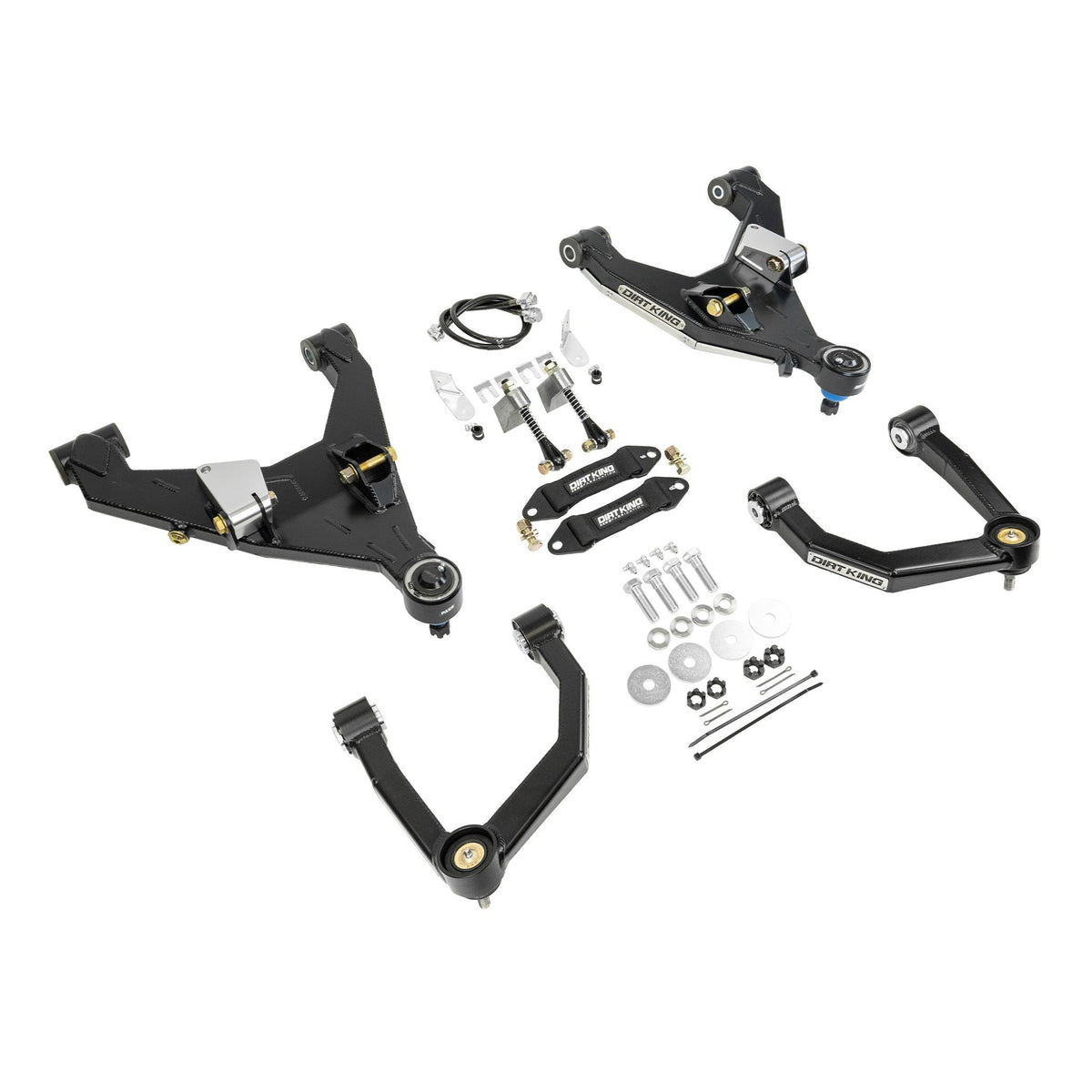

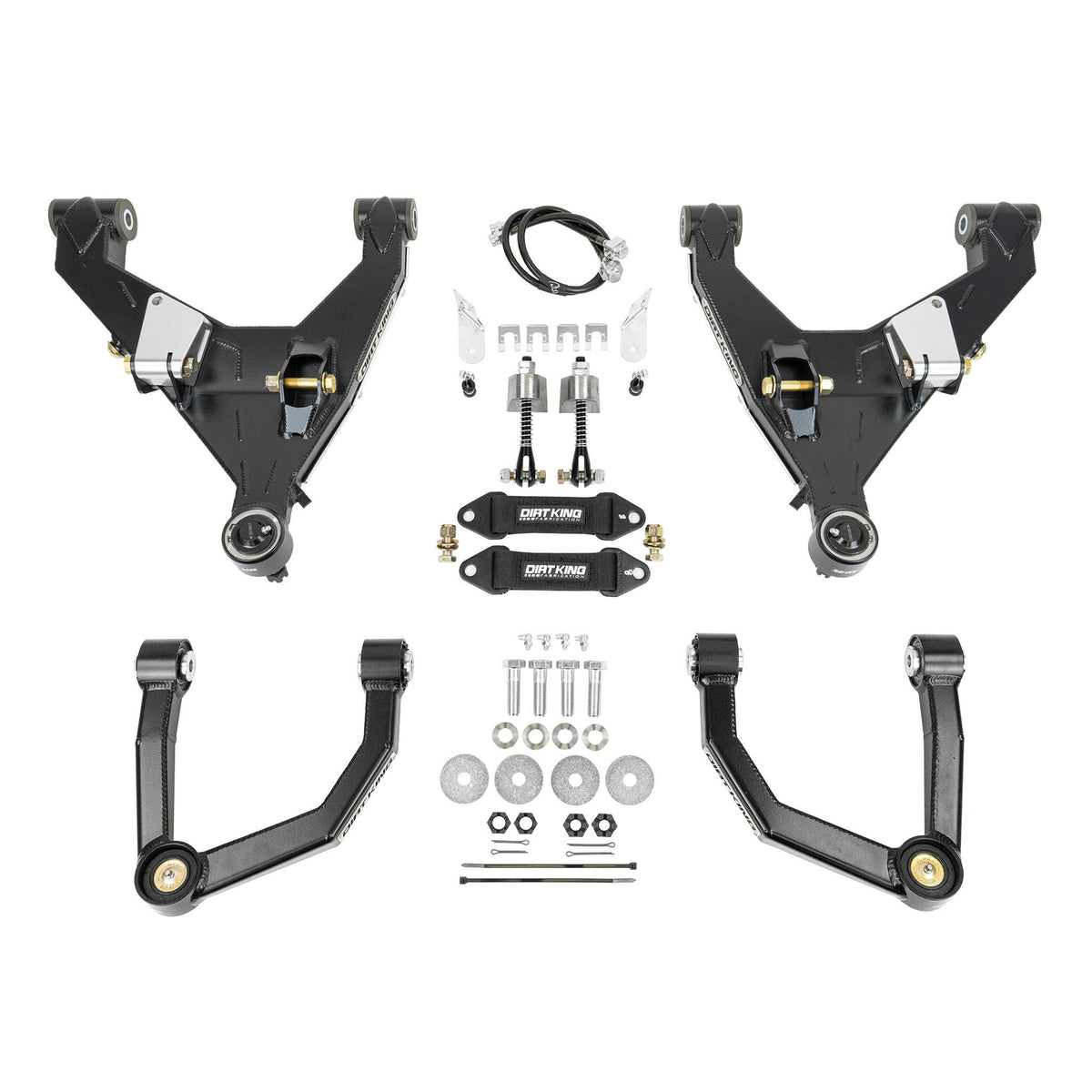

What's included
- Boxed upper and lower control arms

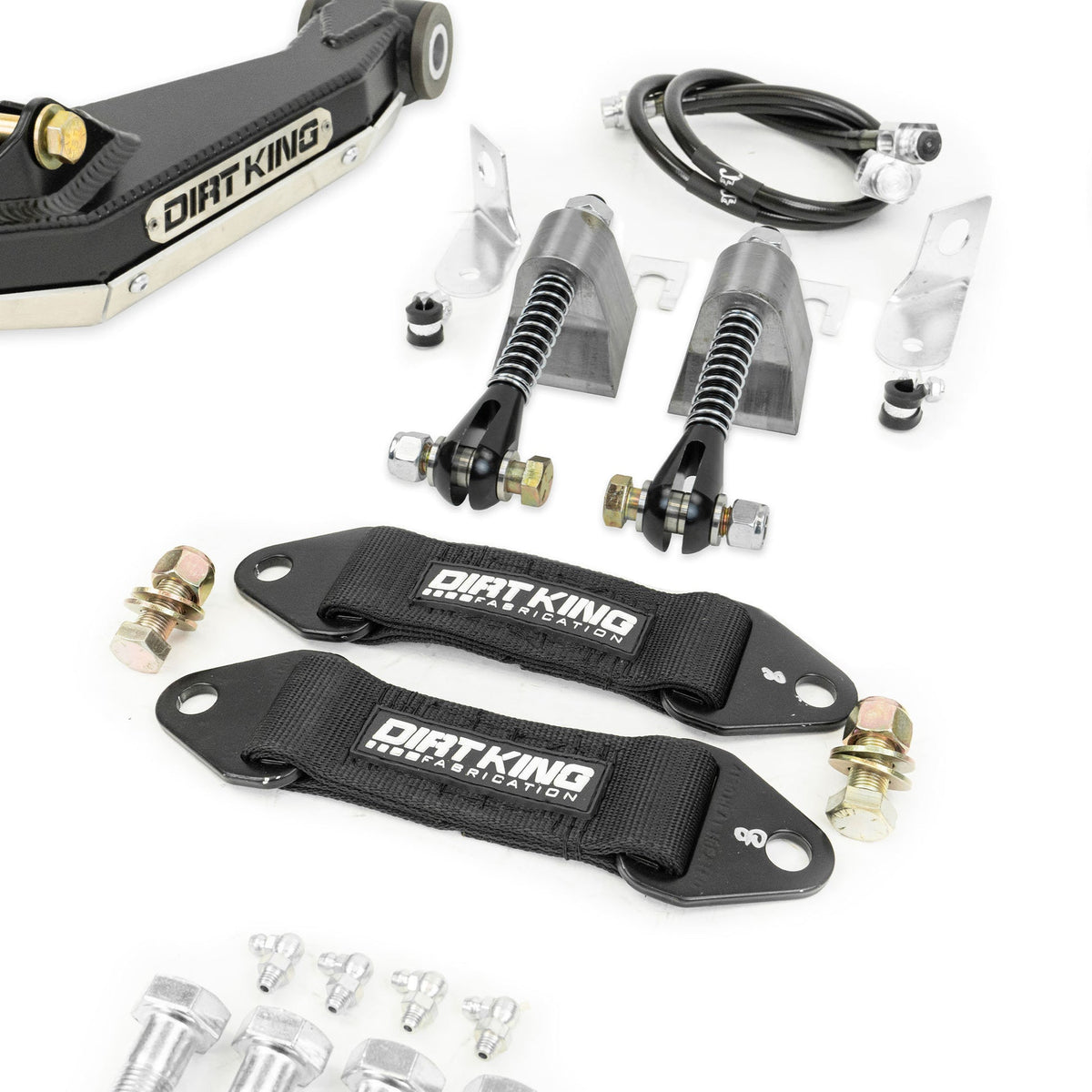

- 8-inch quad-wrap limit straps
- Weld-on adjustable limit strap mounts
- Stainless steel tie-rod extensions
- DOT-approved extended brake lines
- Grade 8 mounting hardware

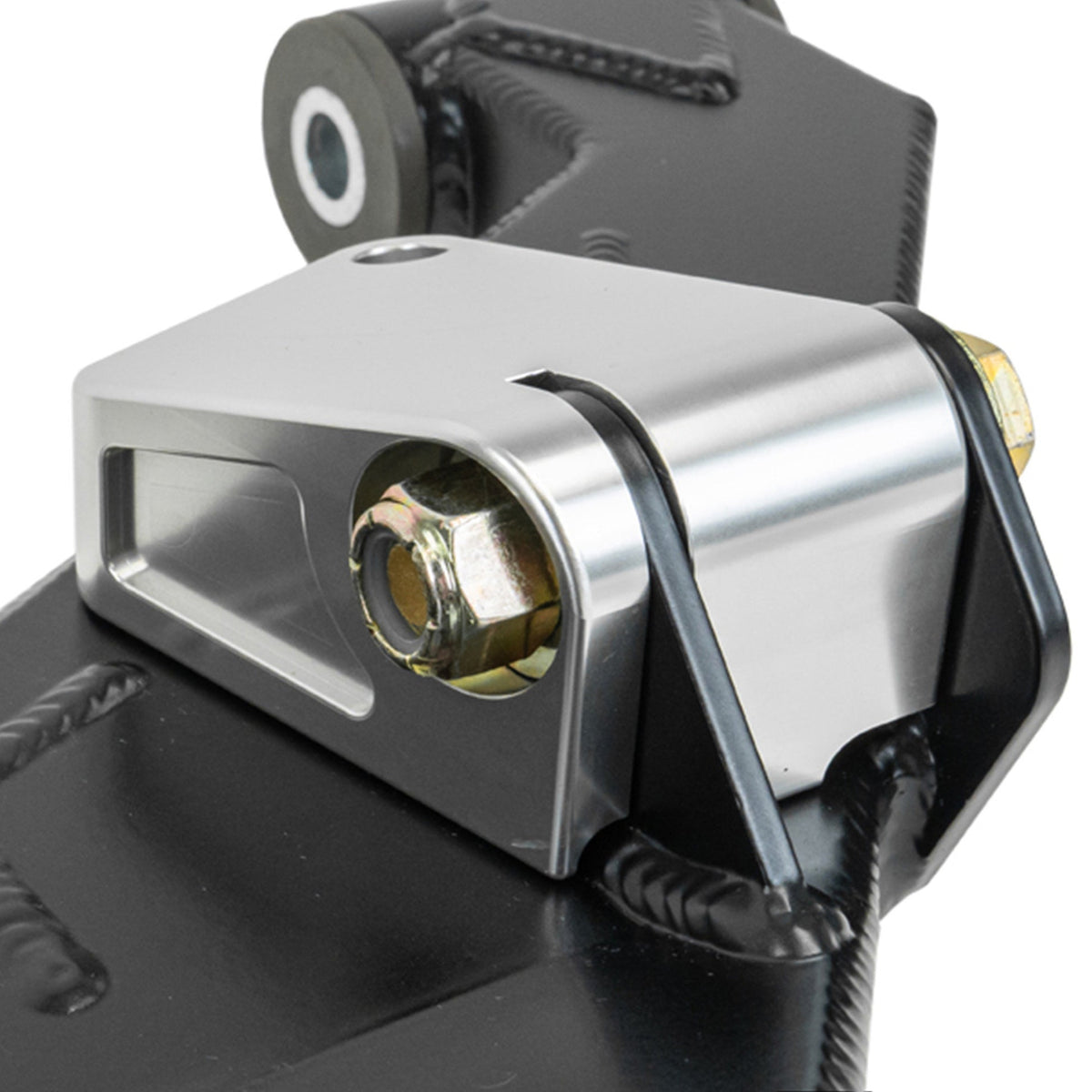

- Billet bump-stop strike pad
- Zinc-plated washers
- Installation instructions
Vehicle fitment
- 2005–2023 Toyota Tacoma — 2WD and 4WD
Designed for OEM and Dirt King components. Contact the other component manufacturer before combining this kit with parts from another brand.
Ships directly from the supplier.
Compatibility warnings
- This product is designed to pair with OEM and Dirt King parts. Compatibility with other brands must be approved by the respective manufacturer.
Part numbers and configurations
| Configuration | Part number | Price |
|---|---|---|
| 05-15 Tacoma — 2WD | DK-811928 | $3,499.00 |
| 05-15 Tacoma — 4WD w/ 4340 Axle Shafts & Diff Drop (+$649) | DK-811928 + DK-811948C | $4,148.00 |
| 05-15 Tacoma — 4WD w/ 300M Axle Shafts & Diff Drop (+$899) | DK-811928 + DK-811748A | $4,398.00 |
| 05-15 Tacoma — 4WD w/ 4340 Complete Axle Assemblies & Diff Drop ($1699) | DK-811928 + DK-811975C | $5,198.00 |
| 05-15 Tacoma — 4WD w/ 300M Complete Axle Assemblies & Diff Drop ($1949) | DK-811928 + DK-811775A | $5,448.00 |
| 16-23 Tacoma — 2WD | DK-813928 | $3,499.00 |
| 16-23 Tacoma — 4WD w/ 4340 Axle Shafts & Diff Drop (+$649) | DK-813928 + DK-811948C | $4,148.00 |
| 16-23 Tacoma — 4WD w/ 300M Axle Shafts & Diff Drop (+$899) | DK-813928 + DK-811748A | $4,398.00 |
| 16-23 Tacoma — 4WD w/ 4340 Complete Axle Assemblies & Diff Drop ($1699) | DK-813928 + DK-811975C | $5,198.00 |
| 16-23 Tacoma — 4WD w/ 300M Complete Axle Assemblies & Diff Drop ($1949) | DK-813928 + DK-811775A | $5,448.00 |
Manufacturer Warranty
Mfgr. Warranty: Terms vary by manufacturer and part
A written warranty duration has not been verified for this specific part. Ask Baja Racing Parts for the applicable manufacturer terms before purchase.
Baja Racing Parts is the retailer. Manufacturer claims follow the applicable warranty process. We can help identify the right contact and start your claim. Your legal rights remain applicable.
See our Warranty Policy or email sales@bajaracingparts.com for assistance.
