Dirt King +2" Long Travel Kit | 2003–2024 Toyota 4Runner / 2007–2014 Toyota FJ Cruiser
Dirt King +2" Long Travel Kit | 2003–2024 Toyota 4Runner / 2007–2014 Toyota FJ Cruiser
Dirt King
SKU:DK-812928
Couldn't load pickup availability
Overview
The Dirt King +2-inch long travel kit increases track width by 2 inches per side and provides more than 25% additional suspension travel while retaining daily driving comfort. With zero or positive offset wheels and 33-inch tires, the system can work with stock fenders. Zero or negative offset wheels and 35-inch tires require flared fenders.
SilentSpin upper-arm bushings, PTFE-infused Delrin lower-arm bushings, heavy-duty Moog ball joints and replaceable aluminum lower-arm skid plates provide durable, low-maintenance suspension pivots. The arms support coilovers alone, coilovers with bypass shocks, or coilovers with bump stops.
Vehicle fitment
- 2003–2024 Toyota 4Runner — 2WD or 4WD
- 2007–2014 Toyota FJ Cruiser — 2WD or 4WD
Not compatible with KDSS-equipped vehicles.
Features
- Widens the front track 2 inches per side
- Provides more than 25% additional suspension travel
- Supports stock fenders with suitable positive-offset wheels and 33-inch tires
- Supports 35-inch tires with the required wheel offset and flared fenders
- Greaseless SilentSpin upper-control-arm bushings
- PTFE-infused Delrin lower-control-arm bushings
- Heavy-duty Moog ball joints

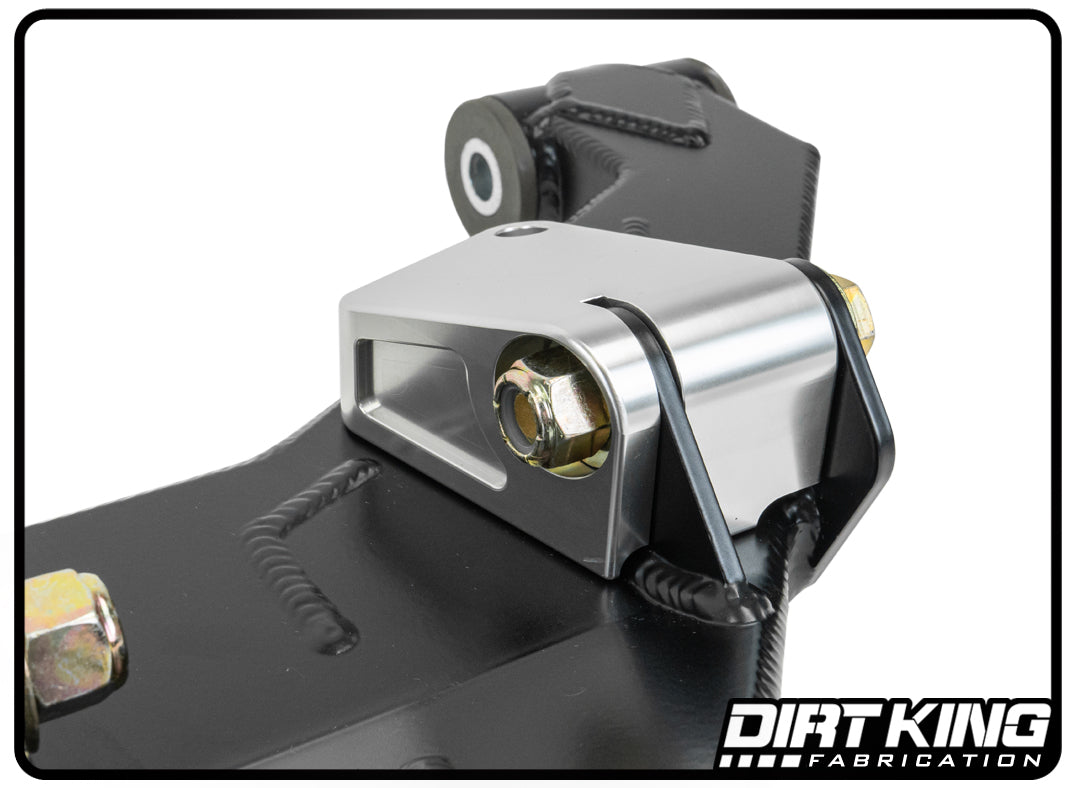

- Replaceable aluminum lower-arm skid plates
- Coilover, bypass-shock and bump-stop mounting provisions
- Made in the USA
Specifications
- Wheel travel
- More than 25% increase
- Lift range
- 0–3.5 inches
- Track width
- 2 inches wider per side
- Maximum tire size
- 35 inches
- Maximum backspacing
- 4.75 inches
- Minimum wheel size
- 16 inches
- Coilover and bypass shock size
- Dirt King spec
- Bump-stop size
- 2.0 × 2.0 inches

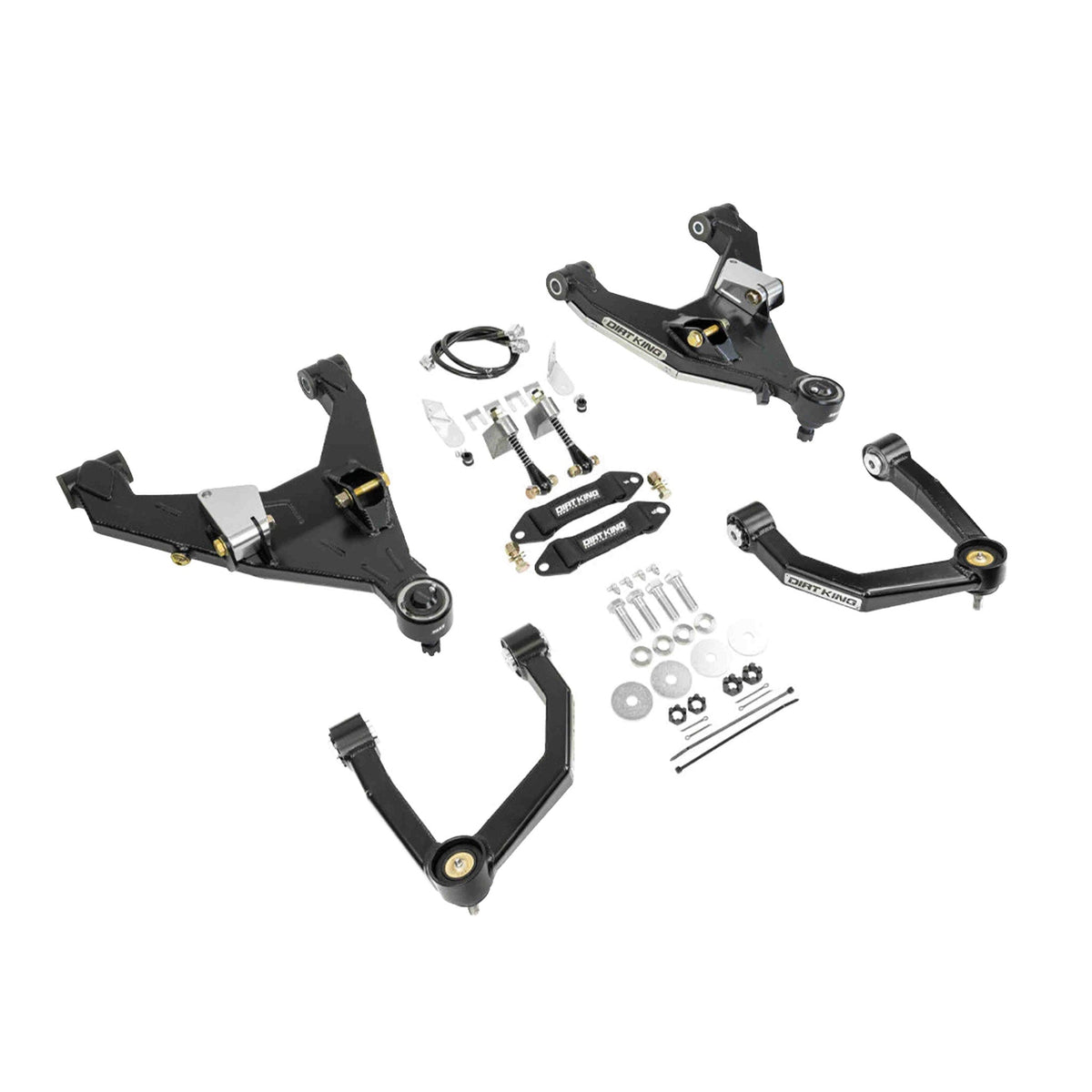

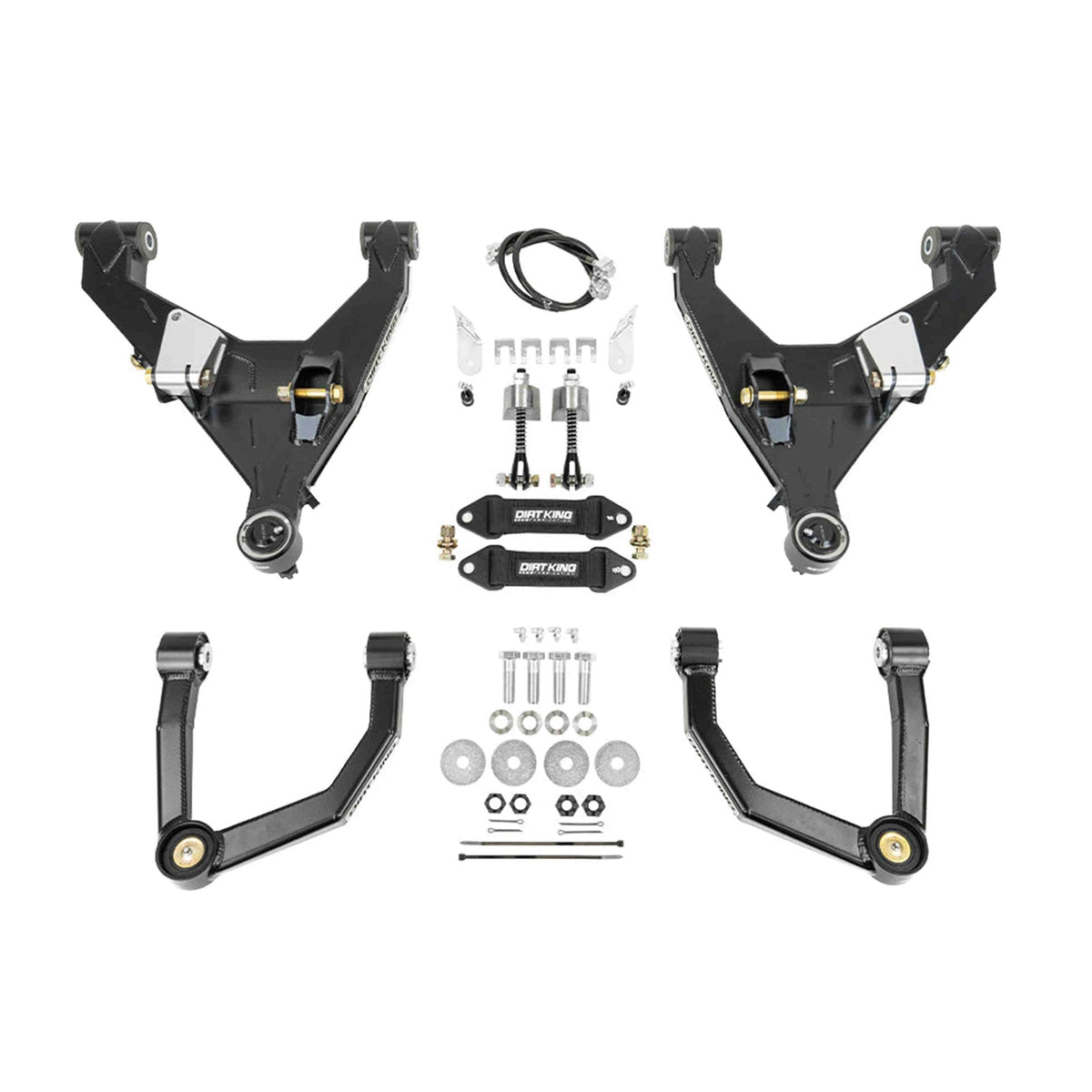

What's included
- Boxed plate upper control arms
- Boxed plate lower control arms

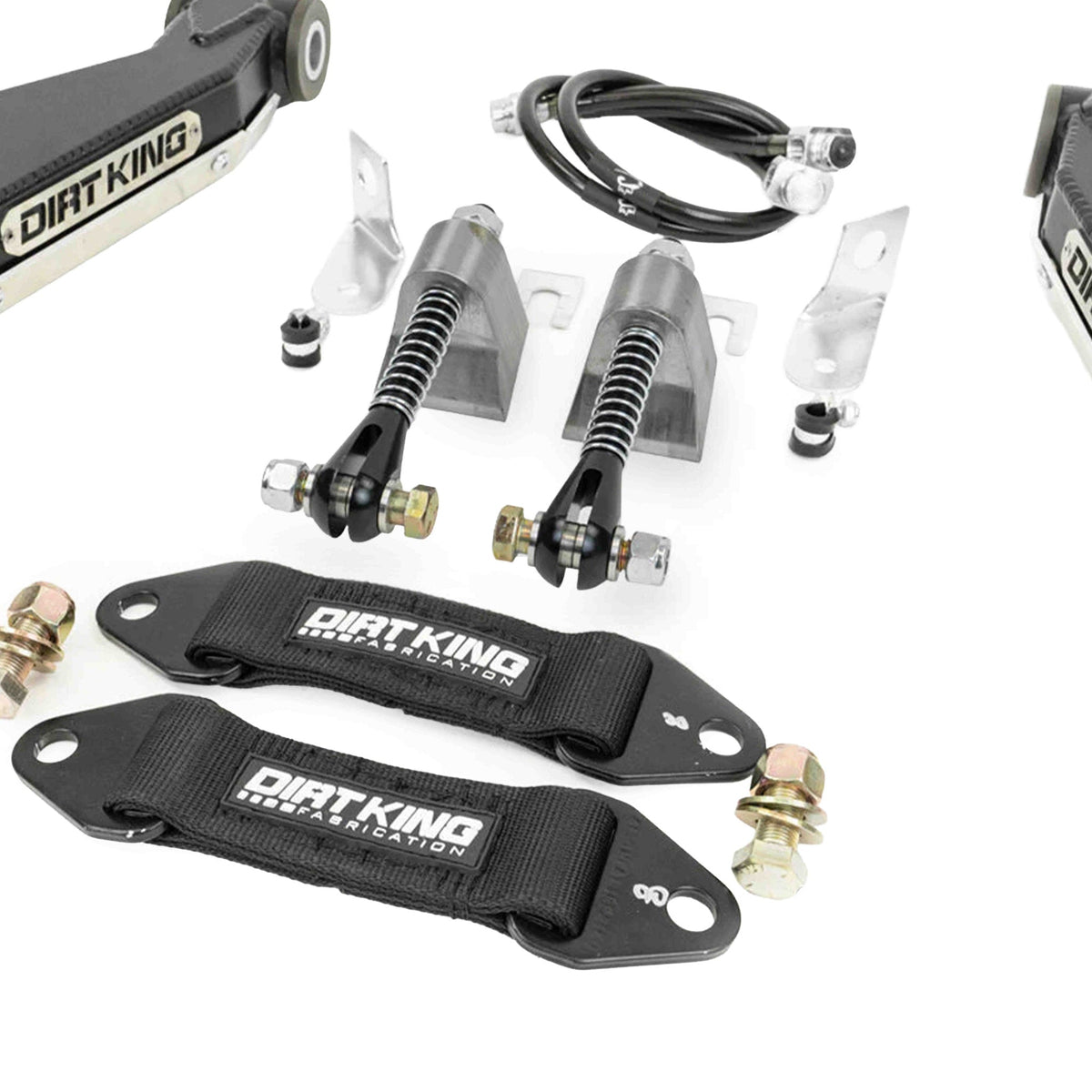

- 8-inch quad-wrapped limit straps
- Weld-on adjustable limit-strap mounts
- 17-4 stainless-steel tie-rod extensions
- DOT-approved extended brake lines
- Grade 8 mounting hardware
- Billet-aluminum bump-stop strike pads
- Zinc-plated bushing washers
- Installation instructions
Installation notes
To achieve full travel on 4WD models, install the included 1-inch differential-drop component and use the axle configuration selected above. Shock choice and mounting affect available wheel travel. Bypass-shock hoops and bump-stop mounting require welding and frame modifications.
Ships directly from the supplier.
Compatibility warnings
- This product is designed to pair with OEM and Dirt King parts. Compatibility with other brands must be approved by the respective manufacturer.
Part numbers and configurations
| Configuration | Part number | Price |
|---|---|---|
| 03-09 4Runner — 2WD | DK-812928 | $3,499.00 |
| 03-09 4Runner — 4WD w/ 4340 Axle Shafts & Diff Drop (+$649) | DK-812928 + DK-812948C | $4,148.00 |
| 03-09 4Runner — 4WD w/ 300M Axle Shafts & Diff Drop (+$899) | DK-812928 + DK-812748A | $4,398.00 |
| 03-09 4Runner — 4WD w/ 4340 Complete Axle Assemblies & Diff Drop (+$1699) | DK-812928 + DK-812975C | $5,198.00 |
| 03-09 4Runner — 4WD w/ 300M Complete Axle Assemblies & Diff Drop (+$1949) | DK-812928 + DK-812775C | $5,448.00 |
| 07-09 FJ Cruiser — 2WD | DK-812928 | $3,499.00 |
| 07-09 FJ Cruiser — 4WD w/ 4340 Axle Shafts & Diff Drop (+$649) | DK-812928 + DK-812948C | $4,148.00 |
| 07-09 FJ Cruiser — 4WD w/ 300M Axle Shafts & Diff Drop (+$899) | DK-812928 + DK-812748A | $4,398.00 |
| 07-09 FJ Cruiser — 4WD w/ 4340 Complete Axle Assemblies & Diff Drop (+$1699) | DK-812928 + DK-812975C | $5,198.00 |
| 07-09 FJ Cruiser — 4WD w/ 300M Complete Axle Assemblies & Diff Drop (+$1949) | DK-812928 + DK-812775C | $5,448.00 |
| 10-24 4Runner — 2WD | DK-814928 | $3,499.00 |
| 10-24 4Runner — 4WD w/ 4340 Axle Shafts & Diff Drop (+$649) | DK-814928 + DK-812948C | $4,148.00 |
| 10-24 4Runner — 4WD w/ 300M Axle Shafts & Diff Drop (+$899) | DK-814928 + DK-812748A | $4,398.00 |
| 10-24 4Runner — 4WD w/ 4340 Complete Axle Assemblies & Diff Drop (+$1699) | DK-814928 + DK-812975C | $5,198.00 |
| 10-24 4Runner — 4WD w/ 300M Complete Axle Assemblies & Diff Drop (+$1949) | DK-814928 + DK-812775C | $5,448.00 |
| 10-14 FJ Cruiser — 2WD | DK-814928 | $3,499.00 |
| 10-14 FJ Cruiser — 4WD w/ 4340 Axle Shafts & Diff Drop (+$649) | DK-814928 + DK-812948C | $4,148.00 |
| 10-14 FJ Cruiser — 4WD w/ 300M Axle Shafts & Diff Drop (+$899) | DK-814928 + DK-812748A | $4,398.00 |
| 10-14 FJ Cruiser — 4WD w/ 4340 Complete Axle Assemblies & Diff Drop (+$1699) | DK-814928 + DK-812975C | $5,198.00 |
| 10-14 FJ Cruiser — 4WD w/ 300M Complete Axle Assemblies & Diff Drop (+$1949) | DK-814928 + DK-812775C | $5,448.00 |
Manufacturer Warranty
Mfgr. Warranty: Terms vary by manufacturer and part
A written warranty duration has not been verified for this specific part. Ask Baja Racing Parts for the applicable manufacturer terms before purchase.
Baja Racing Parts is the retailer. Manufacturer claims follow the applicable warranty process. We can help identify the right contact and start your claim. Your legal rights remain applicable.
See our Warranty Policy or email sales@bajaracingparts.com for assistance.
