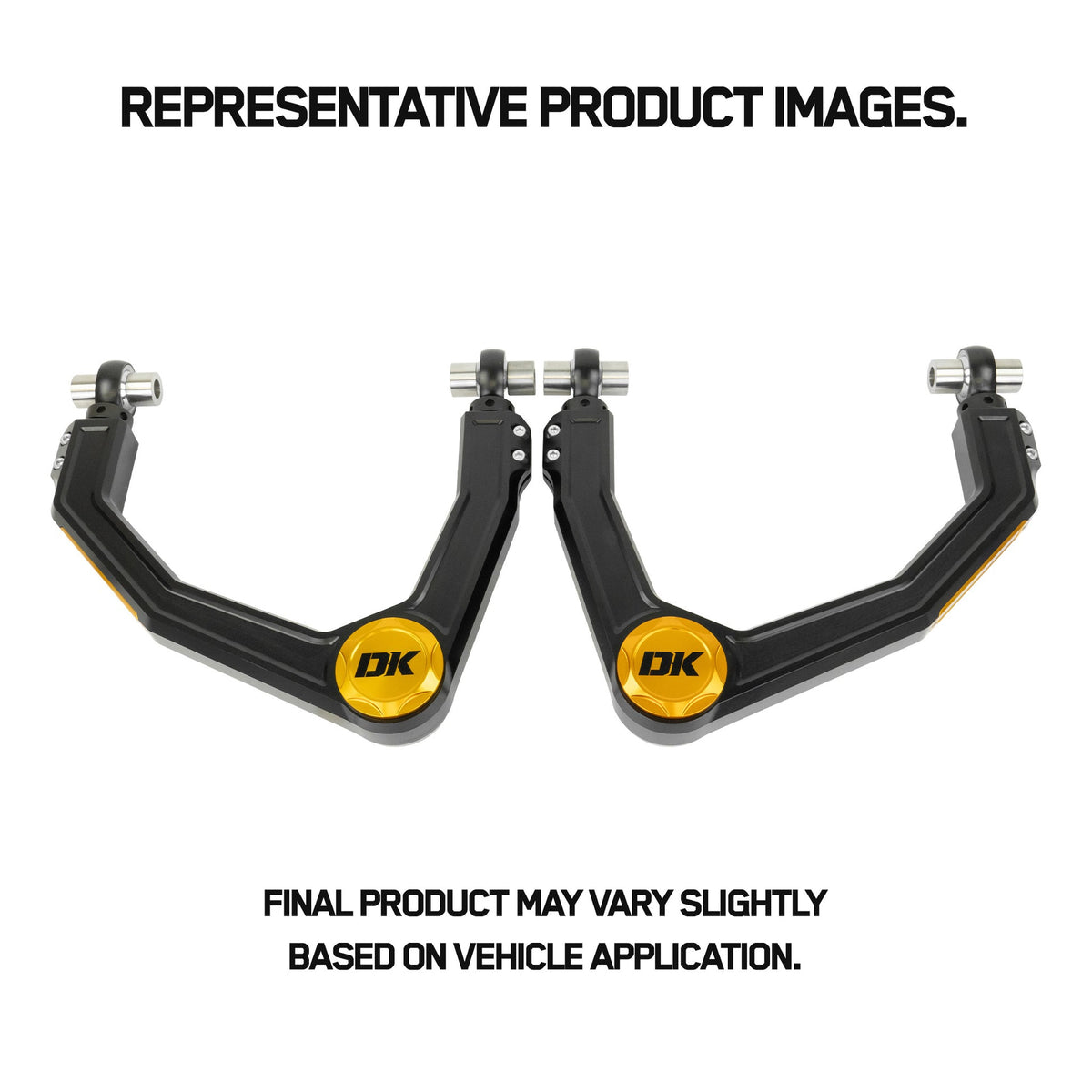

• Dirt King Billet Heim Upper Control Arms – view 1

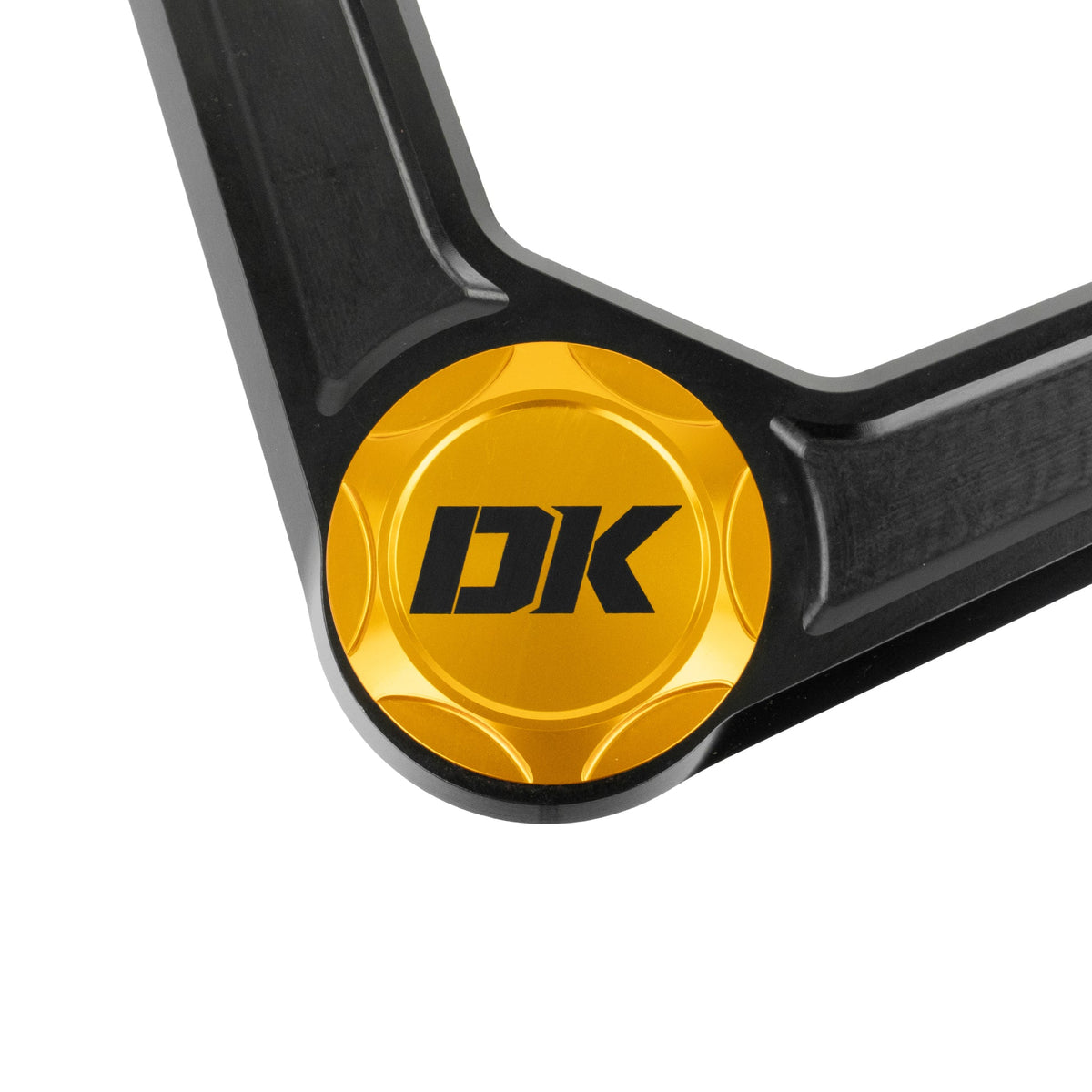

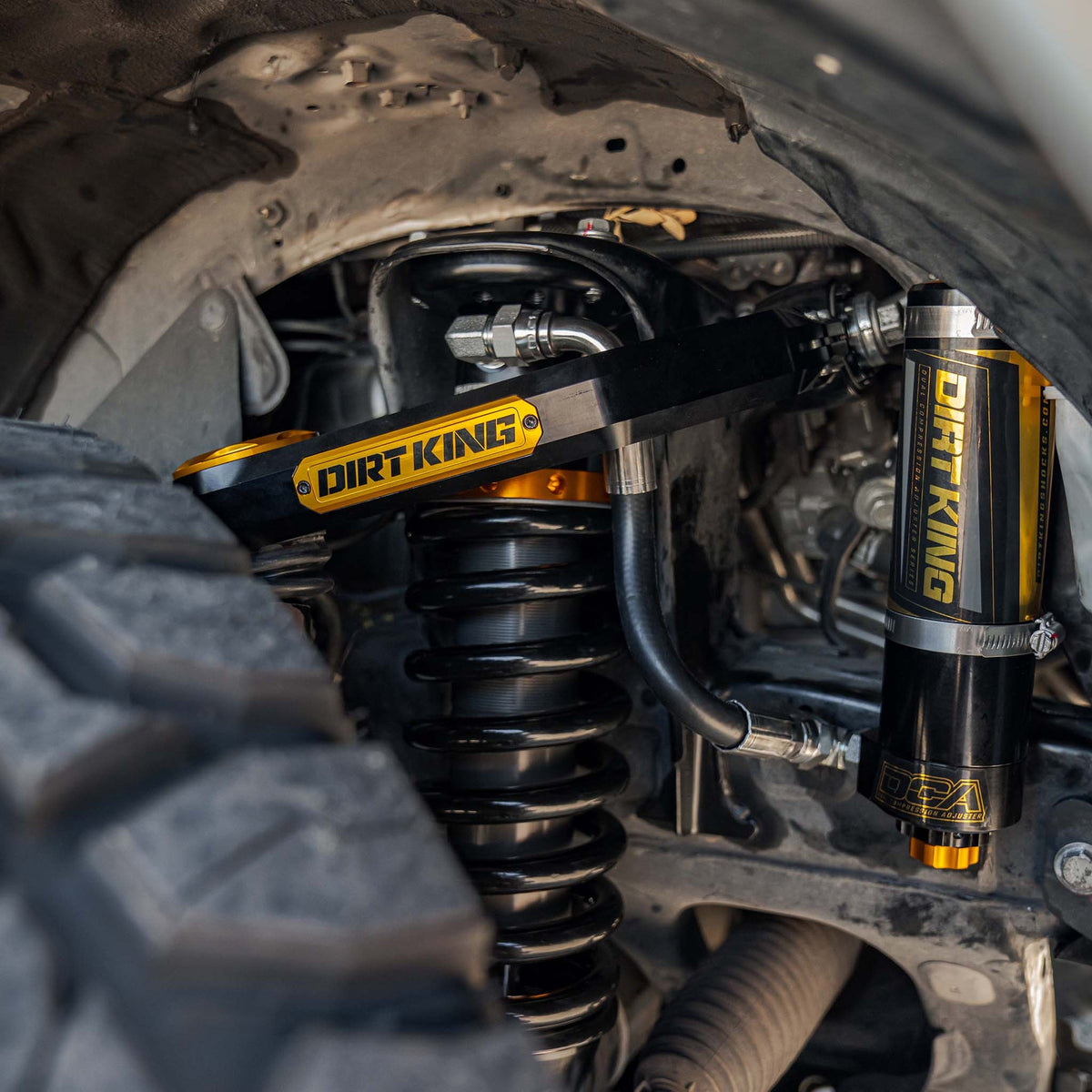

  • Toyota 4Runner with Dirt King suspension

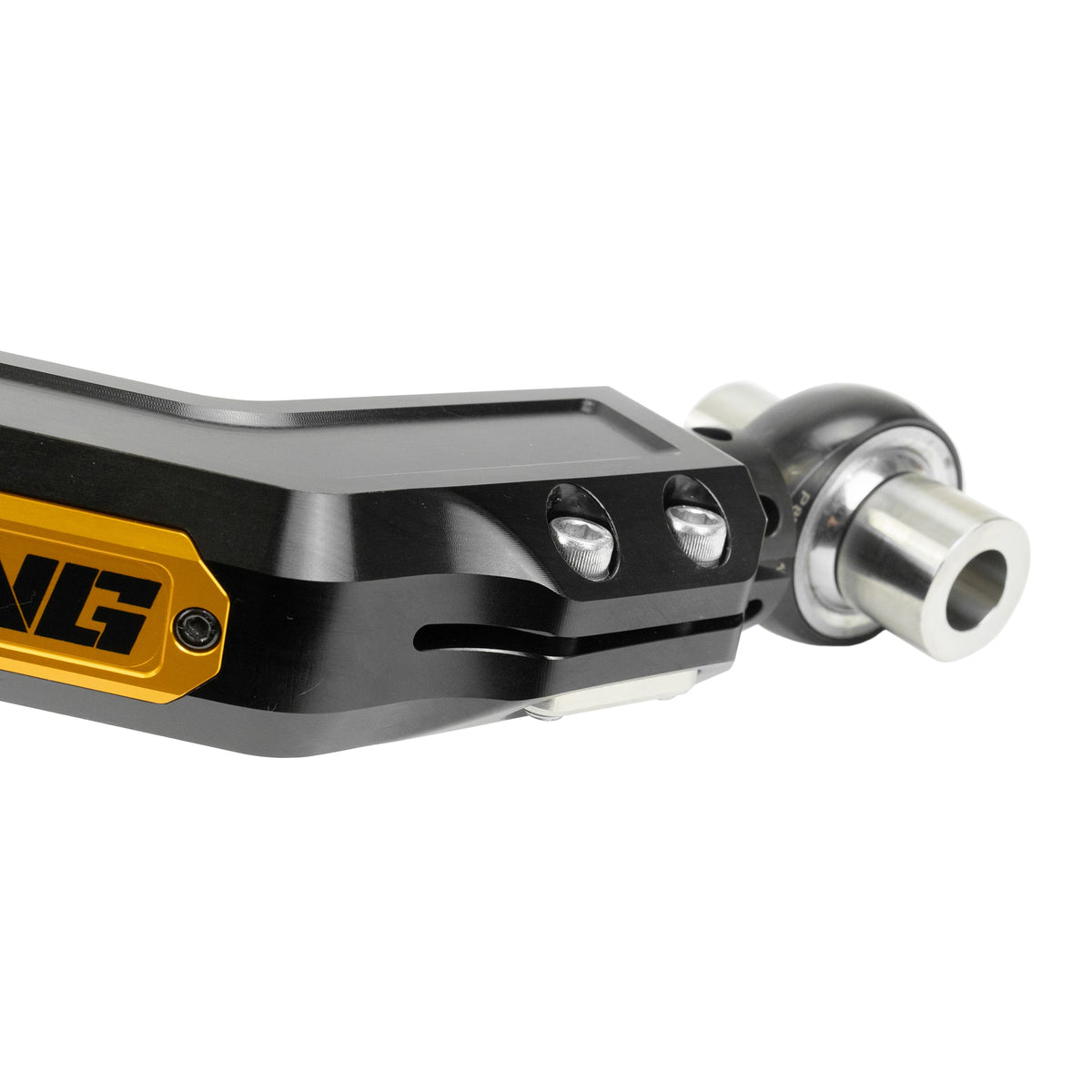

  • Dirt King Billet Heim Upper Control Arms – view 2
  • Dirt King Billet Heim Upper Control Arms – view 3

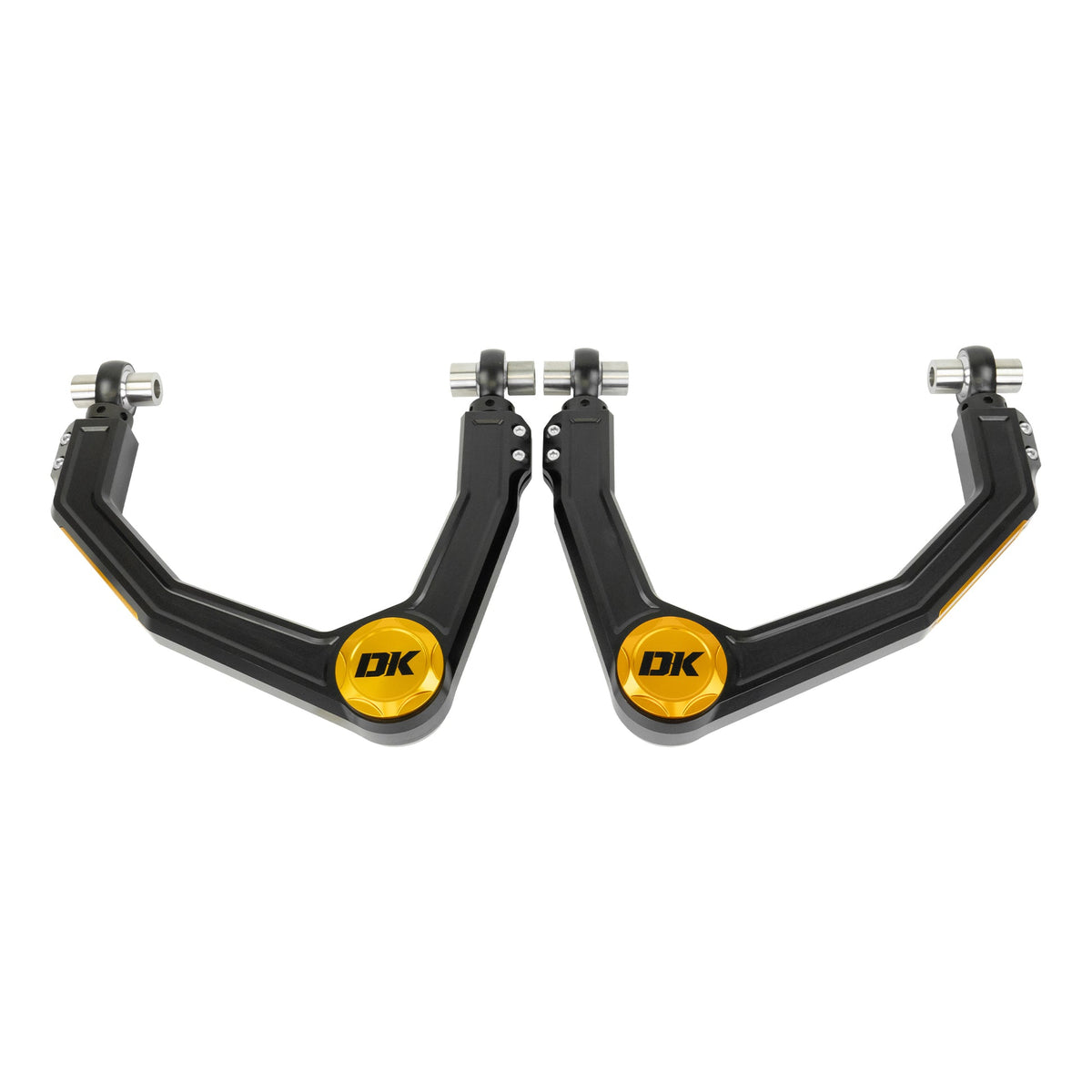

  • Dirt King Billet Heim Upper Control Arms – view 4

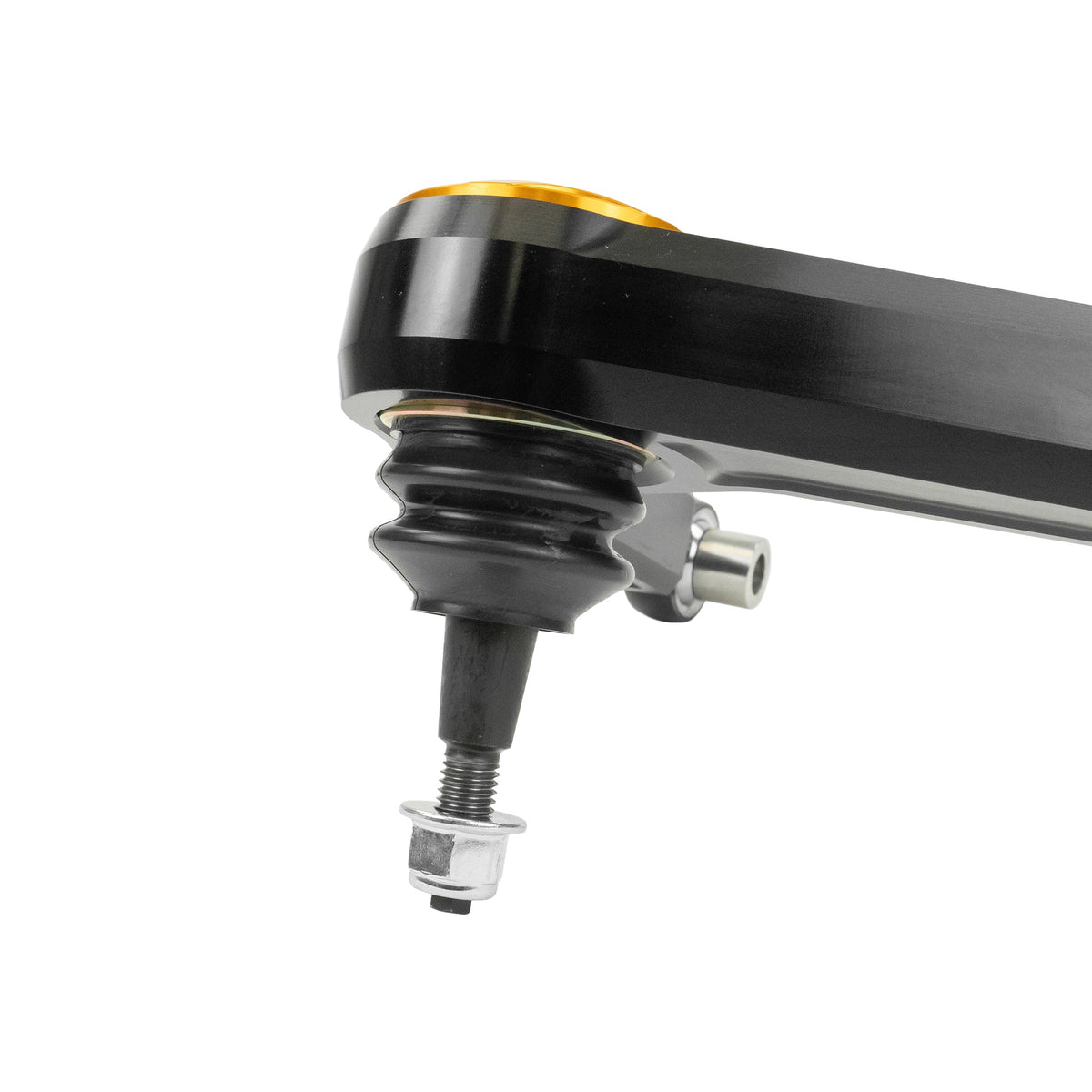

  • Dirt King Billet Heim Upper Control Arms – view 5

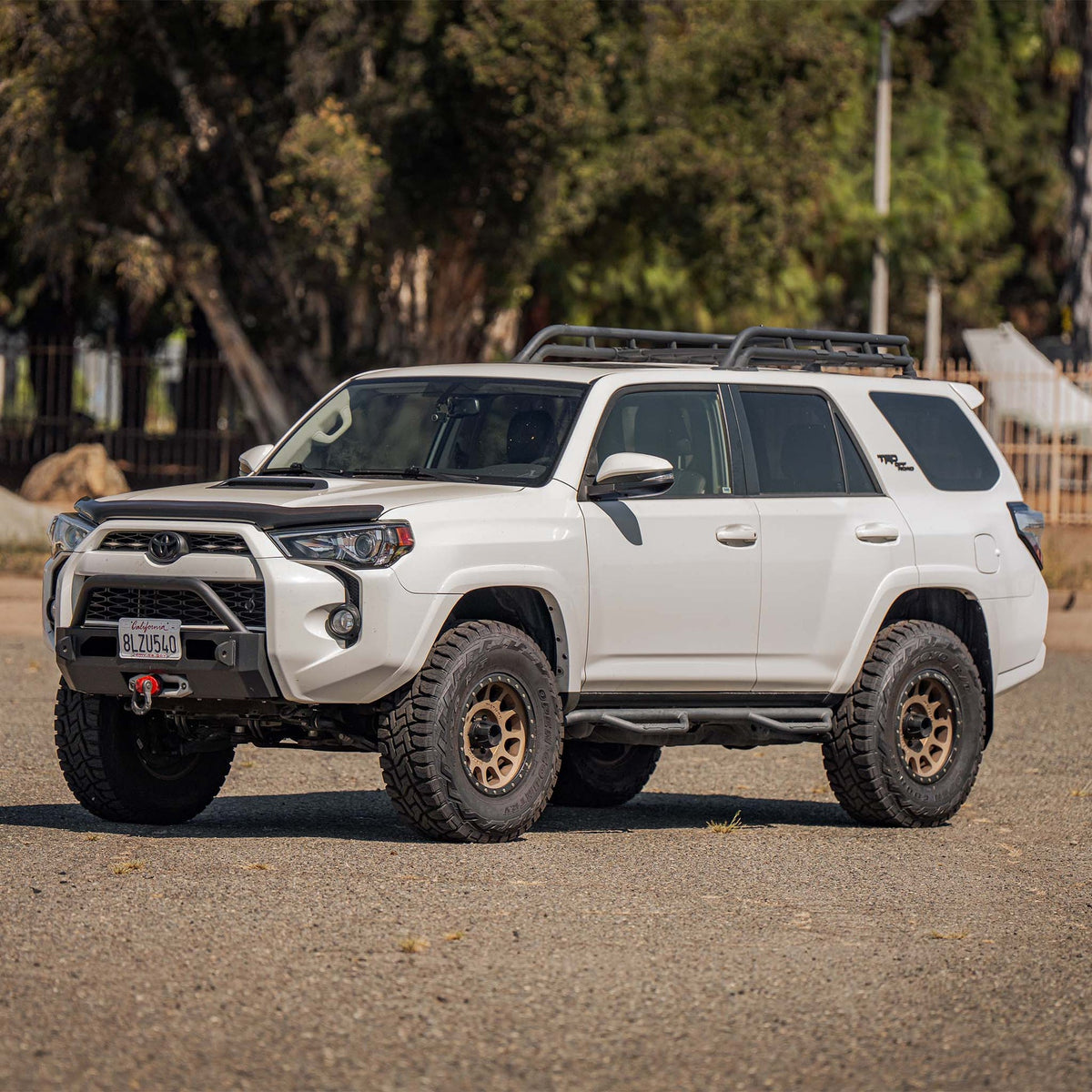

  • Dirt King Billet Heim Upper Control Arms – installed view 1

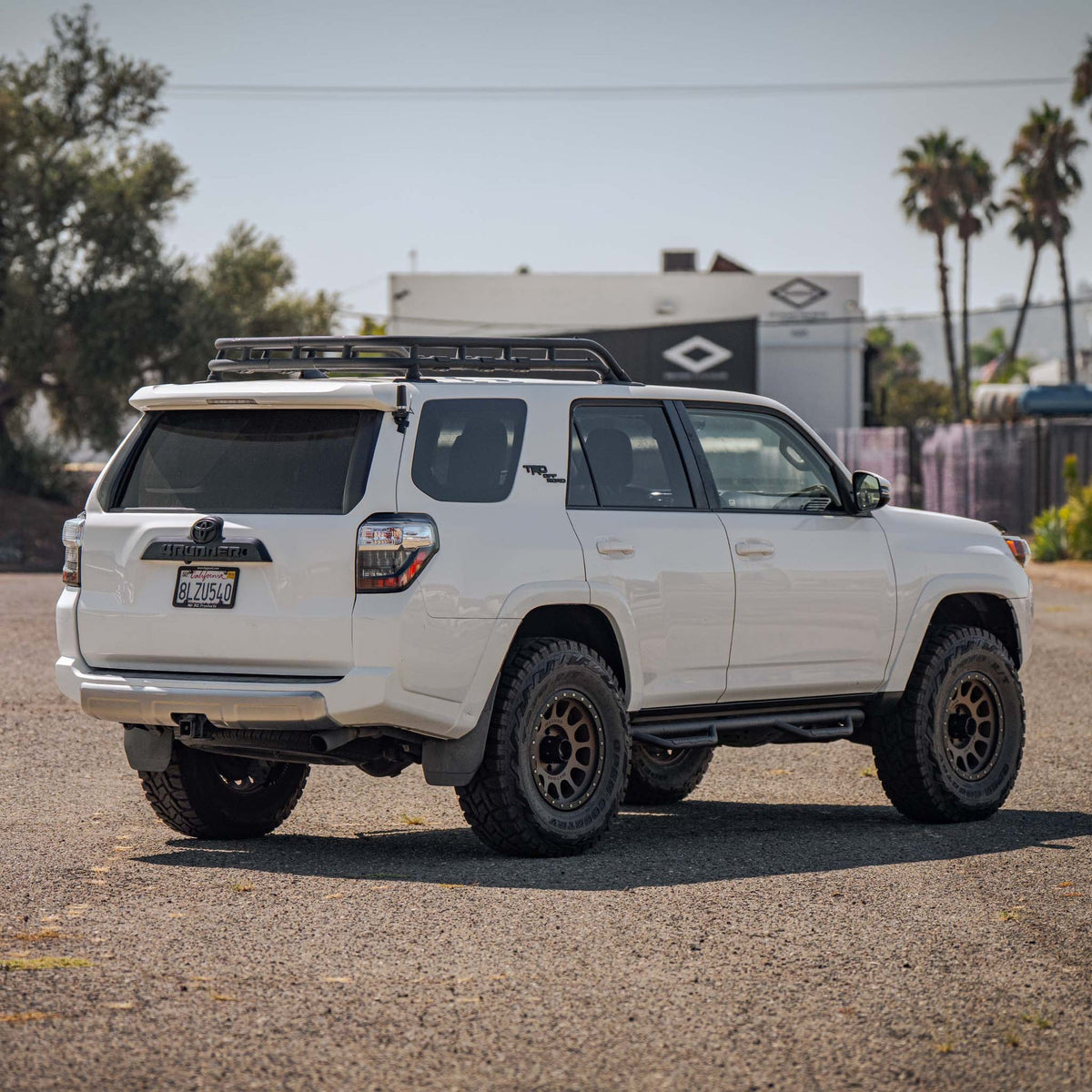

  • Dirt King Billet Heim Upper Control Arms – installed view 2

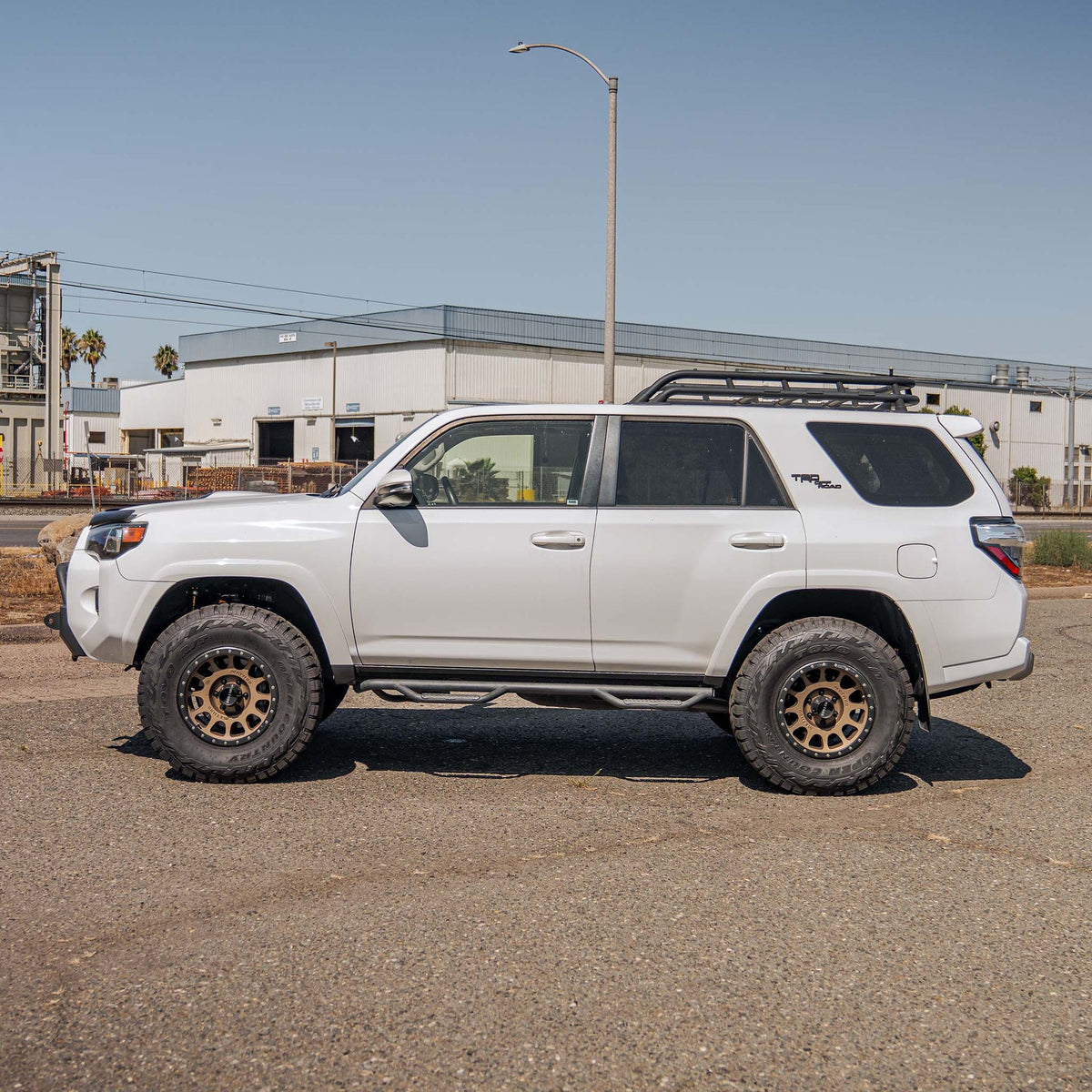

  • Dirt King Billet Heim Upper Control Arms – installed view 3
1 9

Dirt King Billet Heim Upper Control Arms | 2003–2024 Toyota 4Runner / 2007–2014 Toyota FJ Cruiser

Dirt King Billet Heim Upper Control Arms | 2003–2024 Toyota 4Runner / 2007–2014 Toyota FJ Cruiser

Dirt King

$1,376.55 USD
$1,449.00 USD $1,376.55 USD
Sale Sold out
Shipping calculated and invoiced after checkout.

DK-812923A-BK

Overview

Dirt King Billet Heim Upper Control Arms are precision-machined from 6061 aluminum and use revised caster and pivot geometry to improve handling and suspension articulation. The adjustable inner pivots use ¾-inch chromoly rod ends with threaded adjustment sleeves for precise camber and caster adjustment while the arms remain installed. Heavy-duty Probearing ball joints are pre-installed, and all wear components are rebuildable or replaceable.

Ships directly from the supplier.

Features

  • CAD-designed 6061 billet-aluminum construction
  • Improved caster and re-engineered pivot angles
  • Adjustable ¾-inch chromoly rod ends
  • Heavy-duty Probearing ball joints
  • Fully rebuildable and serviceable components
  • Compatible with suitable Dirt King, King, Fox, Bilstein, ADS and Icon coilovers

Specifications

Lift range
0–3 inches with suitable aftermarket coilovers
Track width
Stock
Maximum backspacing
4.75 inches
Minimum wheel size
16 inches
Control-arm material
6061 aluminum
Inner pivots
Probearing ¾-inch chromoly rod ends with adjustment sleeves
Ball joints
Heavy-duty Probearing

What's included

  • Two billet upper control arms
  • Pre-installed heavy-duty Probearing ball joints
  • ¾-inch rod ends
  • Upper-control-arm bolts
  • Ball-joint caps
  • Dirt King sticker pack

Vehicle fitment

  • 2003–2024 Toyota 4Runner 2WD / 4WD
  • 2007–2014 Toyota FJ Cruiser

Compatibility warnings

  • This product is designed to pair with OEM and Dirt King parts. Compatibility with other brands must be approved by the respective manufacturer.
  • Do not install these upper control arms with coil spacers paired with extended-length aftermarket shocks.

Part numbers and configurations

Configuration Part number Price
Black Anodize — Black DK-812923A-BK $1,376.55
Black Anodize — Blue DK-812923A-BL $1,376.55
Black Anodize — Bronze DK-812923A-BZ $1,376.55
Black Anodize — Clear DK-812923A-CL $1,376.55
Black Anodize — Gold DK-812923A-GD $1,376.55
Black Anodize — Orange DK-812923A-OR $1,376.55
Black Anodize — Purple DK-812923A-PR $1,376.55
Black Anodize — Red DK-812923A-RD $1,376.55
Clear Anodize — Black DK-812923C-BK $1,376.55
Clear Anodize — Blue DK-812923C-BL $1,376.55
Clear Anodize — Bronze DK-812923C-BZ $1,376.55
Clear Anodize — Clear DK-812923C-CL $1,376.55
Clear Anodize — Gold DK-812923C-GD $1,376.55
Clear Anodize — Orange DK-812923C-OR $1,376.55
Clear Anodize — Purple DK-812923C-PR $1,376.55
Clear Anodize — Red DK-812923C-RD $1,376.55
Manufacturer Warranty

Dirt King warranty: Dirt King lists a limited lifetime warranty on the control arms and a one-year warranty on the ball joints and rod ends, subject to its written terms and exclusions.

Baja Racing Parts is the retailer. Manufacturer claims follow Dirt King’s warranty process. We can help identify the required information and start your claim.

See our Warranty Policy or email sales@bajaracingparts.com for assistance.
