Billet Upper Control Arms
Billet Upper Control Arms
Dirt King
SKU:DK-815923B-GD
Couldn't load pickup availability
Overview

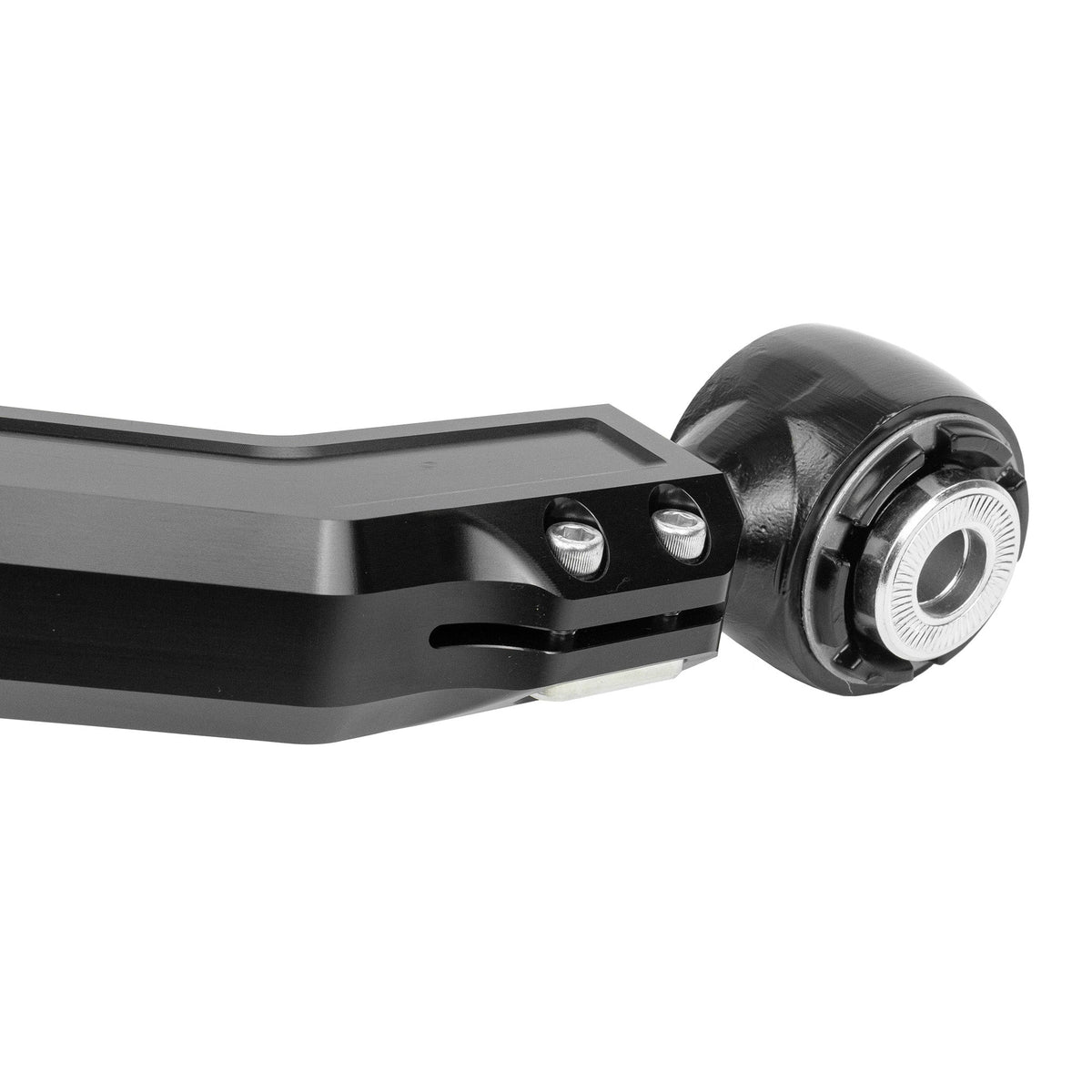

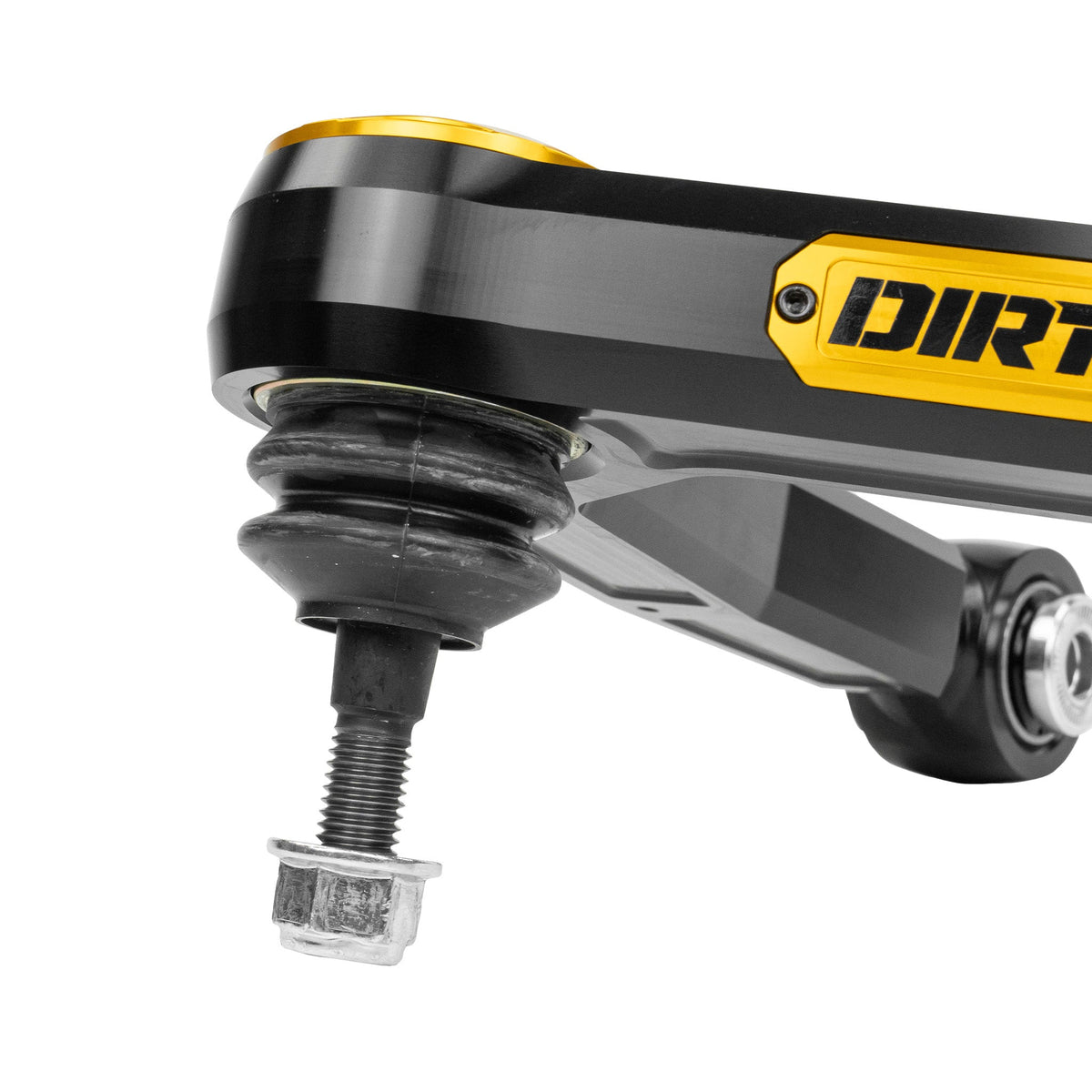

Dirt King Billet Upper Control Arms are precision-machined from 6061 aluminum for strength and a refined appearance. Revised caster settings and pivot angles improve handling and articulation, while the adjustable inner pivot system allows camber and caster changes with the arms installed. The current selectable configurations use maintenance-free Probearing SilentSpin bushings with a polyurethane outer layer for noise damping and a self-lubricating composite core. Heavy-duty Probearing ball joints are pre-installed.
Specifications
- Lift range: 0–3 inches when paired with appropriate aftermarket coilovers
- Track width: Stock
- Maximum backspacing: 5.75 inches
- Control arm material: 6061 aluminum
- Bushings: Probearing SilentSpin, maintenance-free and self-lubricating
- Ball joints: Heavy-duty Probearing
- Camber and caster adjustable: Yes
- Rebuildable: Yes; components are serviceable or replaceable
These upper control arms must be paired with aftermarket coilover shocks to lift the vehicle. They are compatible with Dirt King, King, Fox, Bilstein, ADS and Icon coilovers. Do not combine these control arms with coil spacers and extended-length aftermarket shocks.
What's included
- Two billet upper control arms, left and right
- Pre-installed heavy-duty Probearing ball joints
- Probearing SilentSpin bushings
- Installation hardware
- Installation instructions
Features
- CAD designed
- Precision-machined 6061 aluminum construction
- Improved caster settings and pivot geometry
- Adjustable inner pivots for camber and caster changes
- Maintenance-free SilentSpin bushings
- Heavy-duty Probearing ball joints
- Serviceable and replaceable components
Vehicle fitment

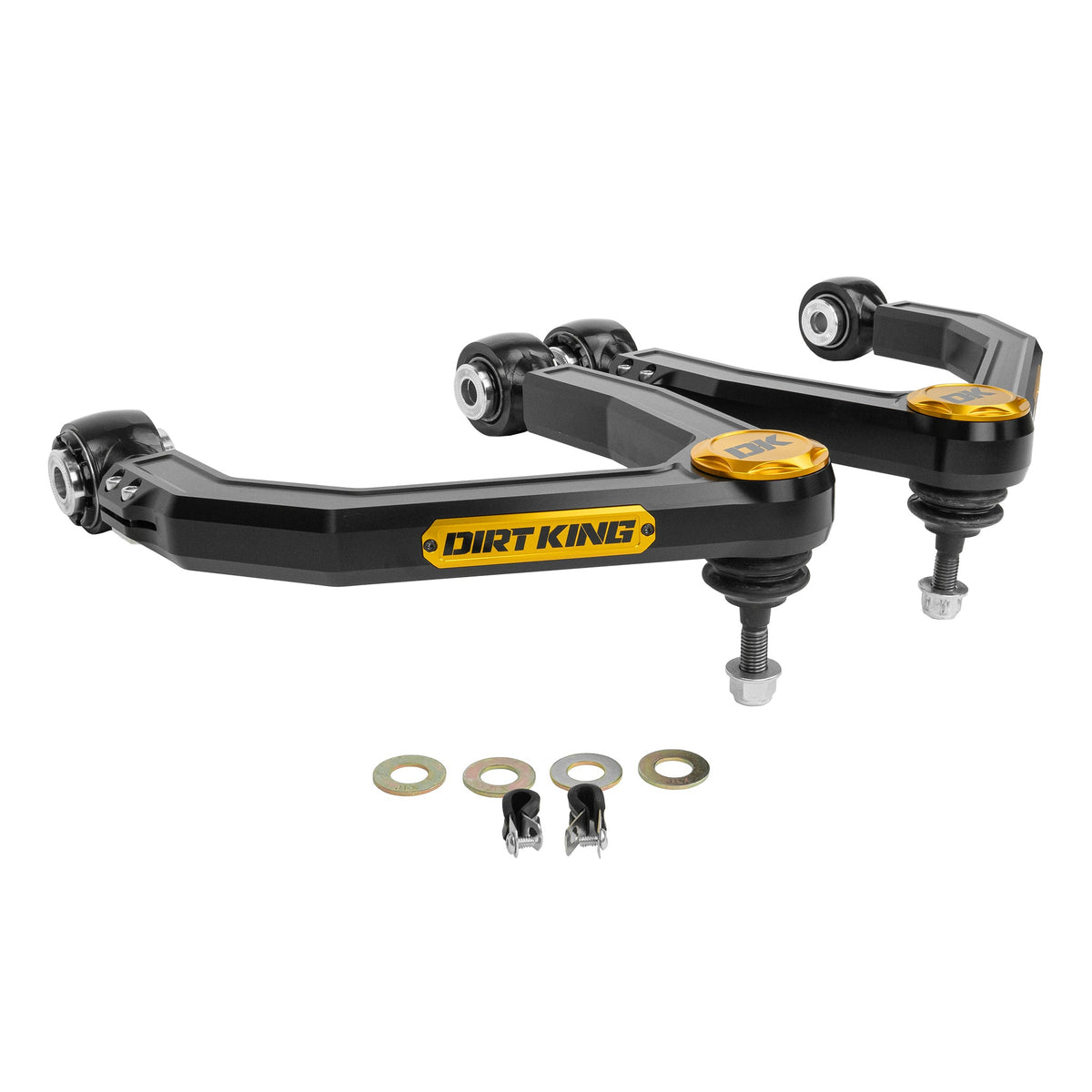

2007–2021 Toyota Tundra, 2WD and 4WD.
This product is designed to pair with OEM and Dirt King parts. Compatibility with other brands must be approved by the respective manufacturer.
Ships directly from the supplier.

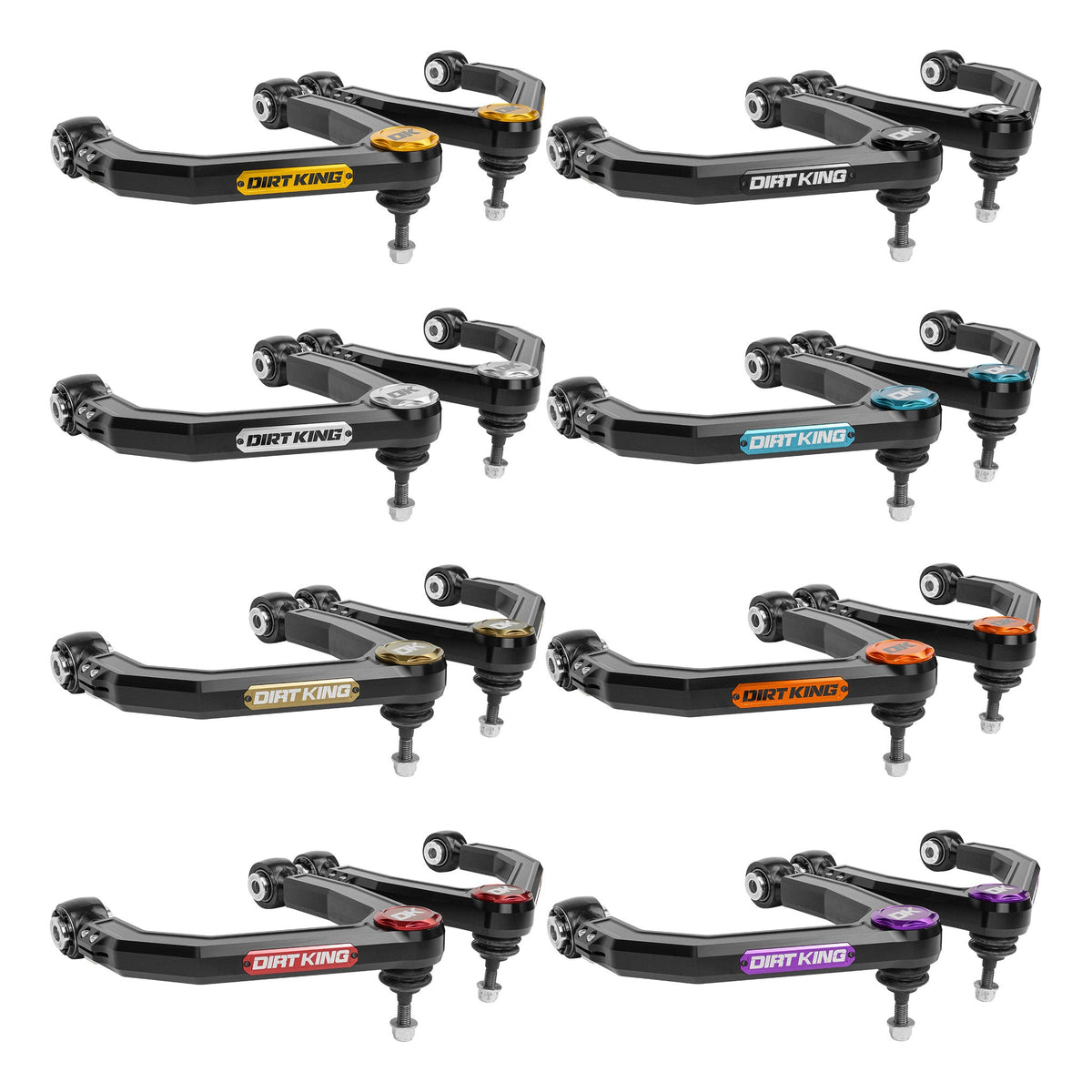

Part numbers and configurations
| Configuration | Part number | Price |
|---|---|---|
| Black Anodize / Gold Anodize | DK-815923B-GD | $1,449.00 |
| Black Anodize / Black Anodize | DK-815923B-BK | $1,449.00 |
| Black Anodize / Clear Anodize | DK-815923B-CL | $1,449.00 |
| Black Anodize / Blue Anodize | DK-815923B-BL | $1,449.00 |
| Black Anodize / Purple Anodize | DK-815923B-PR | $1,449.00 |
| Black Anodize / Red Anodize | DK-815923B-RD | $1,449.00 |
| Black Anodize / Orange Anodize | DK-815923B-OR | $1,449.00 |
| Black Anodize / Bronze Anodize | DK-815923B-BZ | $1,449.00 |
| Clear Anodize / Gold Anodize | DK-815923D-GD | $1,449.00 |
| Clear Anodize / Black Anodize | DK-815923D-BK | $1,449.00 |
| Clear Anodize / Clear Anodize | DK-815923D-CL | $1,449.00 |
| Clear Anodize / Blue Anodize | DK-815923D-BL | $1,449.00 |
| Clear Anodize / Purple Anodize | DK-815923D-PR | $1,449.00 |
| Clear Anodize / Red Anodize | DK-815923D-RD | $1,449.00 |
| Clear Anodize / Orange Anodize | DK-815923D-OR | $1,449.00 |
| Clear Anodize / Bronze Anodize | DK-815923D-BZ | $1,449.00 |
Manufacturer Warranty
Mfgr. Warranty: Terms vary by manufacturer and part
A written warranty duration has not been verified for this specific part. Ask Baja Racing Parts for the applicable manufacturer terms before purchase.
Baja Racing Parts is the retailer. Manufacturer claims follow the applicable warranty process. We can help identify the right contact and start your claim. Your legal rights remain applicable.
See our Warranty Policy or email sales@bajaracingparts.com for assistance.
