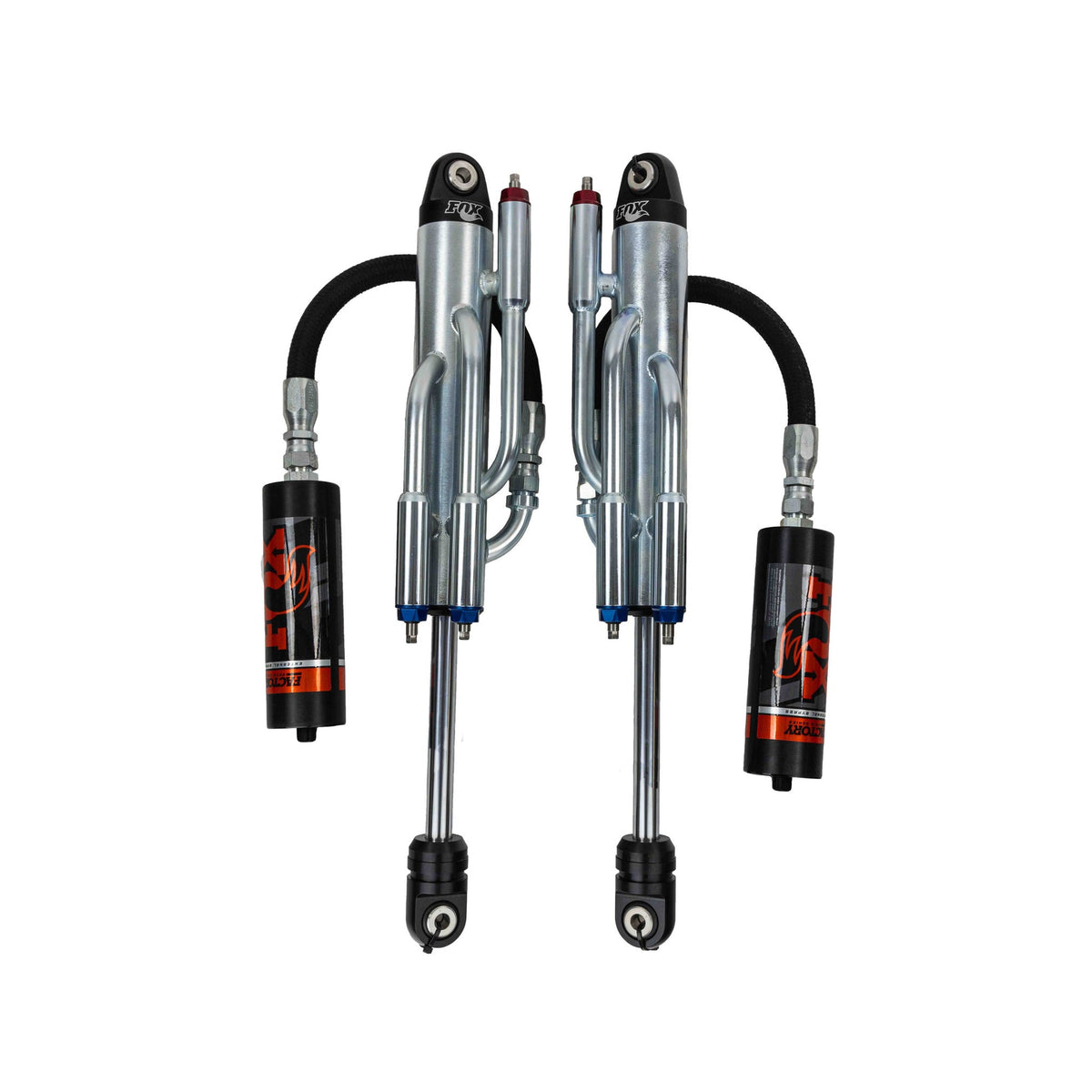

Dirt King FOX 3.0 Long Travel Triple Bypass Shocks | 2019–2026 GM 1500
Dirt King FOX 3.0 Long Travel Triple Bypass Shocks | 2019–2026 GM 1500
Dirt King
SKU:DK-636908-30FSB
Couldn't load pickup availability
Overview
The Dirt King spec bypass shocks were developed specifically for Dirt King's GM long travel kits with a custom tube layout, custom valving, and custom hose lengths. Bypass shocks allow for superior suspension dampening by allowing adjustment of the compression and rebound throughout the shock travel. To fine tune the ride quality a shock tech can quickly make adjustments without removing the shocks from the vehicle. Please note that bypass shocks are noisy due to the steel needle that engages and disengages when fluid bypasses the piston.
Specifications
- Shock Manufacture: Fox
What's included
- Fox spec built shocks with piggyback reservoirs
Features
| Body | Smooth bore and honed seamless alloy body |
|---|---|
| Body Plating | Zinc-plated and double-clear coated for long lasting finish |
| External Reservoir | Smooth bore and honed seamless alloy reservoir |
| Components | Black-anodized, CNC-machined 6061-T6 billet aluminum |
| Shaft | 7/8" hard chrome plated steel shafts |
| Piston | 6061-T6 hard-anodized, high flow aluminum piston |
| Valving | Application specific valving to maximize performance |
| Seals | Redundant sealing pack system main seal, wiper seal, scraper seal |
| Oil | JM92 Advanced Suspension Fluid for improved performance at variable temperatures |
| Bearing | PTFE-lined, heat-treated, alloy steel spherical |
| Mounting | For Dirt King long travel kits only |
| Adjustments | External bypass tubes |
Compatibility
Works with DK-636908-B long travel kit
Ships directly from the supplier.
Part numbers and configurations
| Shock Diameter | Part number |
|---|---|
| 3.0" | DK-636908-30FSB |
Manufacturer Warranty
Mfgr. Warranty: 1-year limited — FOX shock components
FOX shock components have a one-year limited warranty for material and workmanship defects for the original owner when bought new from an authorized source and properly maintained. Wear, abuse, neglect, modifications, collision damage and improper service are excluded; removal and installation labor are not included.
Coverage applies to the identified manufacturer components. Any separate mounts, hardware or other branded parts require their own applicable terms; confirm coverage for the selected configuration before purchase.
