Dirt King Inner Sleeves
Dirt King Inner Sleeves
Dirt King
SKU:DK-IB8901960
Couldn't load pickup availability
Overview

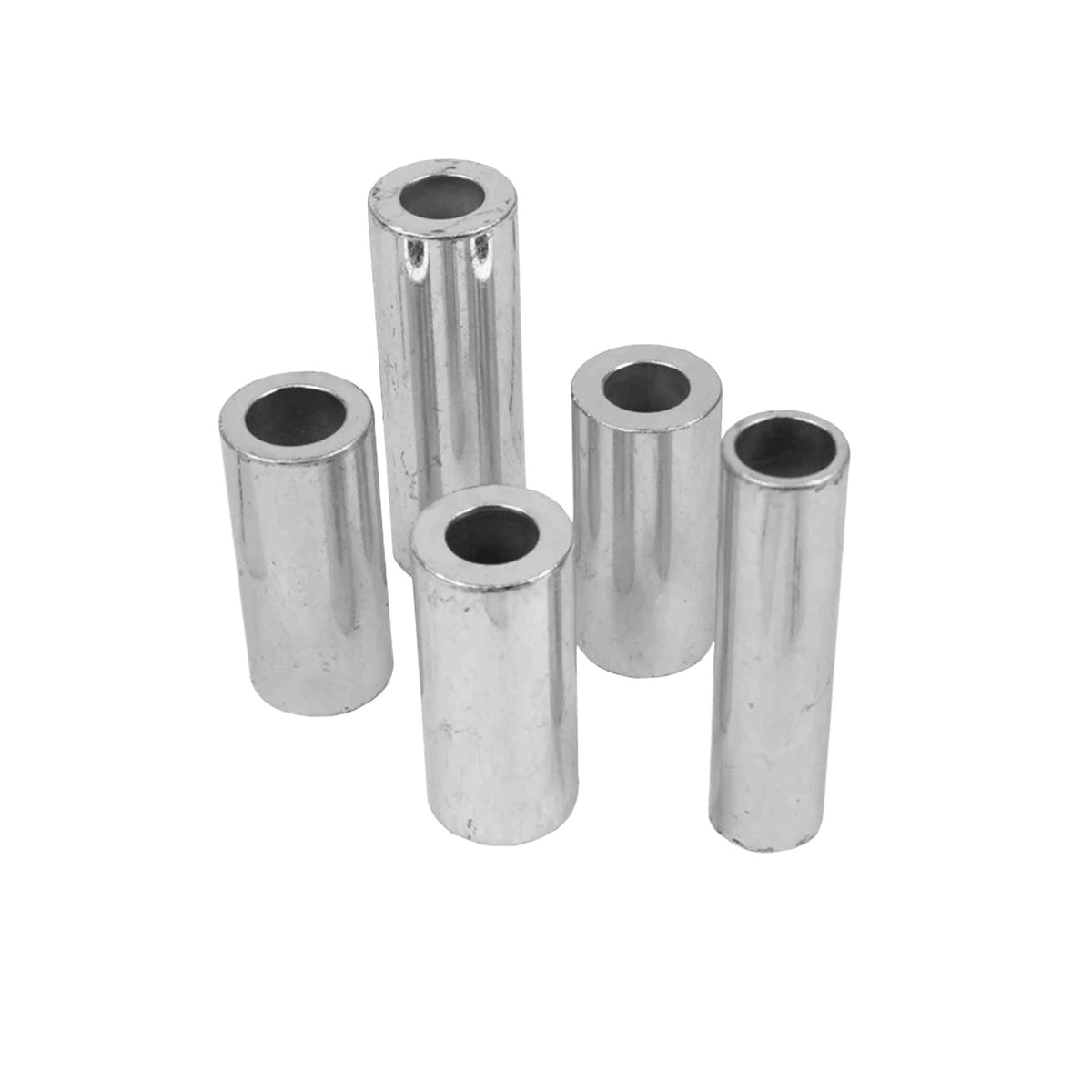

Dirt King inner sleeves are precision-made replacement sleeves for control arm bushings. They provide a durable bearing surface that supports smooth suspension articulation and helps reduce bushing wear.
Each sleeve is machined from 1020 steel, zinc plated for corrosion resistance and sold individually. Select the exact dimensions required for your application. L means overall length, OD means outside diameter and ID means inside diameter.
Ships directly from the manufacturer.
These are universal replacement components. Confirm all three dimensions and the mounting-bolt size before ordering. Contact sales@bajaracingparts.com for help matching a part number.
Part numbers and configurations
| Configuration | Part number | Price |
|---|---|---|
| 1.96" L x 1" OD x .631" ID | DK-IB8901960 | $4.50 |
| 2.125" L x 1" OD x .56" ID | DK-IB8702125 | $4.50 |
| 2.144" L x 1" OD x .56" ID | DK-IB8702144 | $4.50 |
| 2.206" L x 1" OD x .631" ID | DK-IB8802206 | $4.50 |
| 2.206" L x 1" OD x .56" ID | DK-IB8702206 | $4.50 |
| 2.47" L x 1" OD x .563" ID | DK-IB8702470 | $4.50 |
| 2.53" L x 1" OD x .563" ID | DK-IB8702530 | $4.50 |
| 2.768" L x 1.125" OD x .753" ID | DK-IB9302768 | $6.50 |
| 2.768" L x 1.125" OD x .828" ID | DK-IB9402768 | $6.50 |
| 2.88" L x 1" OD x .563" ID | DK-IB8702880 | $6.50 |
| 2.925" L x 1.125" OD x .631" ID | DK-IB5402925 | $6.50 |
| 3.02" L x 1.125" OD x .625" ID | DK-IB5403020 | $8.50 |
| 3.304" L x 1.25" OD x .906" ID | DK-IB5003304 | $8.50 |
| 3.482" L x 1" OD x .560" ID | DK-IB8703482 | $6.50 |
| 3.482" L x 1" OD x .631" ID | DK-IB8903482 | $6.50 |
| 3.55" L x 1.125" OD x .63" ID | DK-IB5403550 | $8.50 |
| 3.702" L x 1.125" OD x .719" ID | DK-IB9203702 | $8.50 |
| 3.797" L x 1.125" OD x .719" ID | DK-IB9203797 | $8.50 |
| 3.83" L x 1.125" OD x .630" ID | DK-IB5403830 | $8.50 |
| 3.93" L x 1.125" OD x .715" ID | DK-IB9203930 | $11.00 |
| 4.188" L x 1.125" OD x .709" ID | DK-IB9204188 | $11.00 |
| 4.52" L x 1.125" OD x .715" ID | DK-IB9204520 | $11.00 |
| 2.72" L x .75" OD x .560" ID | DK-IB8202720 | $4.00 |
| 3" L x .75" OD x .580" ID | DK-IB8203000 | $4.00 |
| 3.45" L x .75" OD x .560" ID | DK-IB8203450 | $4.00 |
Manufacturer Warranty
Dirt King warrants its products to the original purchaser against defects in materials and workmanship under normal use and service. Dirt King determines whether an approved claim will be repaired or replaced.
Coverage excludes improper installation, misuse, abuse, accidents, modifications, racing, normal wear, cosmetic damage and improper maintenance. The manufacturer's written terms and applicable law determine coverage.
Baja Racing Parts can help start a claim. See our Warranty Policy or email sales@bajaracingparts.com.
