Dirt King Leaf Spring Perches
Dirt King Leaf Spring Perches
Dirt King
SKU:DK-300806A
Couldn't load pickup availability
Overview

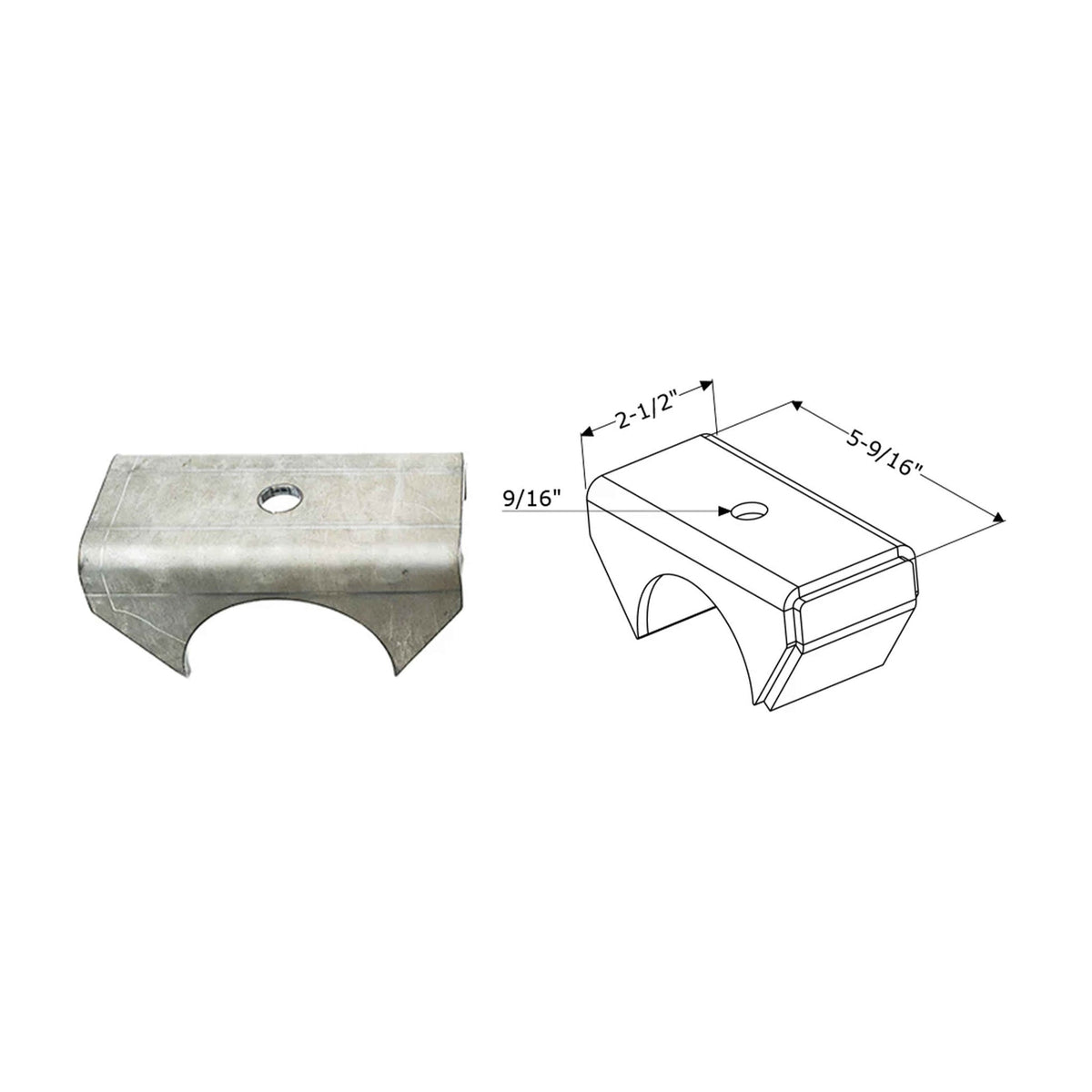

Dirt King Leaf Spring Perches provide reinforced weld-on mounting points for leaf springs on custom axle and suspension builds. Each perch is formed from 3/16-inch plate and is supplied with boxing plates for added strength.
Select the Size that matches the axle-tube outside diameter: 3 inches, 3.25 inches or 3.5 inches. Confirm the axle-tube diameter, spring position and pinion angle before welding.

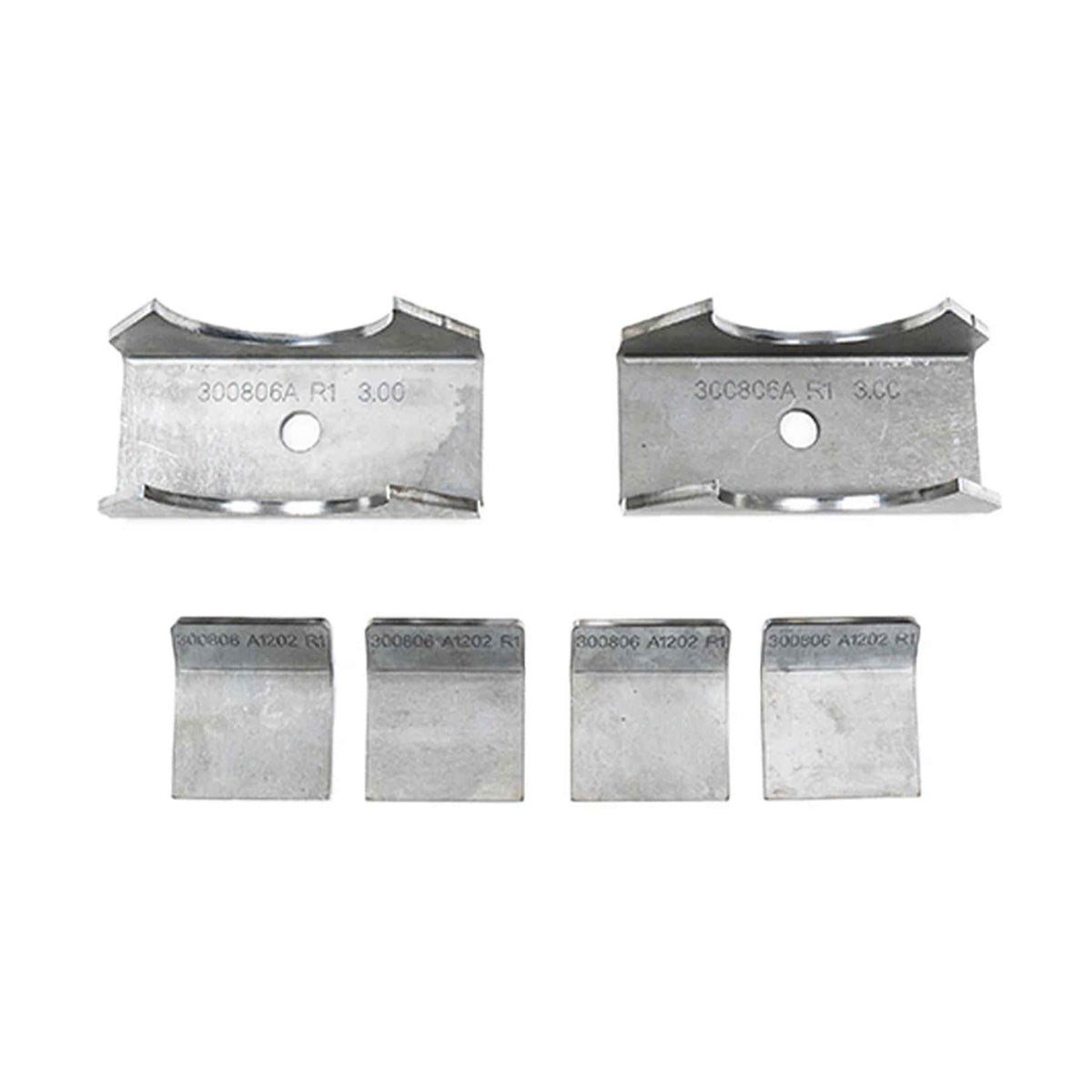

What's included
- Two leaf spring perches
- Four plates to fully box the perches
Ships directly from the supplier.
Part numbers and configurations
| Configuration | Part number | Price |
|---|---|---|
| 3" axle tube | DK-300806A | $49.00 |
| 3.25" axle tube | DK-300806B | $49.00 |
| 3.5" axle tube | DK-300806C | $49.00 |
Manufacturer Warranty
Dirt King states that its warranty covers defects in materials and workmanship for the original purchaser under normal use and service. Dirt King may repair or replace an eligible product. Coverage excludes improper installation, misuse, abuse, accidents, modifications, racing, normal wear, cosmetic damage and improper maintenance. Warranty decisions and remedies are handled by the manufacturer under its current written terms.
For warranty help, email sales@bajaracingparts.com. See our Warranty Policy for the claim process.
