Overview

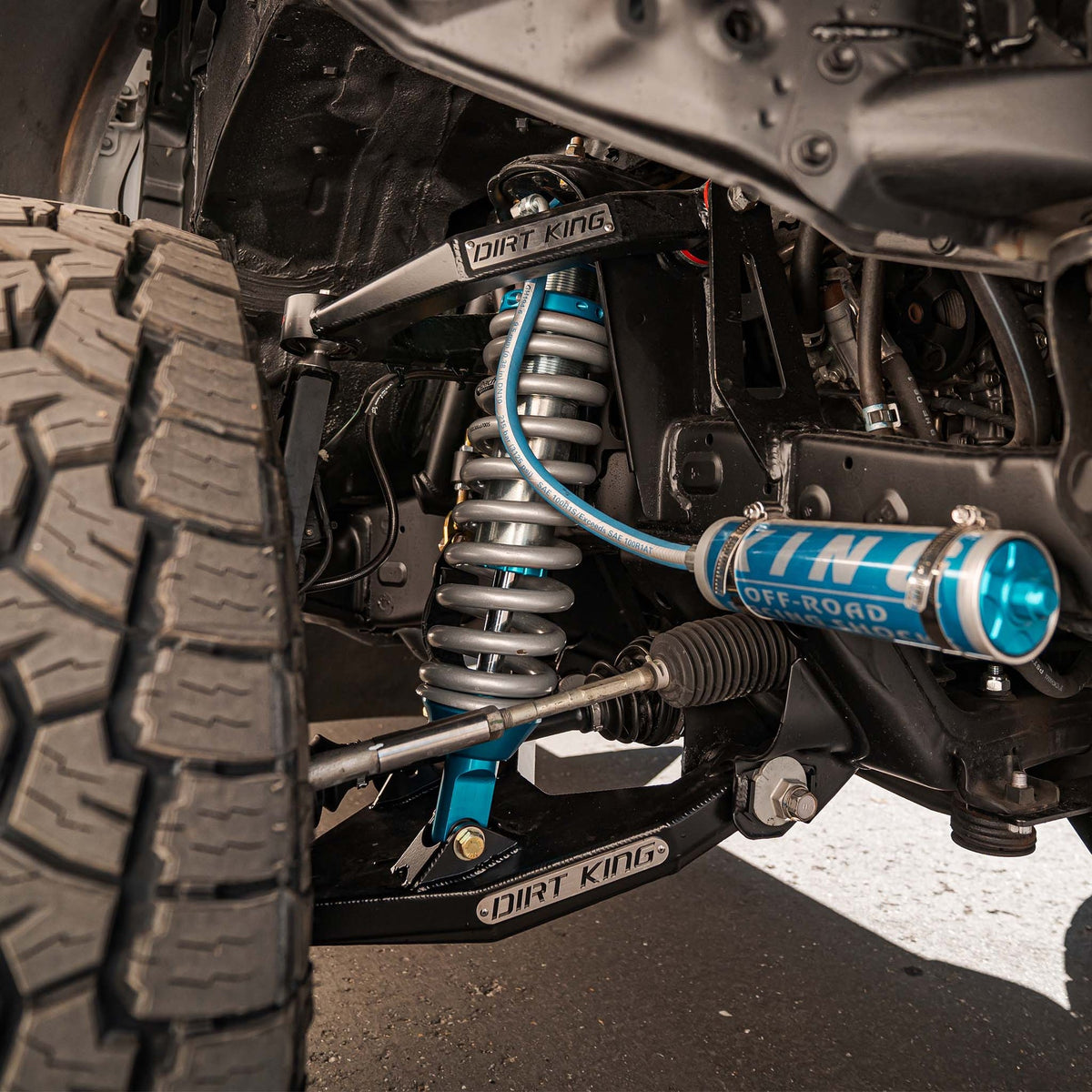

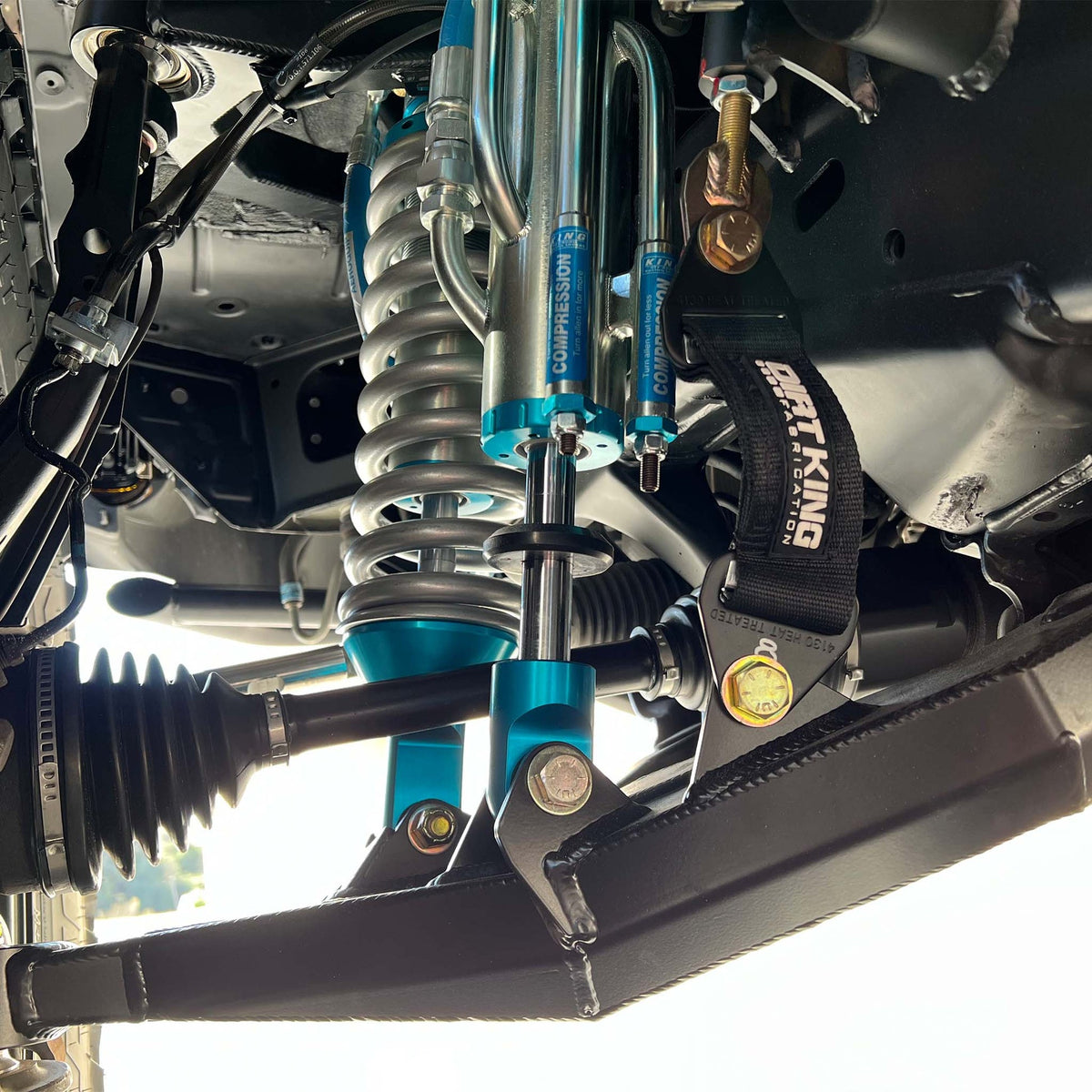

The Dirt King long travel kit is designed to improve off-road control while retaining predictable everyday driving. Its boxed upper and lower control arms use 1-inch stainless-steel uniballs at the outer pivots, increase front wheel travel to 13.5 inches, and widen the track by 3.5 inches per side. The lower arms mount in the factory locations to preserve ground clearance, and the system supports tires up to 35 inches with the required body clearance work.
Ships directly from the supplier.
Features
- Bolt-on design with limited vehicle modification
- Probearing spherical bearings and 4130 chromoly uniball cups
- Choice of ¾-inch heim or polyurethane-bushing upper-arm pivots

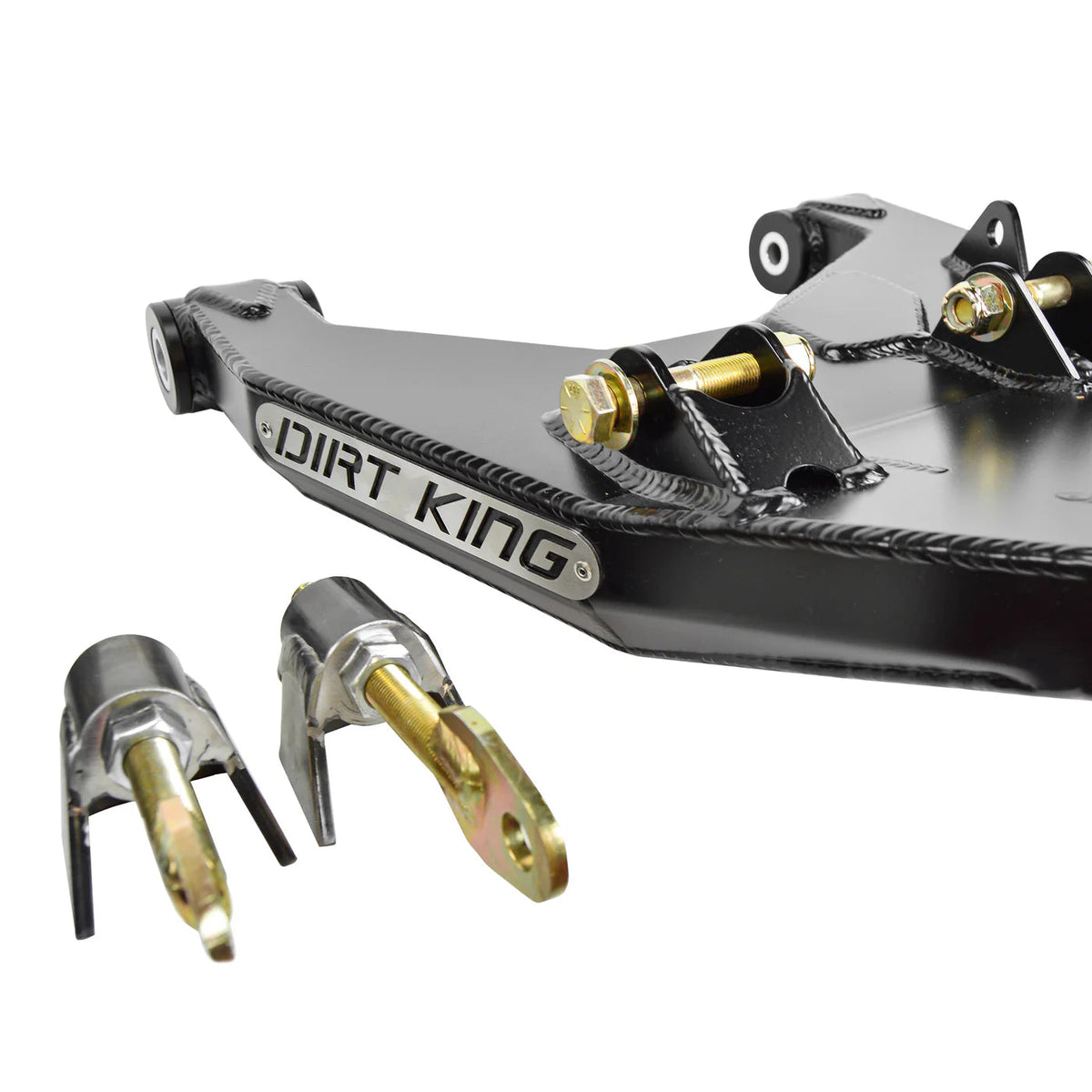

- Delrin lower-arm bushings and zinc-plated inner sleeves
- Grease fittings for service
- Boxed 3/16-inch and 1/8-inch plate construction
- Integrated bump-stop, limit-strap and bypass-shock provisions
Specifications
- Wheel travel
- 13.5 inches
- Lift range
- 0–4 inches
- Track width
- 3.5 inches wider per side
- Maximum tire size
- 35 inches
- Maximum backspacing
- 4.75 inches
- Minimum wheel size
- 16 inches
- Bump stop size
- 2.0 × 2.0 inches
- Coilover and bypass shock size
- Dirt King specification

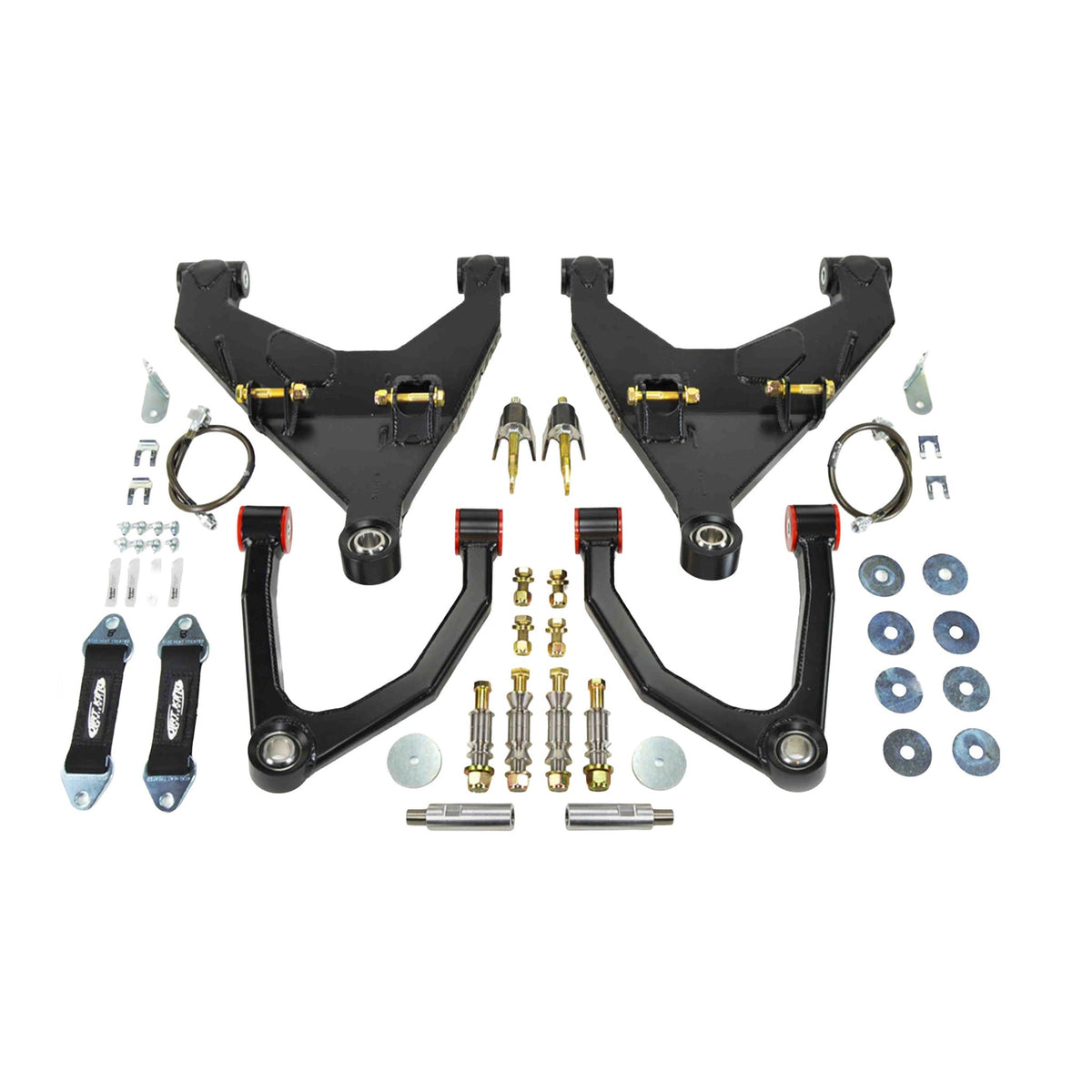

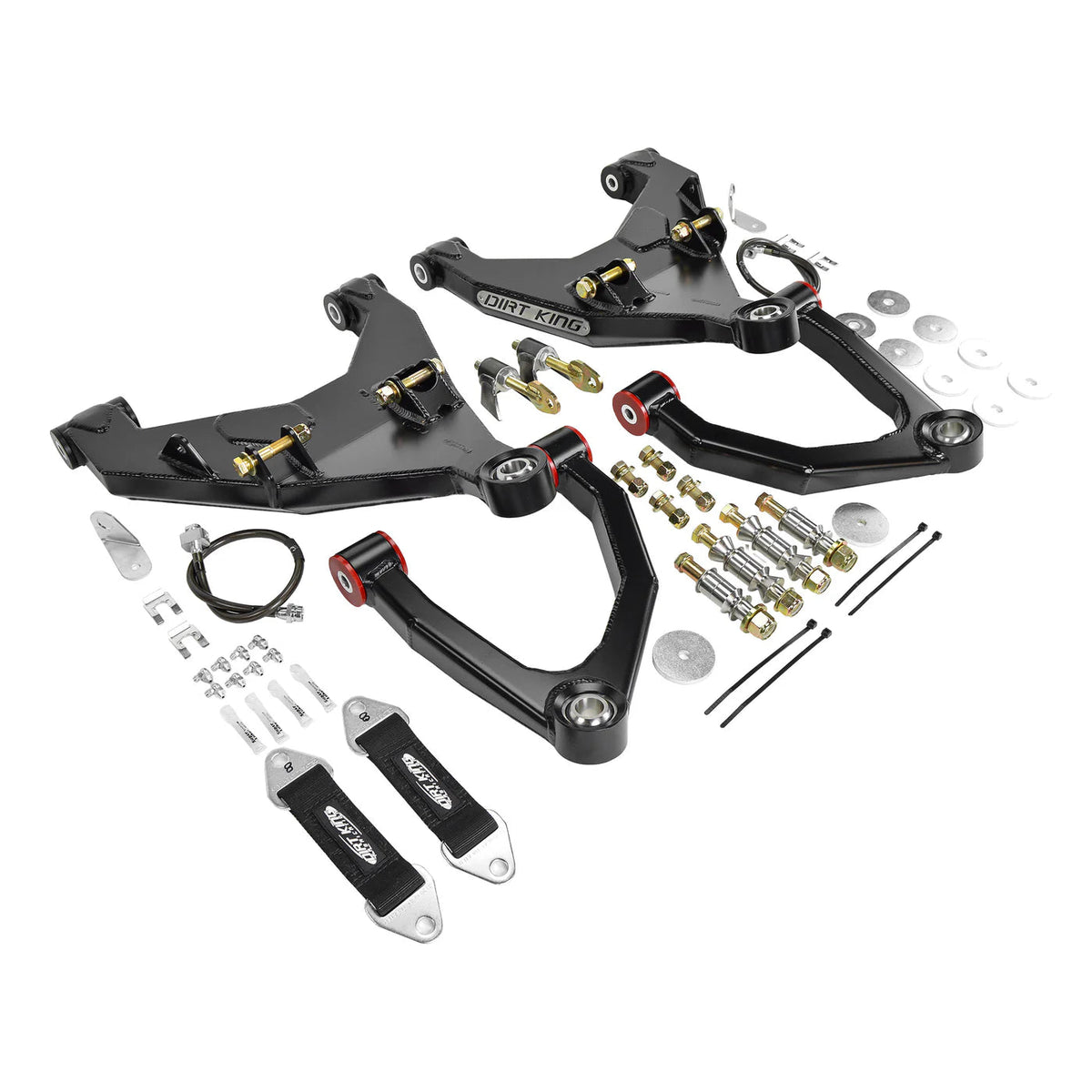

What's included
- Boxed upper control arms
- Boxed lower control arms
- 8-inch quad-wrapped limit straps
- Weld-on adjustable limit-strap mounts

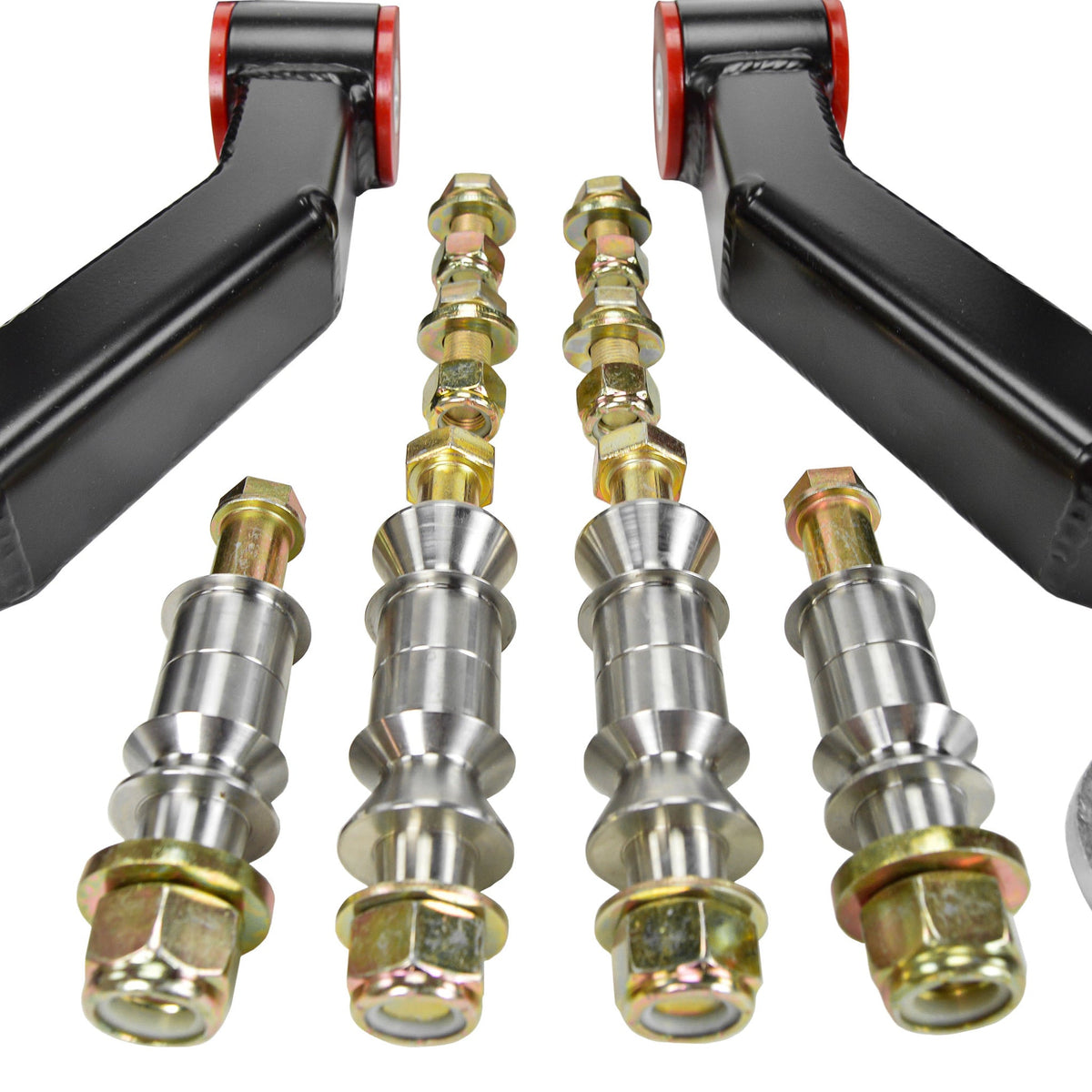

- 17-4 stainless-steel misalignment spacers
- 17-4 stainless-steel tie-rod extensions
- DOT-approved extended brake lines
- Grade 8 mounting hardware
- Zinc-plated bushing washers
- Bump-stop spacers
Vehicle fitment
- 2007–2009 Toyota FJ Cruiser 2WD / 4WD without KDSS
- 2003–2009 Toyota 4Runner 2WD / 4WD without KDSS
- 2003–2009 Lexus GX470 4WD without KDSS
Installation notes
- Four-wheel-drive configurations require a 1-inch differential drop and additional inner-CV articulation.
- Achieving the listed travel requires correctly specified shocks.
- 35-inch tires require wheel-well, firewall pinch-weld and front cab-mount clearance work.
Compatibility warnings
- Please contact us before installing this kit with lift spindles or a bracket lift.
- Front fiberglass is required.
- This product is designed to pair with OEM and Dirt King parts. Compatibility with other brands must be approved by the respective manufacturer.
Part numbers and configurations
| Configuration | Part number | Price |
|---|---|---|
| Bushing Upper Control Arms — 2WD | DK-812908-B | $3,499.00 |
| Bushing Upper Control Arms — 4WD w/ Axle Shafts | DK-812908-B + DK-812948 | $4,148.00 |
| Bushing Upper Control Arms — 4WD w/ Complete Axle Assemblies | DK-812908-B + DK-812975D | $5,198.00 |
| Heim Upper Control Arms — 2WD | DK-812908-H | $3,799.00 |
| Heim Upper Control Arms — 4WD w/ Axle Shafts | DK-812908-H + DK-812948 | $4,448.00 |
| Heim Upper Control Arms — 4WD w/ Complete Axle Assemblies | DK-812908-H + DK-812975D | $5,498.00 |
Manufacturer Warranty
Dirt King warranty: Dirt King warrants its products against defects in materials and workmanship for the original purchaser under normal use and service, subject to its written terms and exclusions.
Baja Racing Parts is the retailer. Warranty claims follow Dirt King’s process. We can help identify the required information and start your claim.
See our Warranty Policy or email sales@bajaracingparts.com for assistance.
