Dirt King Long Travel Kit | 2004–2008 Ford F-150

Overview

The Dirt King long travel kit for the 2004–2008 Ford F-150 is built to increase front-wheel travel and track width for high-speed off-road use. It widens the front suspension 3.5 inches per side and provides up to 12 inches of travel while retaining the factory steering layout.

Choose bushing or heim-joint upper-arm pivots, then select the correct 2WD or 4WD axle configuration.

Vehicle fitment

• 2004–2008 Ford F-150 — 2WD and 4WD

Important fitment notes

• Front fiberglass fenders are required.
• Contact us before ordering for a truck with lift spindles or a bracket lift.
• Four-wheel-drive trucks require one of the listed axle options.
• The kit is intended for OEM or Dirt King components. Other brands require manufacturer approval before use.
• Running 37-inch tires requires additional clearance work at the pinch weld, cab mount and wheel well.

Features and specifications

• Up to 12 inches of wheel travel
• Works with 0–2.5 inches of lift
• Widens track width 3.5 inches per side
• Supports up to a 37-inch tire with required clearance modifications
• Maximum wheel backspacing: 4.75 inches
• Minimum wheel diameter: 17 inches
• Sway-bar compatible when used with Dirt King part DK-900955
• 4130 chromoly upper control arms and boxed lower control arms
• Heavy-duty 7/8-inch outer heims, Delrin bushings, and durable FK inner heims where selected

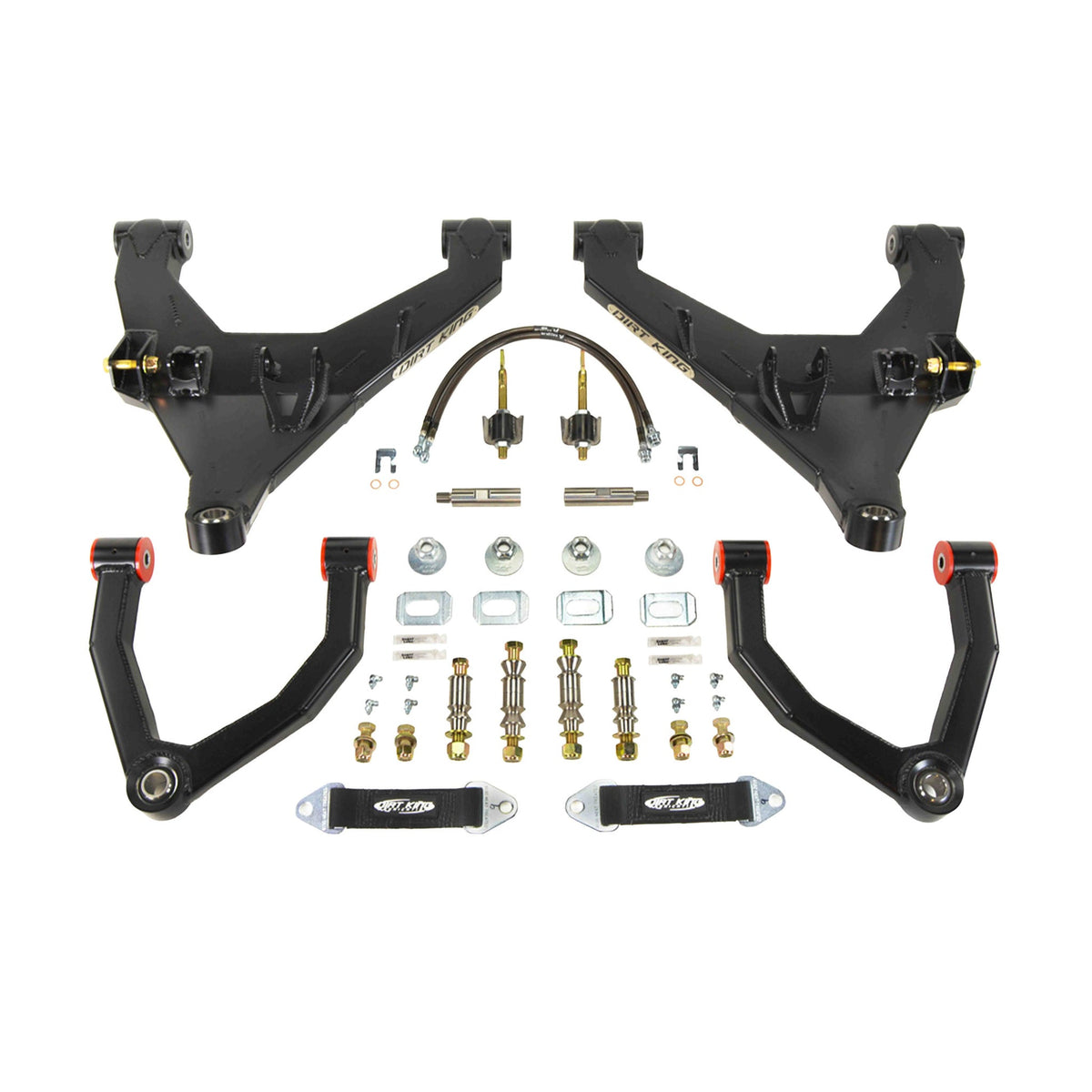

What’s included

• Upper control arms
• Lower control arms
• Outer tie-rod extensions
• Limit straps, weld-on tabs and mounting hardware
• Extended brake lines and mounting tabs
• 4WD axle components selected from the dropdown

Ships directly from the manufacturer.

Part numbers and configurations
