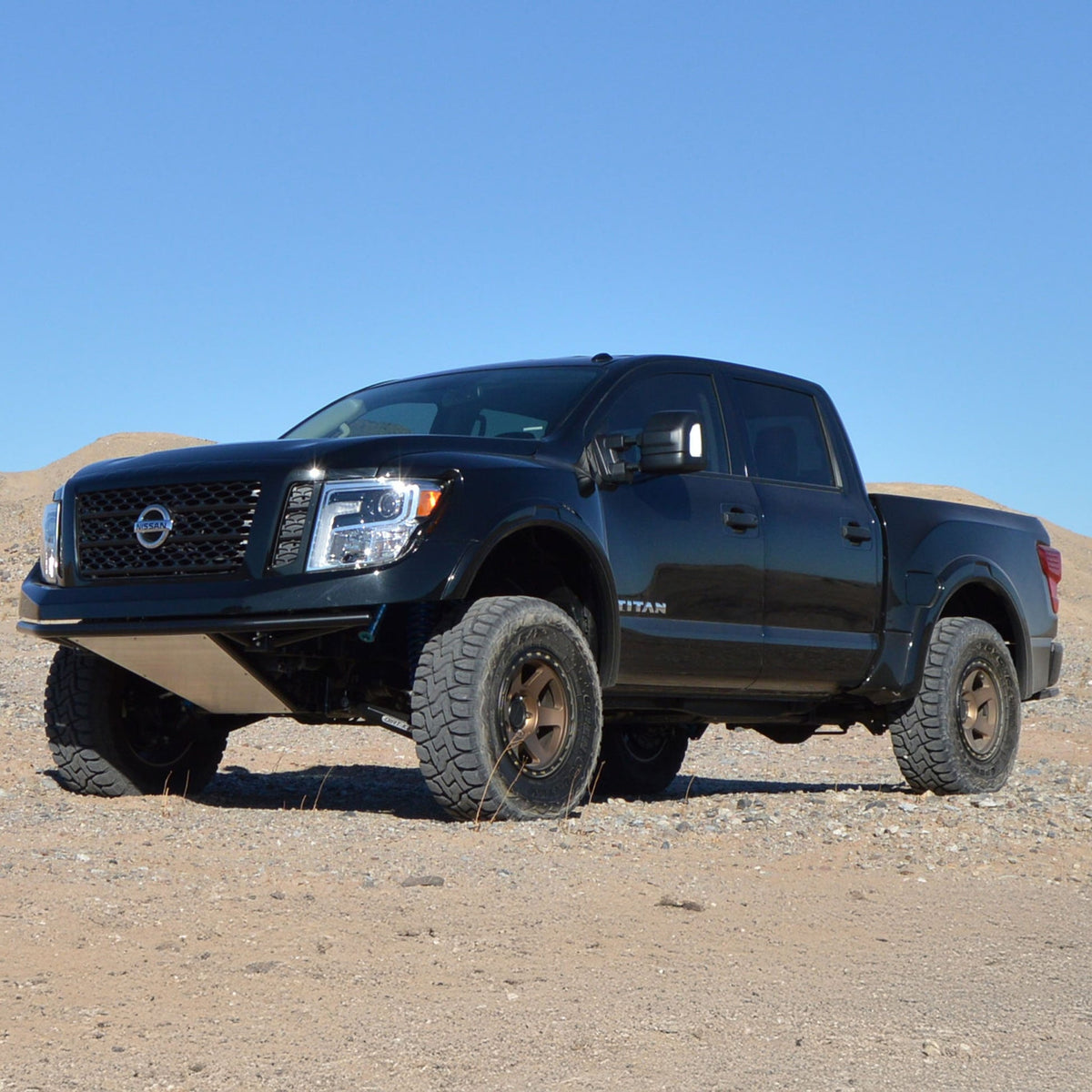

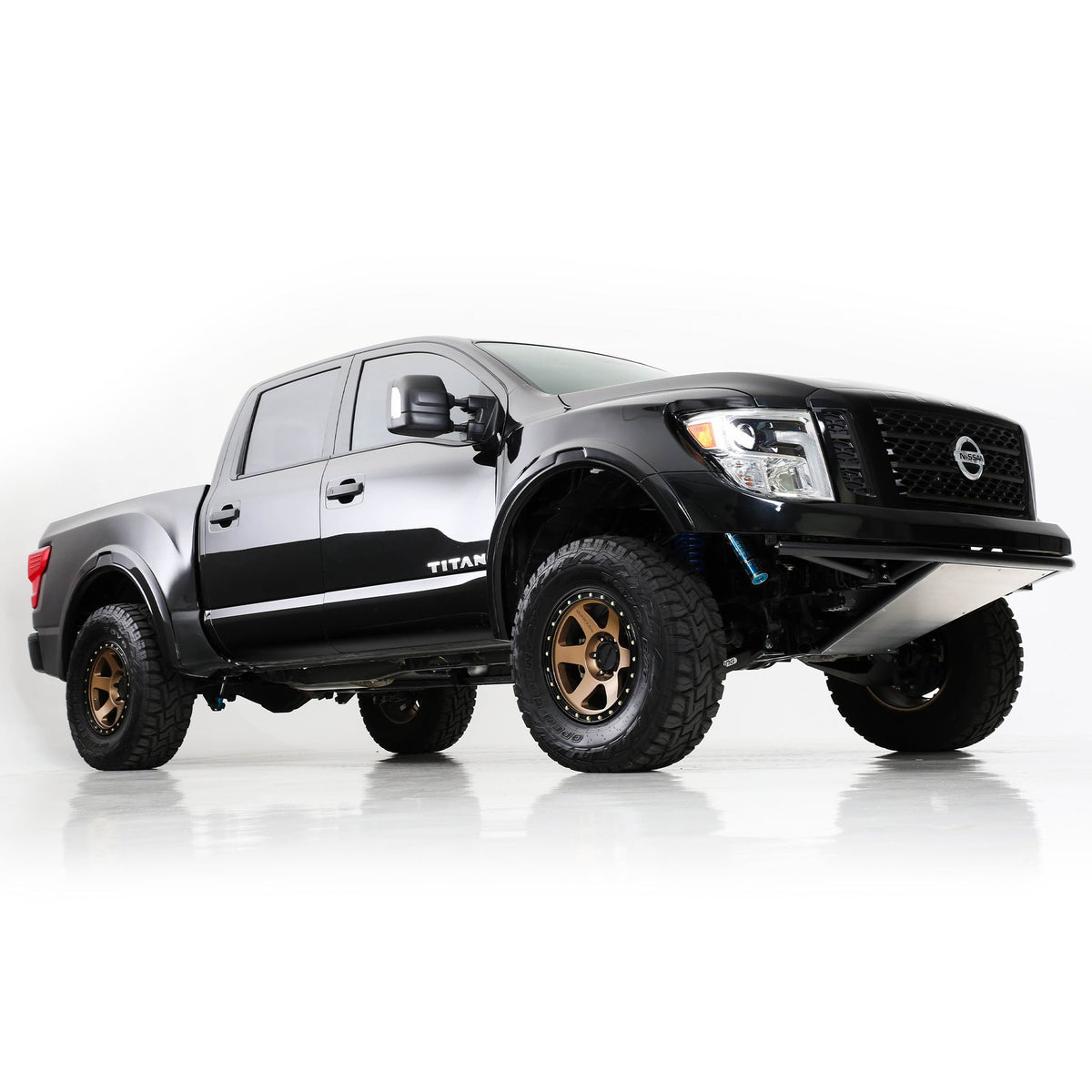

Dirt King Long Travel Kit | 2004–2023 Nissan Titan

Overview

The Dirt King long travel kit was developed to drastically improve the vehicles off-road handling without compromising its day to day driving characteristics. This suspension system allows for 13.25” of travel and accepts up to a 35” tire. The kit is compatible with 2WD models and 4WD models along with the purchase of extended axle shafts. Dirt King has upgraded the lower arm outer pivot to heavy duty Moog ball joints and 1” uniballs for the upper arm outer pivot. This allows for superior strength and increased articulation. The suspension system also accommodates for bump stops to be used with the coil overs if desired. This kit is CAD designed, thoroughly tested, and 100% made in America resulting in a product Dirt King is proud to put Dirt King's name on!

Specifications

• Wheel Travel: 13.25”
• Amount of Lift: 0-4”

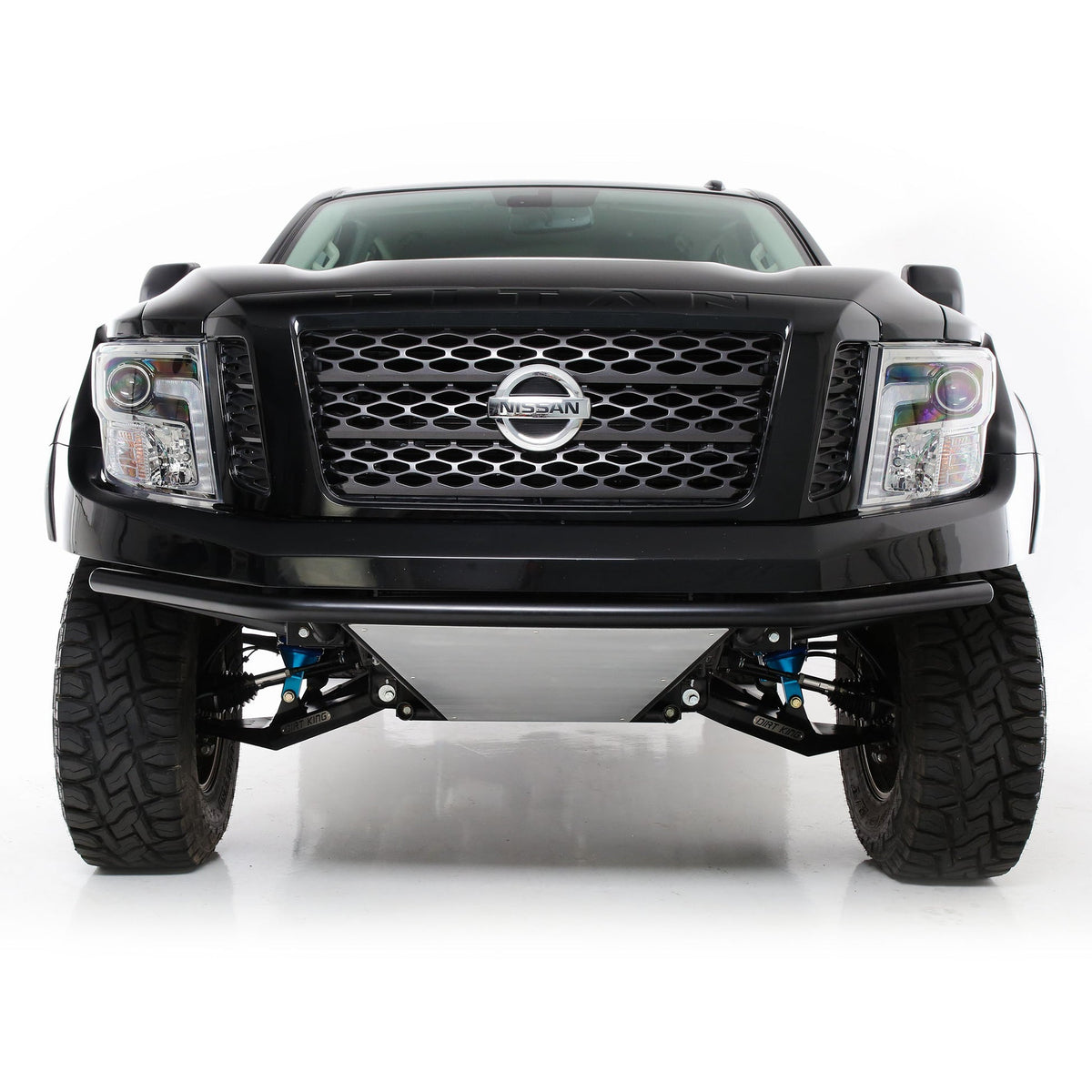

• Track Width: 3” wider per side
• Maximum Tire Size: 35”
• Maximum Backspacing: 4.75”
• Minimum Rim Size: 17”
• Bump Stop Size: 2.0” x 2.0” (view spec sheet)
• Coilover Shock Size (w/ Shock Hoops): 2.5"x8"
• Coilover Shock Size (w/ Facotry Mounting): King OEM replacement shocks with the options below
  • Internal droop stops removed
  • +1” rod ends

Shocks

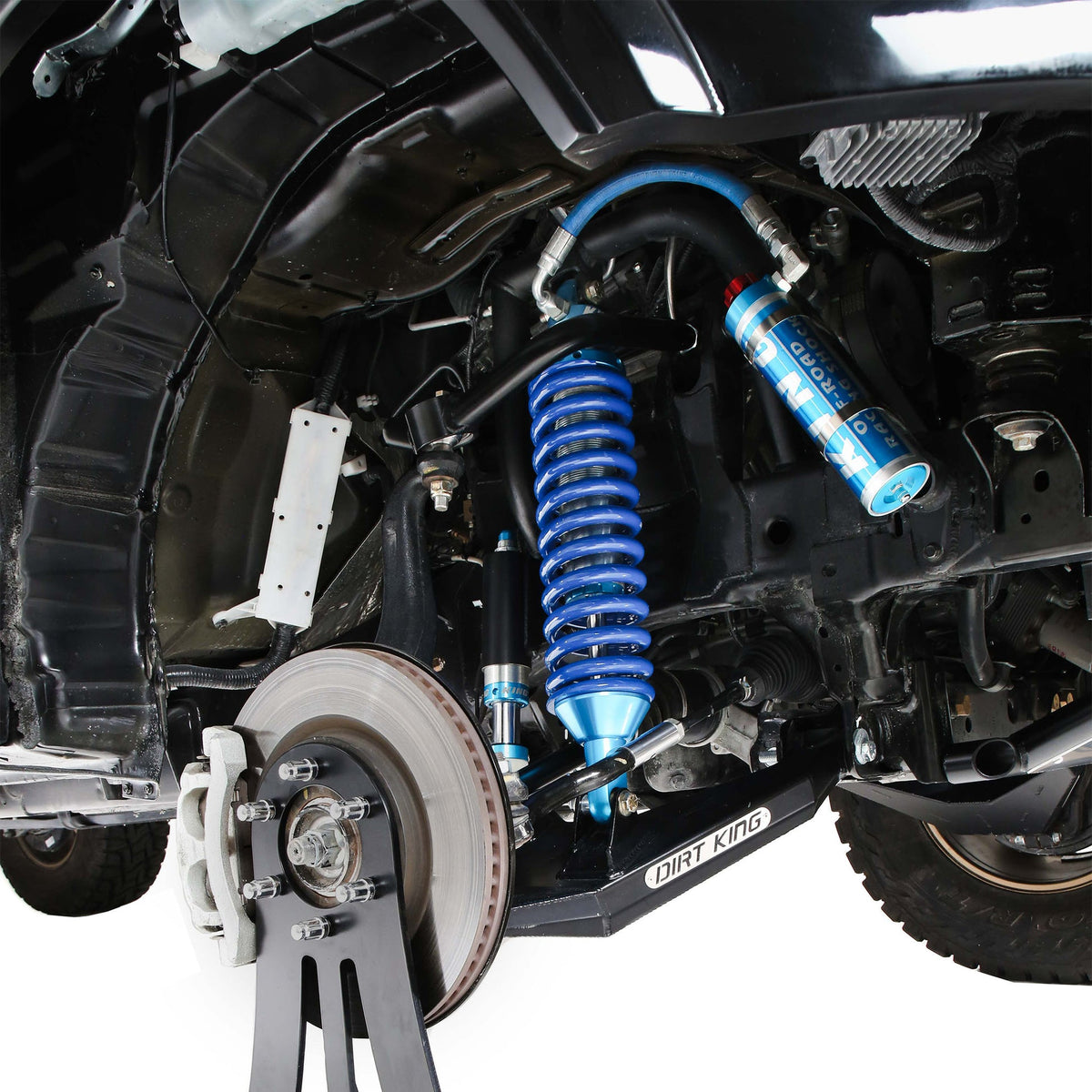

For the best performance and to achieve the full 13.25” of travel you must purchase Dirt King's spec built shocks or have them custom built based on Dirt King's coil over spec sheet. For direct bolt on applications King OEM replacement coil overs can be installed, but you will have to delete the factory coil bucket and build a custom shock hoop to use Dirt King's spec built shocks. The King OEM replacement coil overs must have the internal droop stops removed and 1” rod end extensions added. These shocks will allow for 10” of travel. Both pairs of shocks will work with 2WD or 4WD models. For more dampening the suspension system has the ability to use bump stops along with the coil overs. The use of bump stops will also require welding and modifications to the frame.

Wheel Travel
When shopping long travel kits many consumers tend to focus just on travel numbers. This is the reason many companies claim inaccurate numbers or don’t disclose the amount of work involved to achieve these numbers. Dirt King's goal is to build a suspension system with the highest amount of wheel travel without requiring major modifications to the vehicle or compromising its overall drivability.

Tire Info
When using 35” tires with this kit modifications to the wheel well will need to be made. The firewall pinch weld will need to be folded over and front cab mount needs to be shaved to avoid contact while turning. The upper wheel well will also need to be modified to avoid contact at full bump.

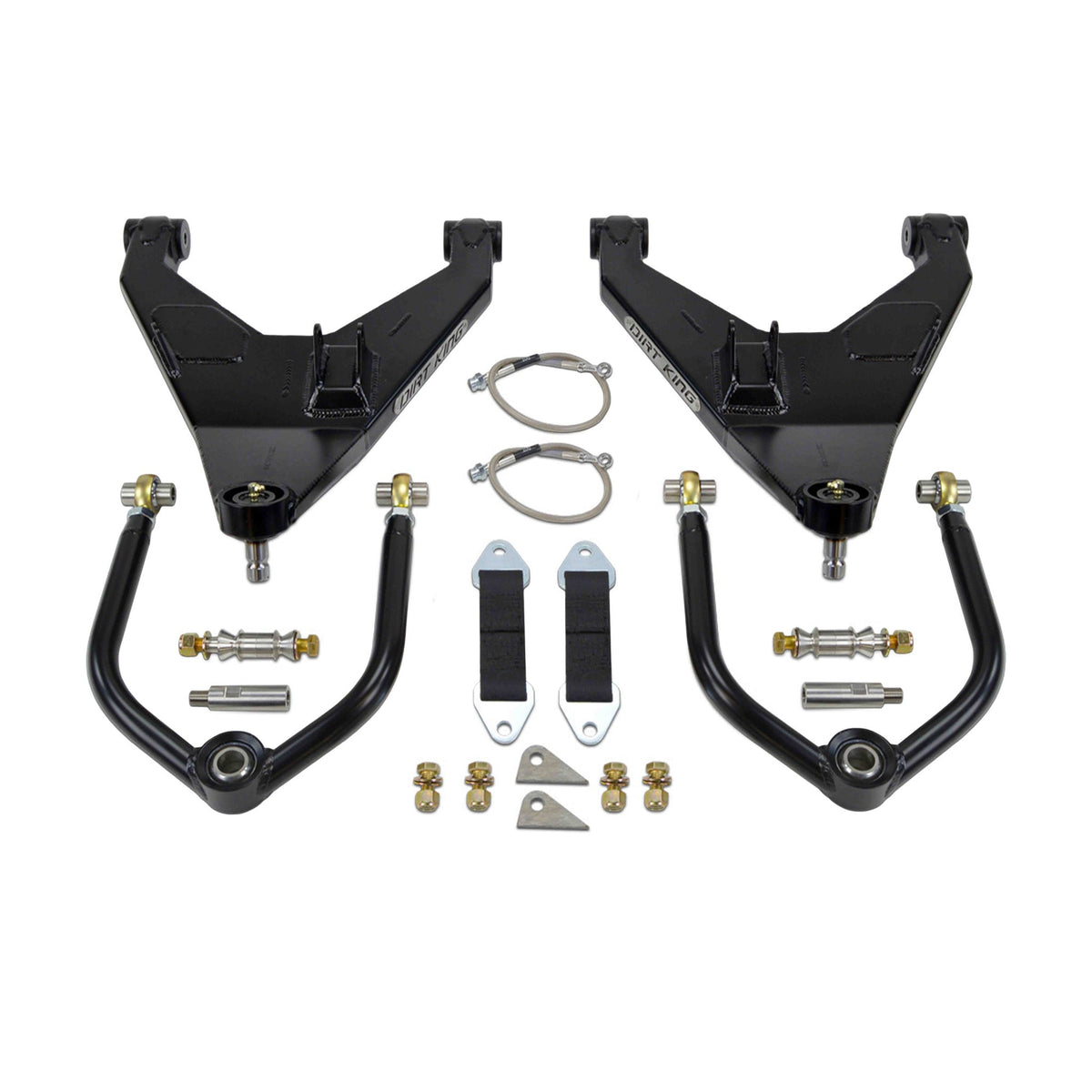

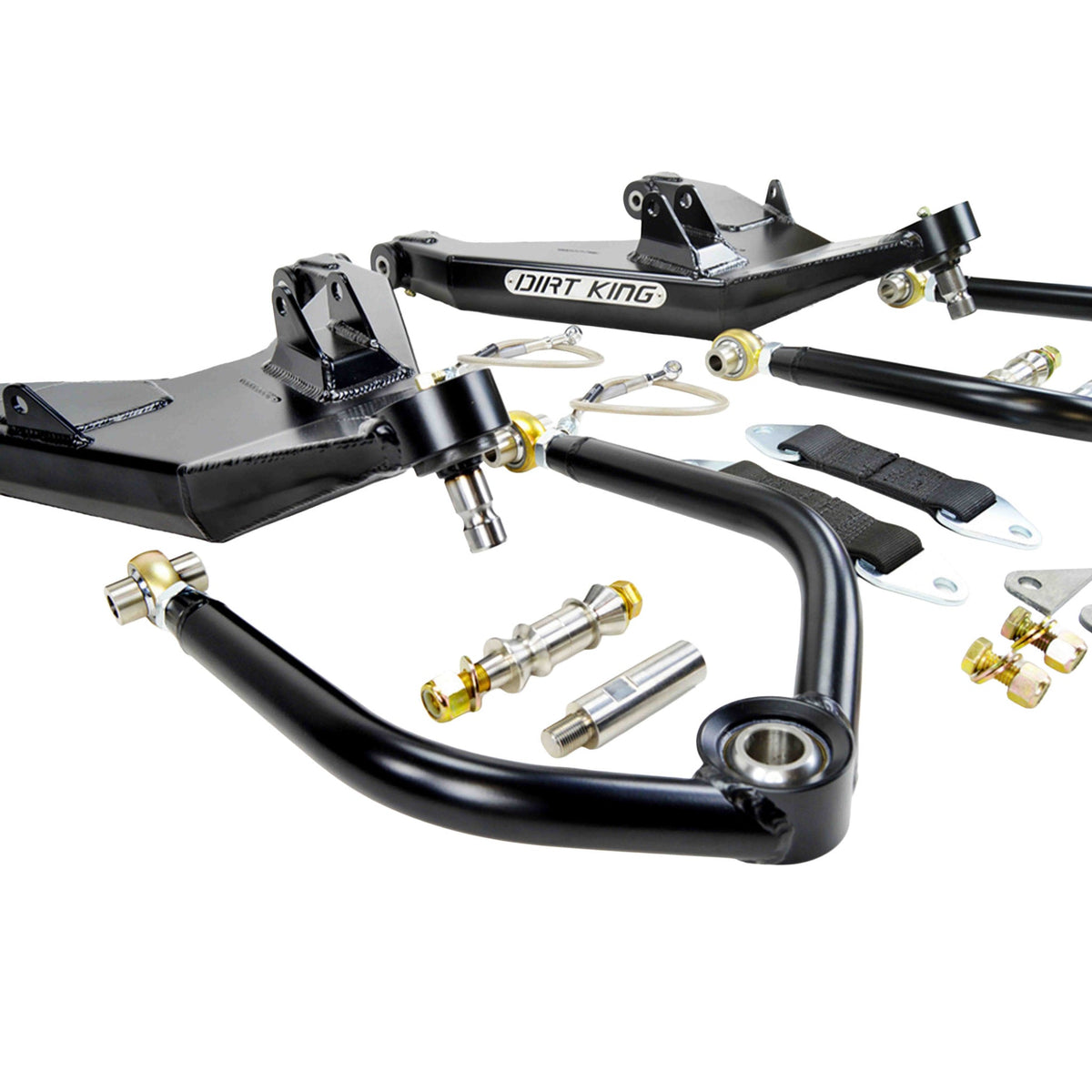

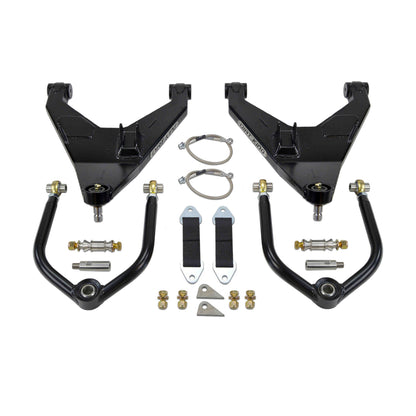

What's included

• Chromoly upper control arms
• Boxed plate lower control arms
• 9" quad wrapped limit straps
• Weld on adjustable limit strap mounts
• 17-4 stainless steel misalignment spacers
• 17-4 stainless steel tie rod extensions
• DOT approved extended brake lines
• Grade 8 mounting hardware

Features

• Bolt on application, minimal modifications required
• Utilizes Probearings bearings
• 4130 chromoly uniball cups
• ¾” heims for the UCA’s
• Delrin bushings for the LCA’s
• Zinc plated inner bushing sleeves
• Grease fittings for easy servicing
• 3/16" and 1/8” boxed plate construction
• Internally ribbed with extrusions for weight reduction
• Limit strap tabbing
• Bump stop plating

Compatibility

2004-2015 Nissan Titan 2WD / 4WD
2016-2023 Nissan Titan (Non-XD) 2WD / 4WD
*This suspension will not work with the 2016 or newer Titan XD models.
*Complete axle assemblies are not available for 2016-2023 models. Please reach out to Dirt King's Builds Department (619-567-6240, sales@dkbuilds.com) if you wish to purchase complete axle assemblies for your 2016-2023 Titan.
*Please contact us if you plan on installing this kit with lift spindles or a bracket lift.

*This product is designed to pair with OEM and Dirt King parts. Compatibility with other brands must be approved by the respective manufacturer.

Ships directly from the supplier.

Part numbers and configurations
