Dirt King Long Travel Kit | 2009–2014 F-150 / 2014–2017 Expedition

Overview

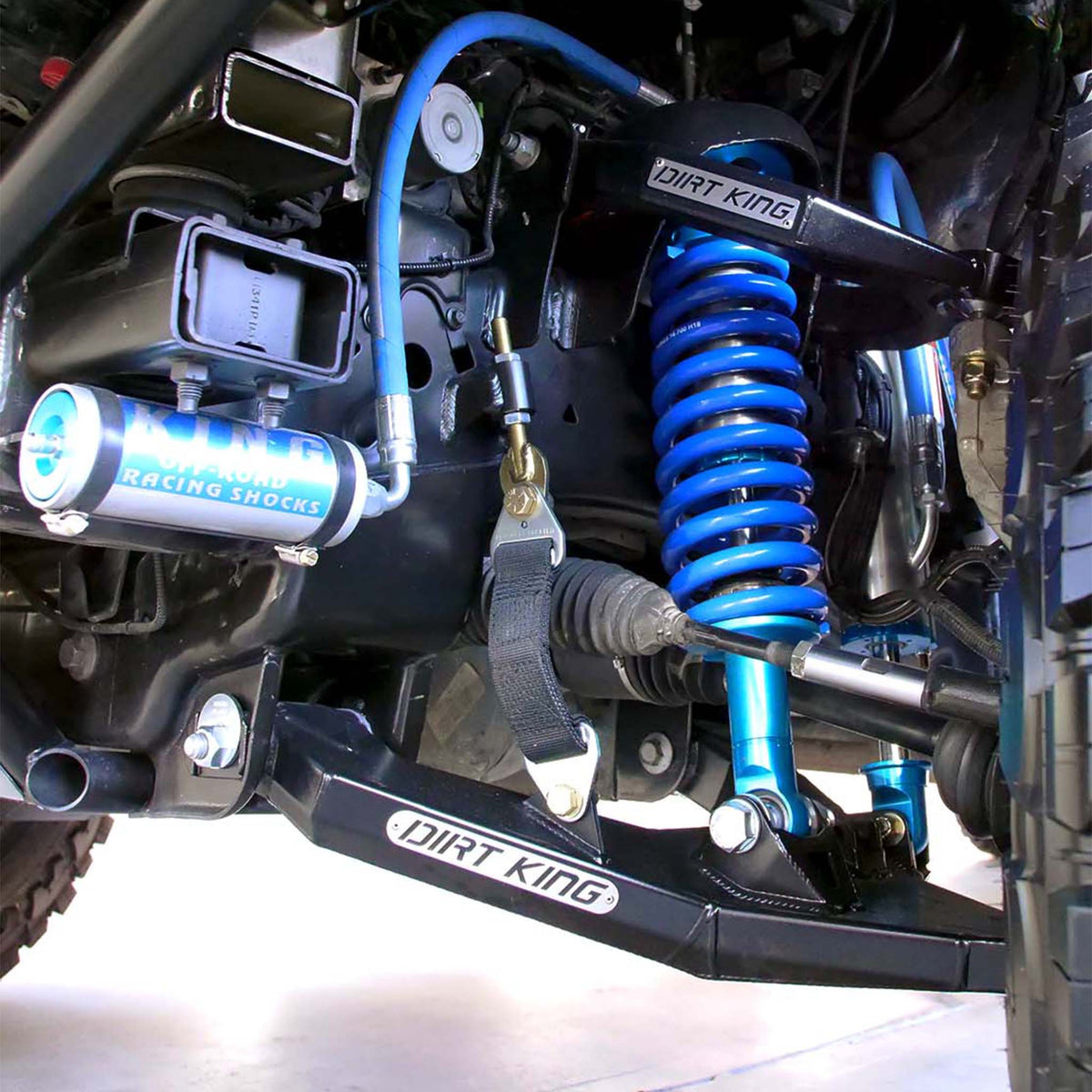

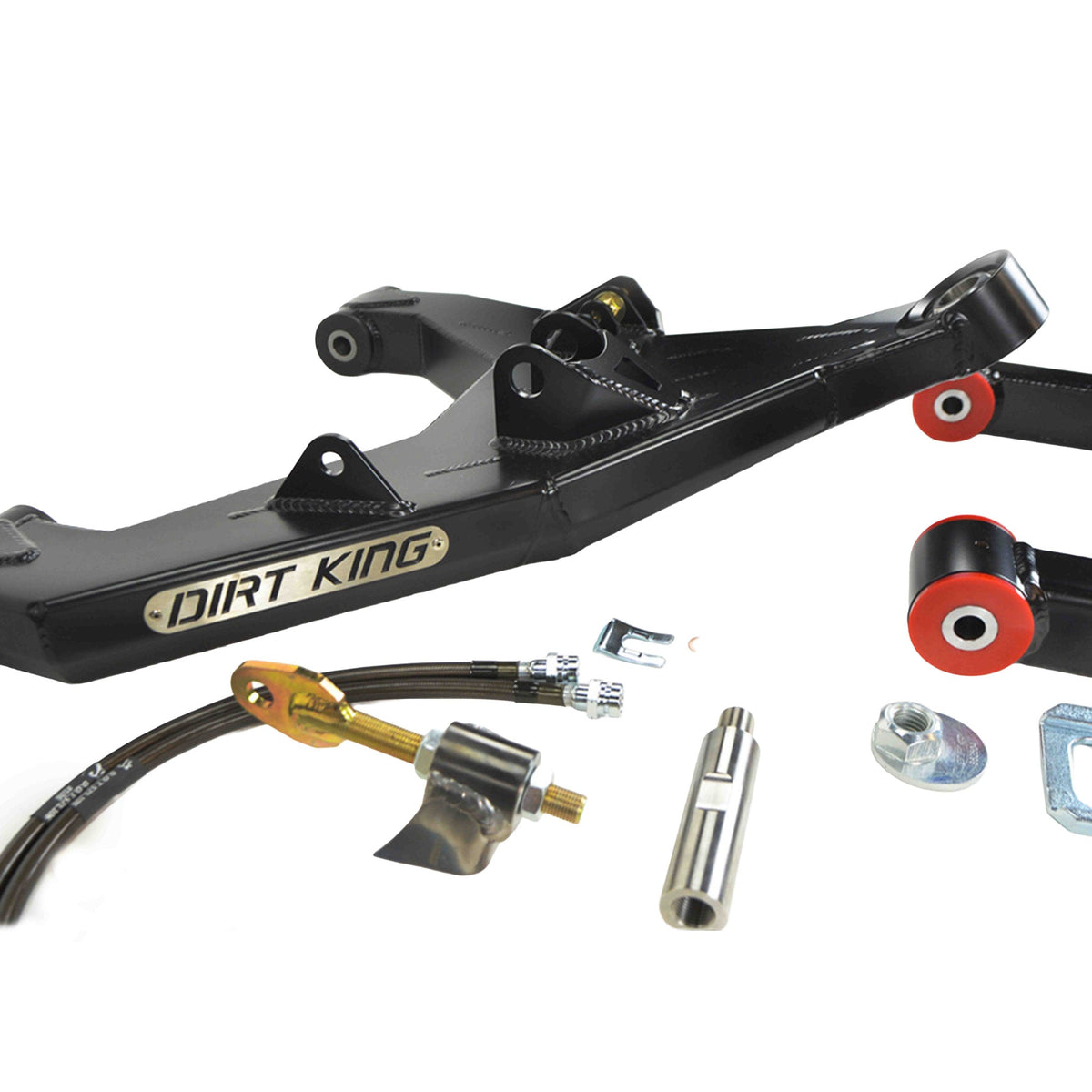

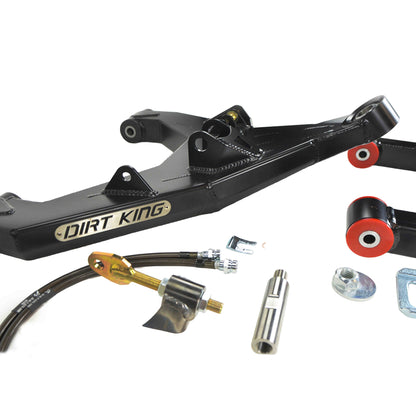

The Dirt King Long Travel Kit is designed to improve off-road handling while retaining everyday drivability. Its boxed upper and lower control arms use 1-inch stainless steel uniballs at the outer pivots for strength and increased articulation. The system provides 12 inches of wheel travel, 0–2.5 inches of lift, and widens track width by 3.5 inches per side.

The kit supports 2WD and 4WD configurations. Four-wheel-drive customers can choose extended axle shafts or complete axle assemblies directly from the drivetrain dropdown. The suspension is tabbed for bypass shocks and can be adapted to the factory sway bar.

Features

• Bolt-on application with minimal modifications
• Probearing bearings and 4130 chromoly uniball cups
• Choice of 3/4-inch heims or polyurethane bushings for the upper-arm inner pivots
• Delrin lower-arm bushings and zinc-plated inner sleeves
• Grease fittings for service

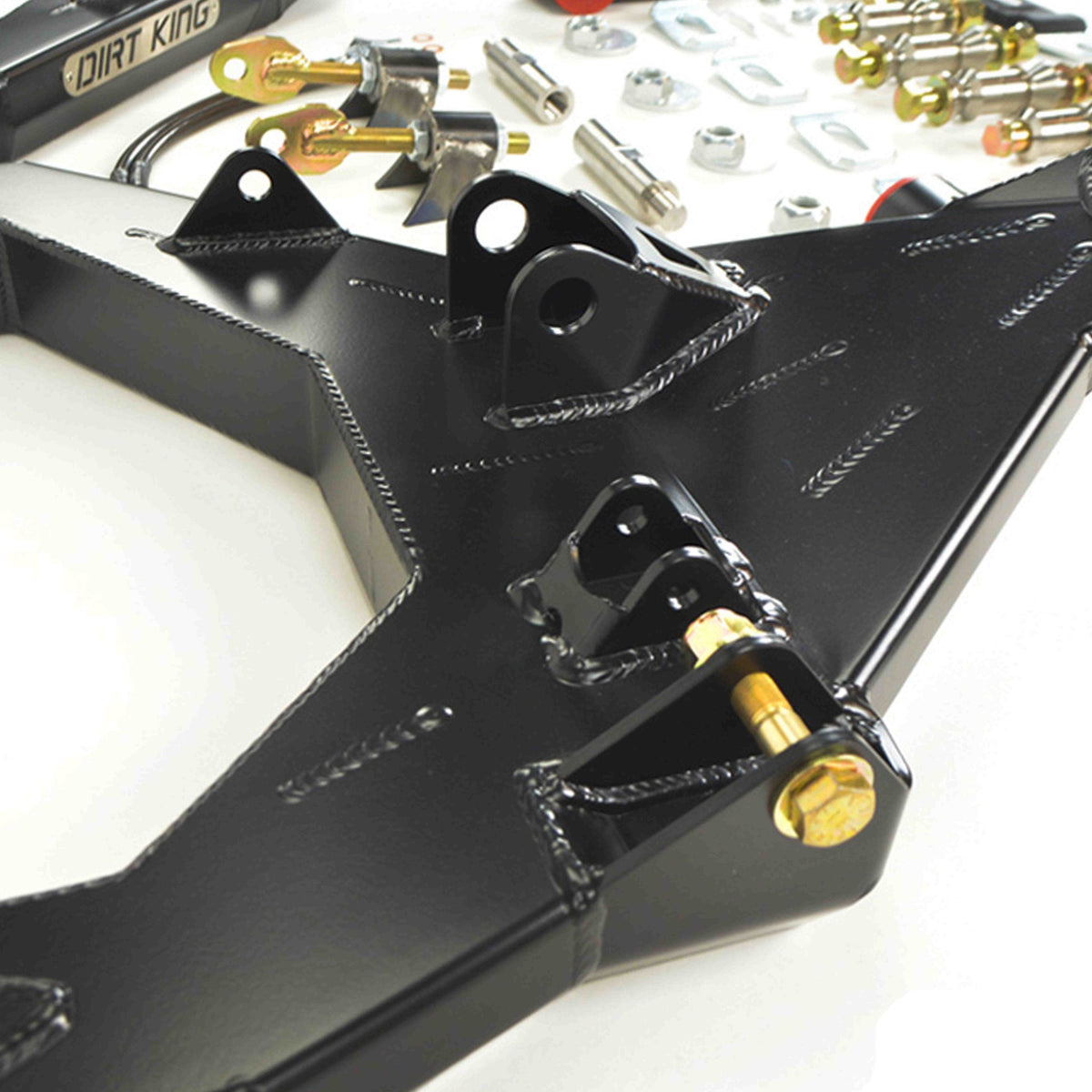

• 3/16-inch and 1/8-inch boxed-plate construction with internal ribbing

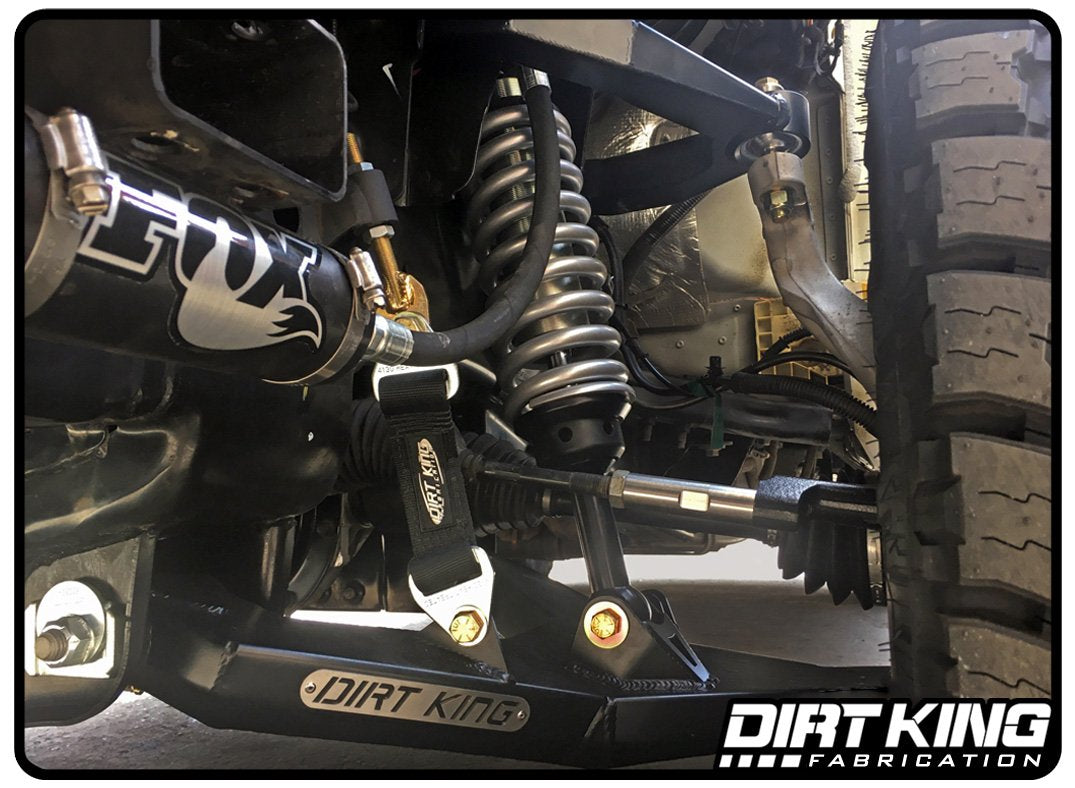

• Limit-strap and bypass-shock mounting tabs
• Factory sway-bar adaptation capability

Specifications

• Wheel travel: 12 inches
• Lift: 0–2.5 inches
• Track width: 3.5 inches wider per side
• Maximum tire size: 37 inches
• Maximum wheel backspacing: 4.75 inches
• Minimum wheel diameter: 17 inches
• Factory sway-bar adapter: DK-900955
• 4WD coilover requirement: King or Fox OEM-replacement coilovers with 700 lb springs
• Bypass and 2WD coilover requirement: Dirt King specification

Shock and tire requirements

Full 12-inch travel requires Dirt King specification shocks or shocks built to Dirt King’s coilover specification. Four-wheel-drive models use King or Fox OEM-replacement coilovers with 700 lb springs. The 2014 F-150 uses a different lower shock mount than 2009–2013 trucks and requires the DK-900963 lower-control-arm shock spacer kit.

Using 37-inch tires requires wheel-well modifications, including work at the firewall pinch weld, front cab mount, and upper wheel well.

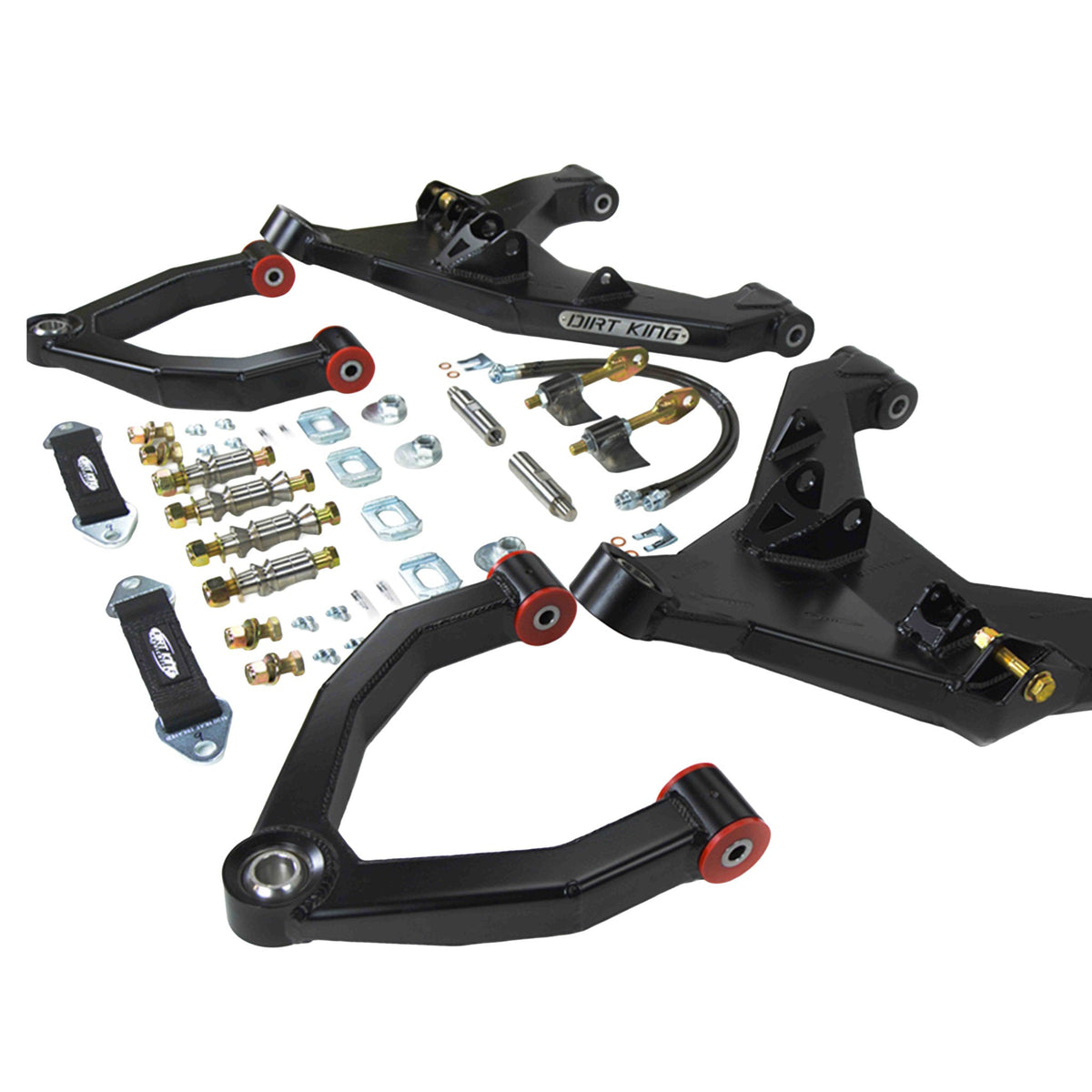

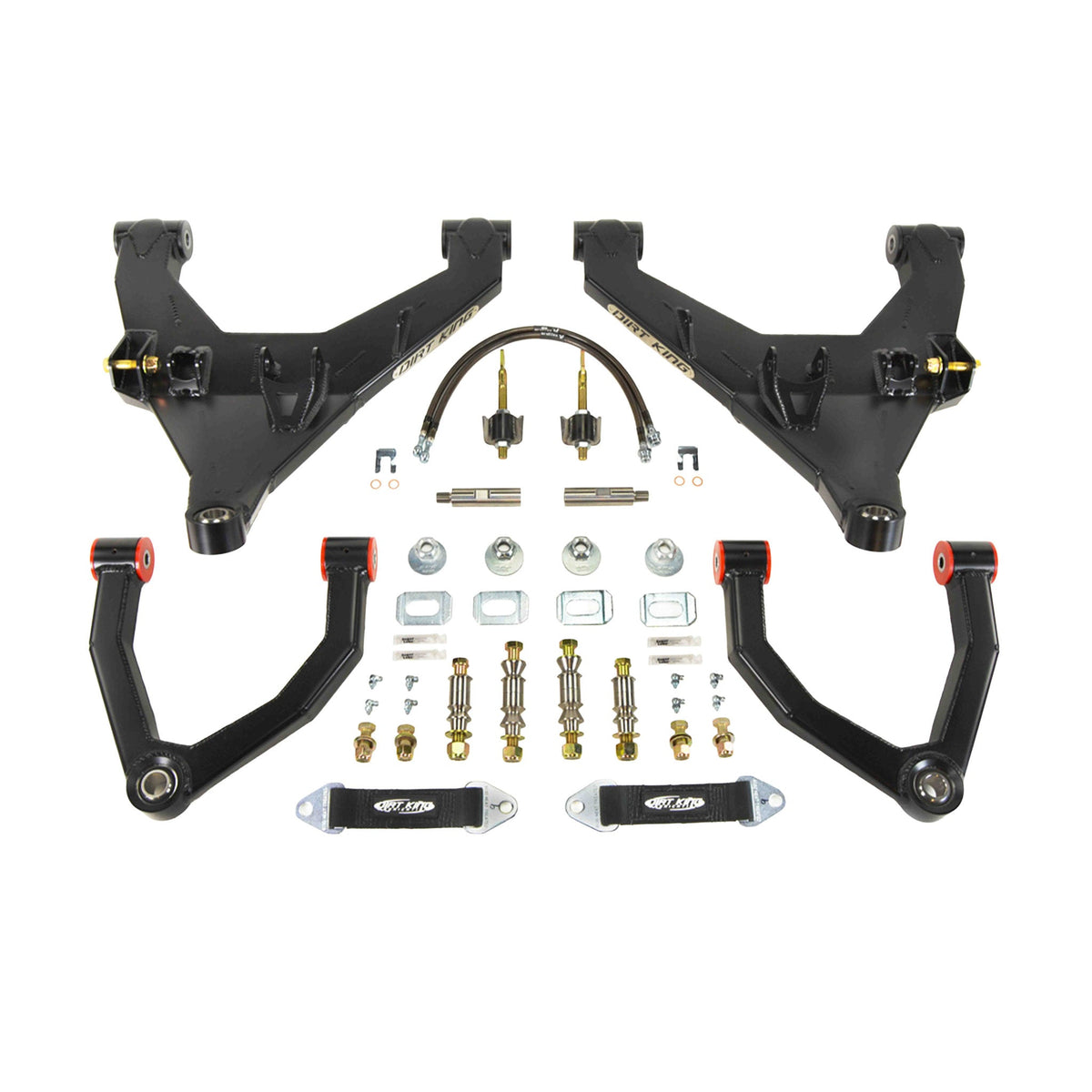

What's included

• Boxed-plate upper and lower control arms
• 9-inch quad-wrapped limit straps
• Weld-on adjustable limit-strap mounts
• 17-4 stainless-steel misalignment spacers and tie-rod extensions
• DOT-approved extended brake lines
• Grade 8 mounting hardware
• Lower-arm alignment cams

Vehicle fitment

• 2009–2014 Ford F-150 — 2WD and 4WD
• 2014–2017 Ford Expedition — 4WD

Fitment and installation notes

• Choose the matching axle option for a 4WD installation.
• Contact Baja Racing Parts before ordering for an Expedition so the correct axle configuration can be confirmed.
• Contact us before combining this kit with lift spindles or a bracket lift.
• Front fiberglass is required.
• Compatibility with non-Dirt King aftermarket parts must be confirmed by the applicable manufacturer.

Contact sales@bajaracingparts.com for fitment help.

Ships directly from the manufacturer.
