Dirt King Long Travel Kit | 2010–2014 Toyota FJ Cruiser / 2010–2024 Toyota 4Runner / 2010–2023 Lexus GX460

Overview

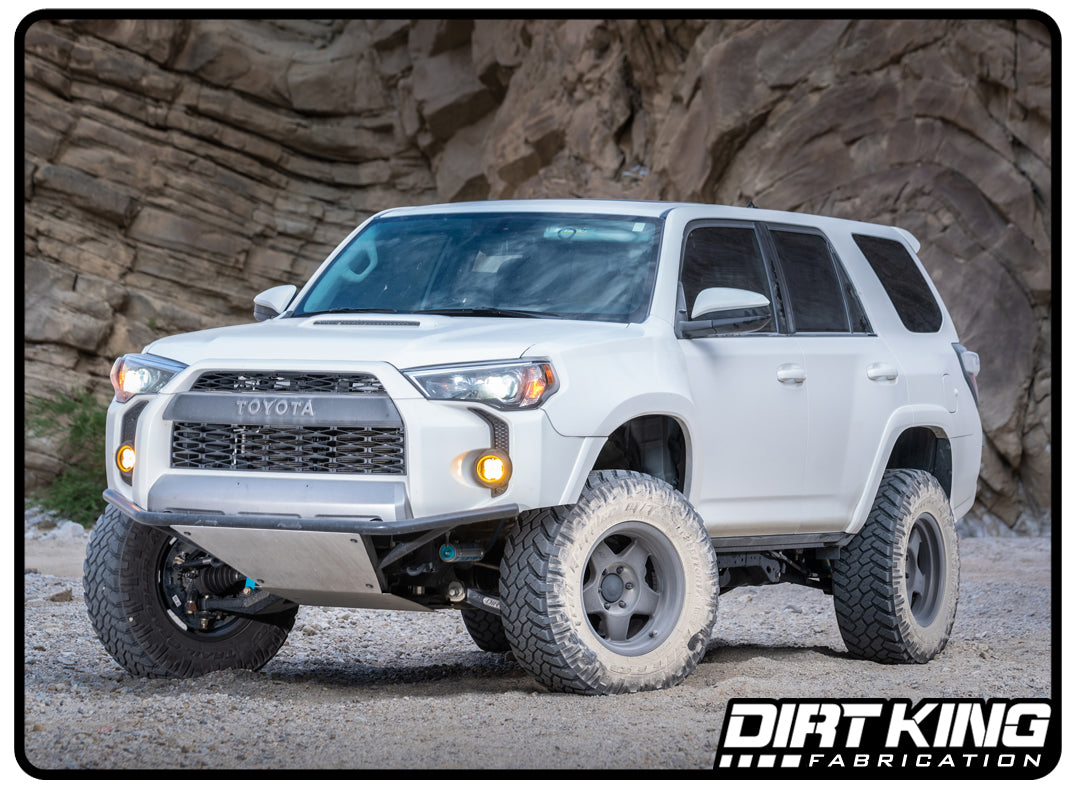

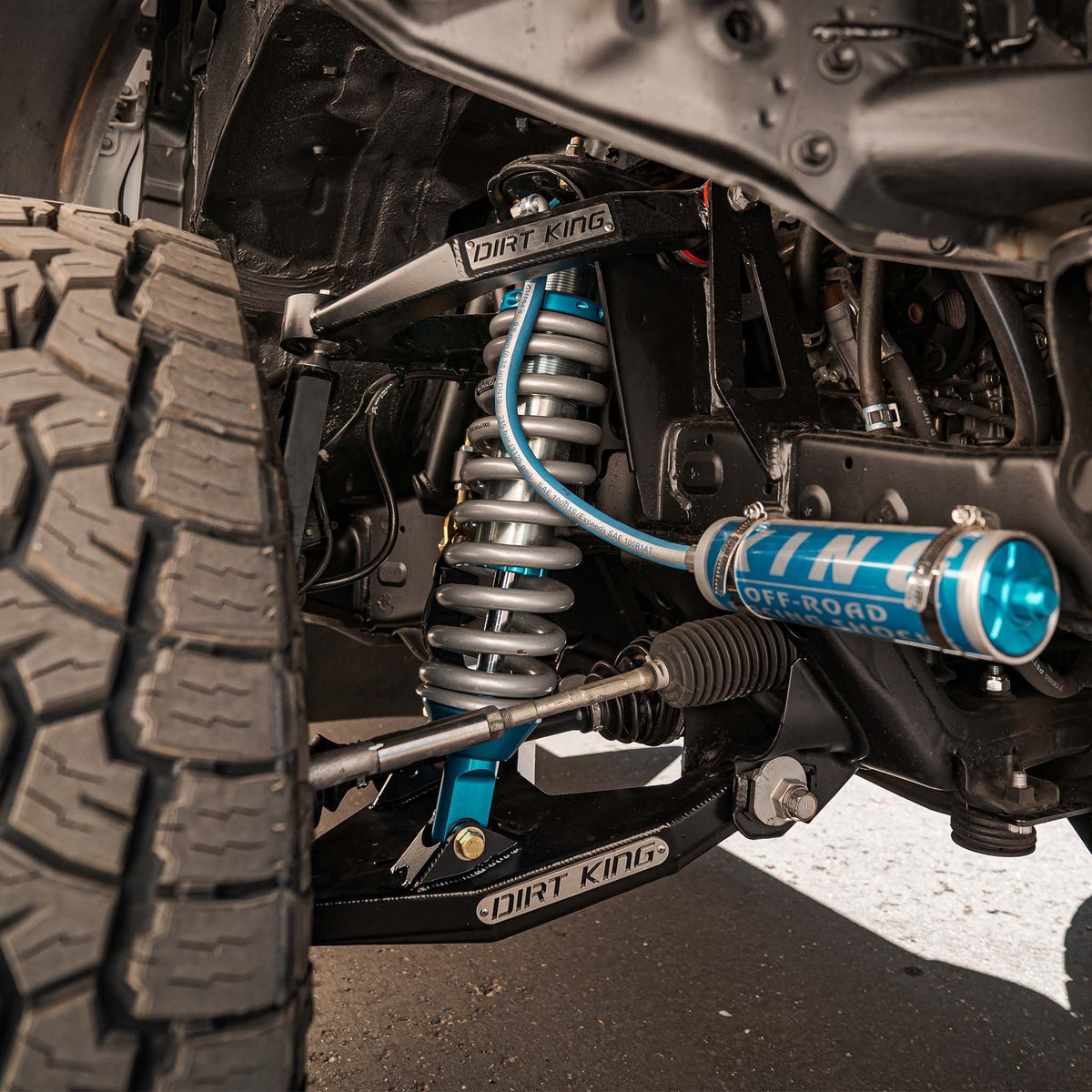

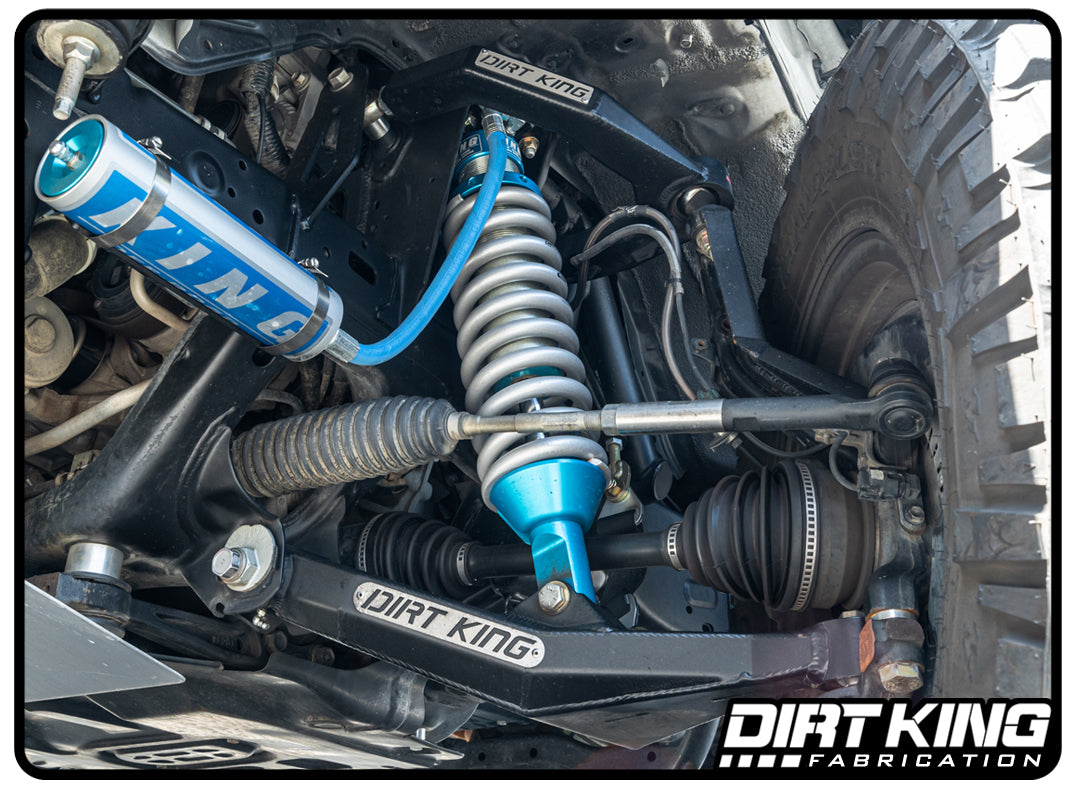

Dirt King’s long travel kit is designed to improve off-road handling while keeping predictable street manners. It provides up to 13.5 inches of front wheel travel, widens the track 3.5 inches per side and supports up to a 35-inch tire with the required clearance work. The boxed upper and lower control arms use 1-inch stainless steel uniballs at the outer pivots, and the lower arms retain the factory mounting location for added ground clearance.

Ships directly from the supplier.

Vehicle fitment

• 2010–2014 Toyota FJ Cruiser — 2WD or 4WD, without KDSS
• 2010–2024 Toyota 4Runner — 2WD or 4WD, without KDSS
• 2010–2023 Lexus GX460 — 4WD, without KDSS

Front fiberglass is required. Contact Baja Racing Parts before ordering if the vehicle uses lift spindles or a bracket lift. Compatibility with parts from other manufacturers must be confirmed by that manufacturer.

Features

• Bolt-on design with minimal vehicle modification
• Probearing bearings and 4130 chromoly uniball cups
• Choice of polyurethane-bushing or 3/4-inch-heim upper control arms
• Delrin lower-control-arm bushings
• Zinc-plated inner sleeves and grease fittings

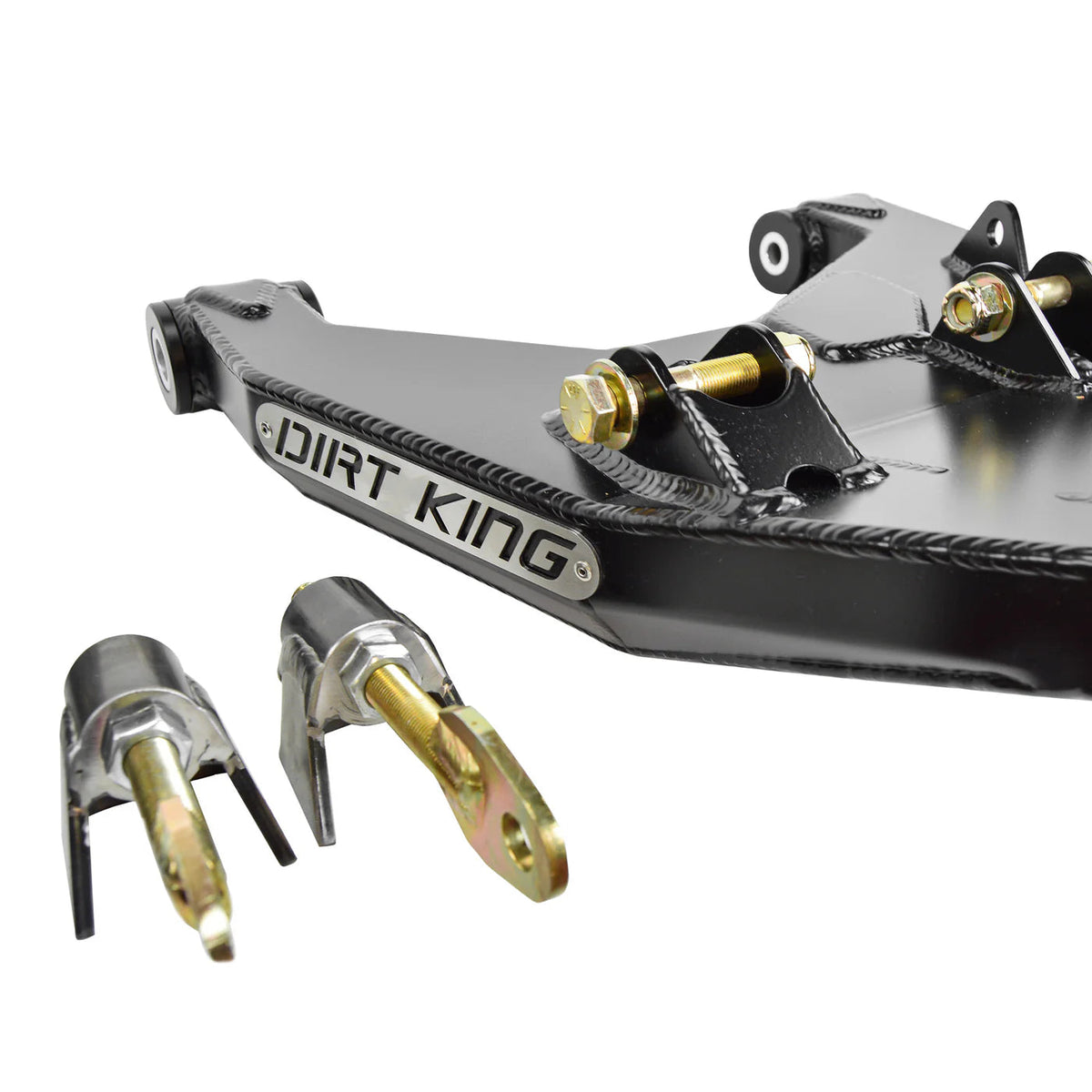

• Boxed 3/16-inch and 1/8-inch plate construction with internal reinforcement
• Integrated provisions for bump stops, limit straps and bypass shocks
• Designed, tested and manufactured in the United States

Specifications

Wheel travel

13.5 inches

Lift range

0–4 inches

Track width

3.5 inches wider per side

Maximum tire size

35 inches

Maximum wheel backspacing

4.75 inches

Minimum wheel diameter

16 inches

Coilover

Dirt King specification

Bypass shock

Dirt King specification

Bump stop

2.0 × 2.0 inches

Installation notes

• Four-wheel-drive applications require a 1-inch differential drop and machining of the inner CV joints to achieve full travel. Dirt King offers the required axle services and complete axle assemblies.
• Dirt King specification shocks are recommended. Some Tacoma OEM-replacement coilovers can be used with the correct spring and top spacer, but they reduce available travel.
• The optional bypass hoop requires welding and frame modifications.
• Running 35-inch tires requires wheel-well clearance work, flattening the firewall pinch weld and modifying the cab mount.

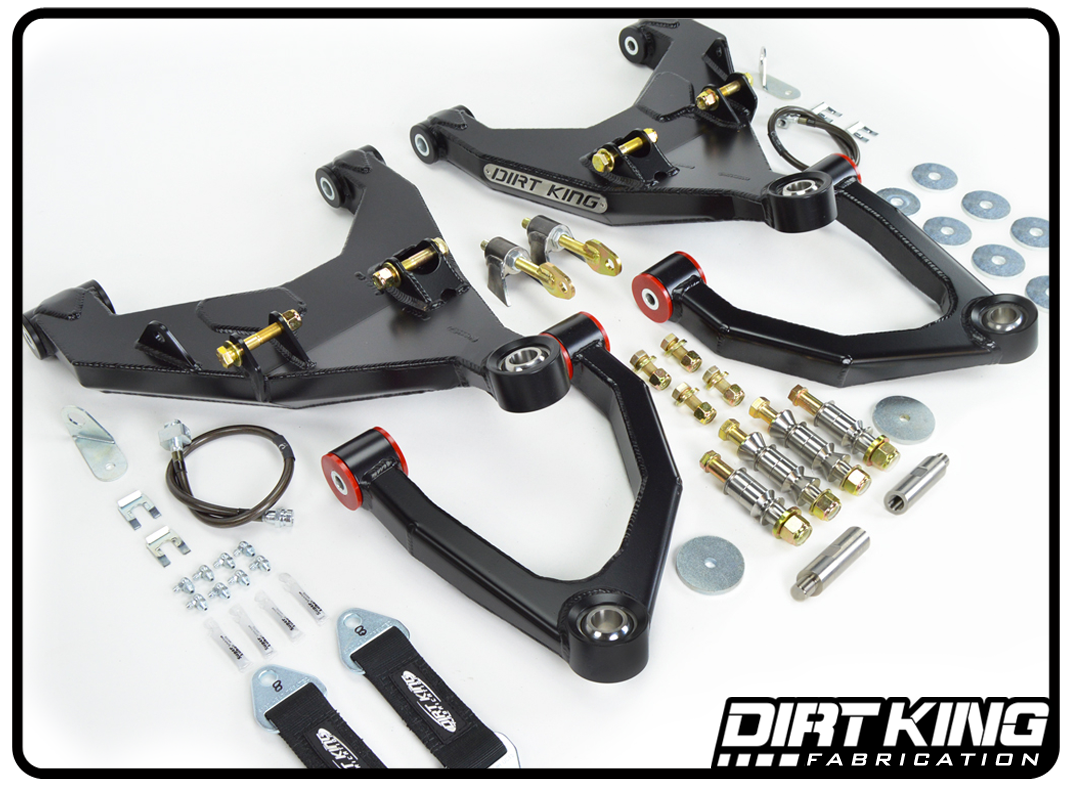

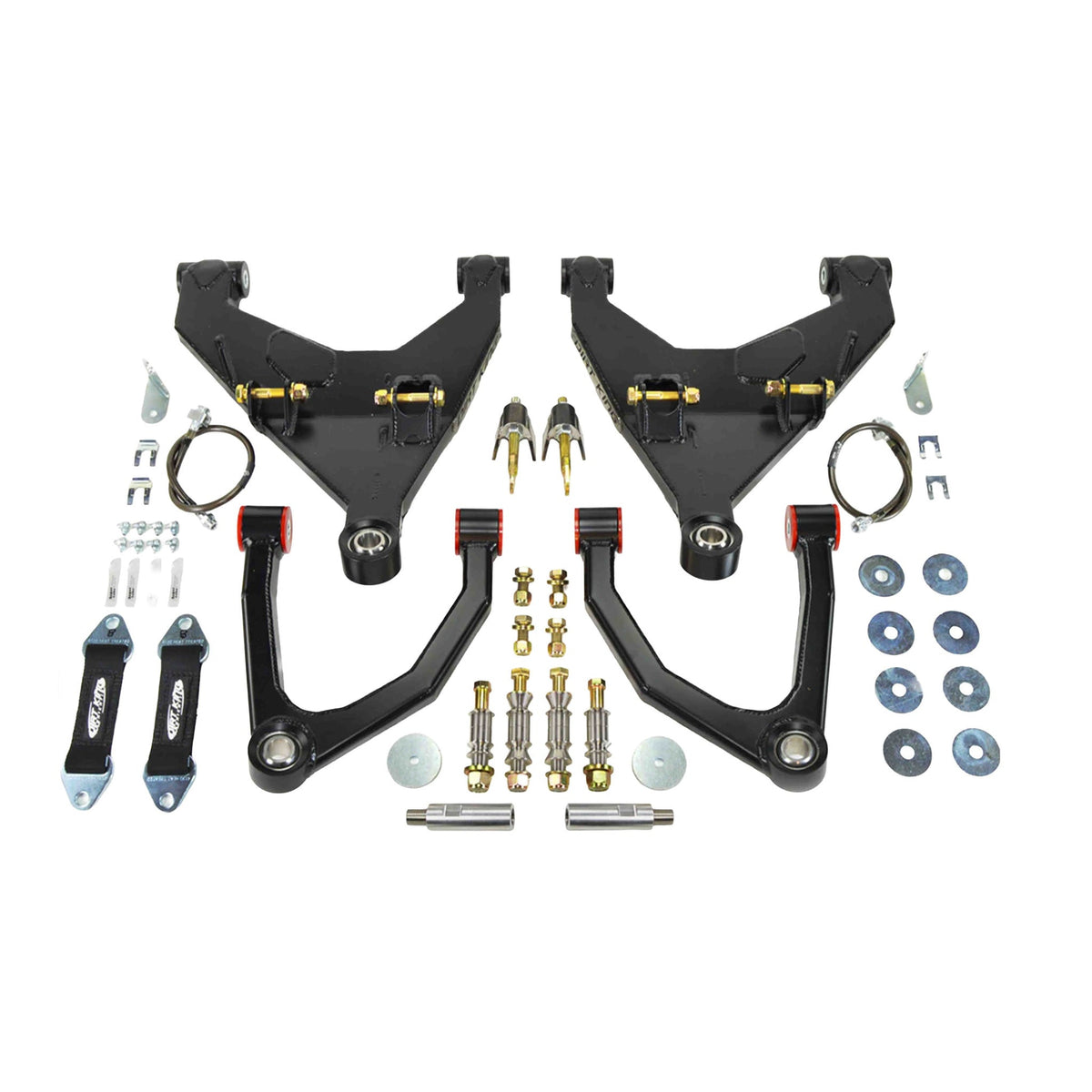

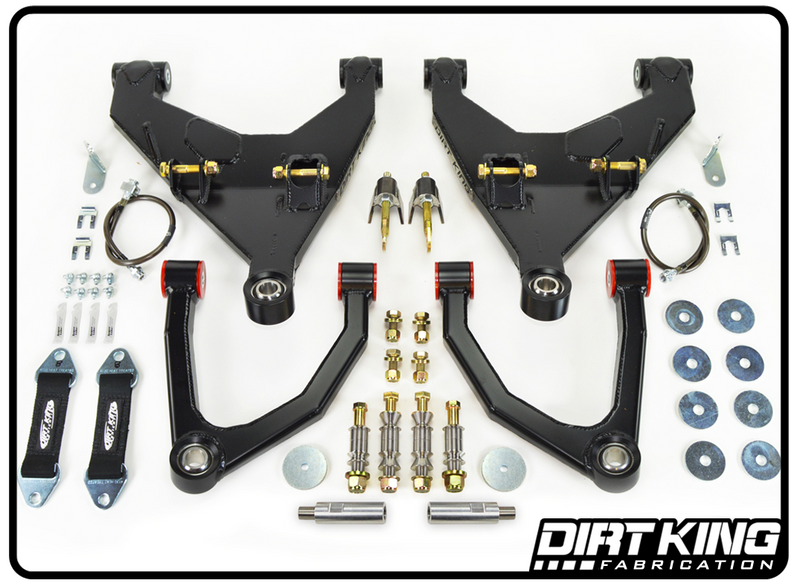

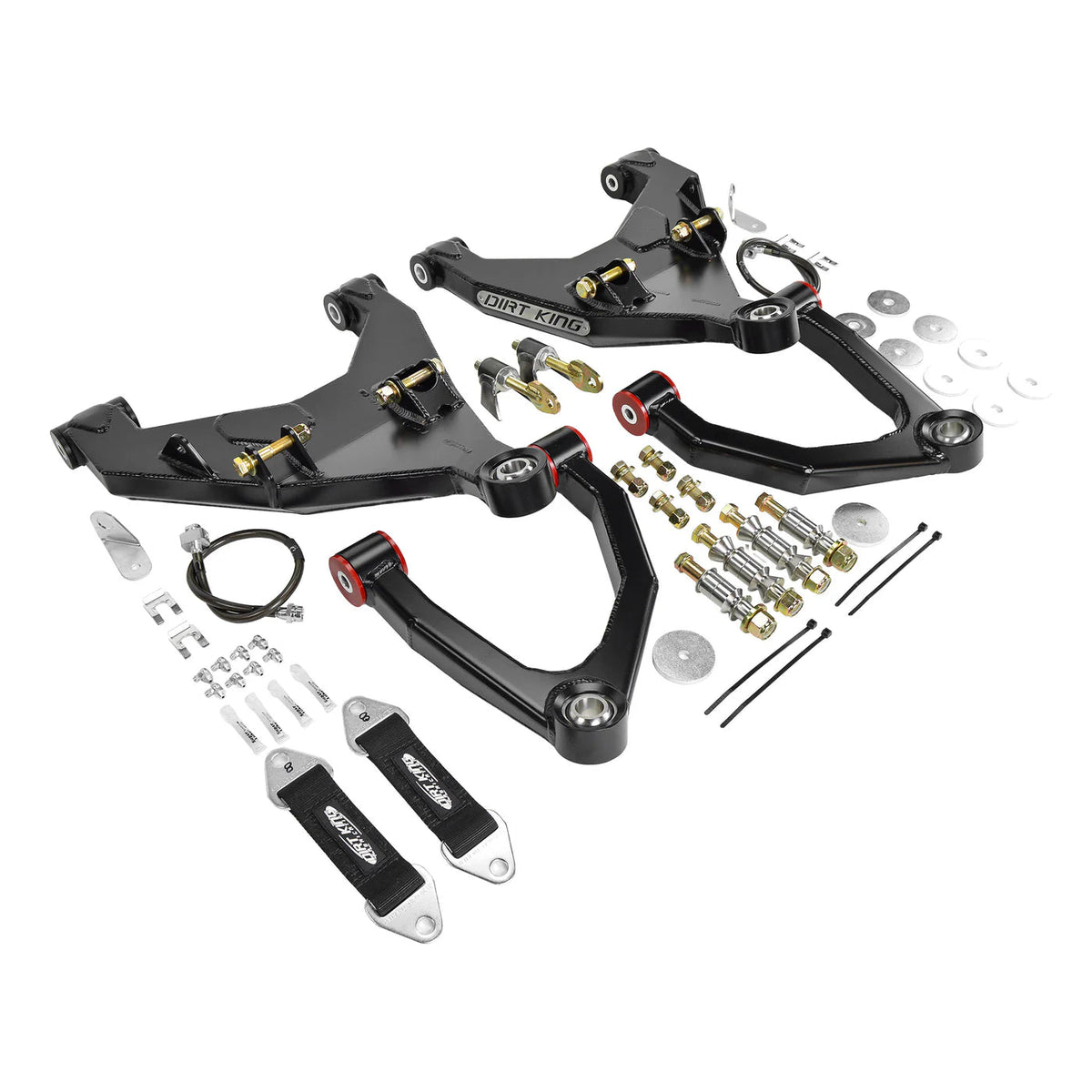

What’s included

• Boxed upper and lower control arms

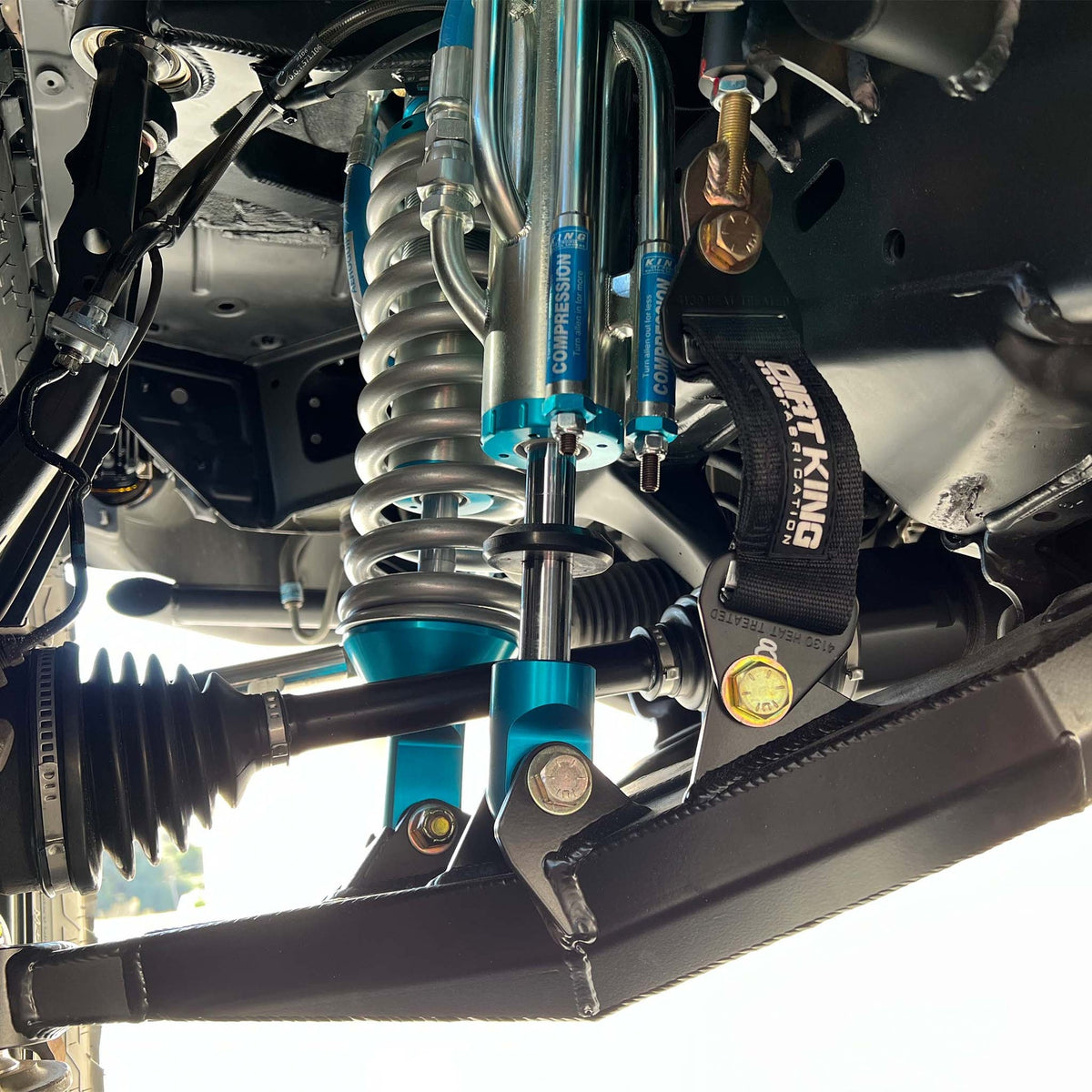

• 8-inch quad-wrapped limit straps
• Weld-on adjustable limit-strap mounts

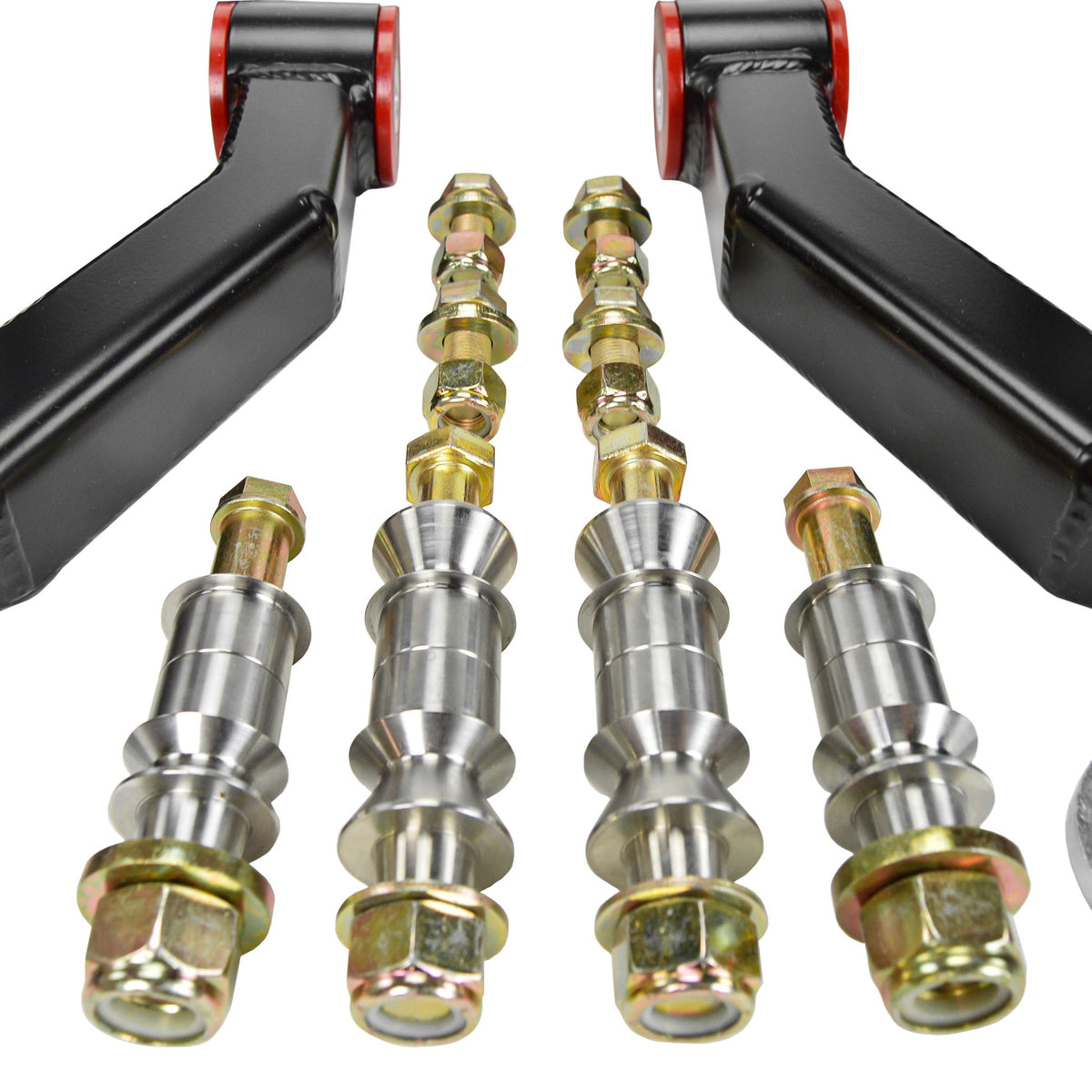

• 17-4 stainless-steel misalignment spacers and tie-rod extensions
• DOT-approved extended brake lines
• Grade 8 mounting hardware
• Zinc-plated bushing washers
• Bump-stop spacers
