Dirt King Long Travel Kit | 2015–2022 Chevrolet Colorado / 2015–2022 GMC Canyon

Overview

The Dirt King long travel kit was developed to drastically improve the vehicles off-road handling without compromising its day to day driving characteristics. This suspension system allows for 13.5” of travel and accepts up to a 35” tire. Dirt King's upper and lower arms are designed with 1” stainless steel uniballs for the outer pivots instead of ball joints for strength and increased articulation. This kit is CAD designed, thoroughly tested, and 100% made in America resulting in a product Dirt King is proud to put Dirt King's name on!

Specifications

• Wheel Travel: 13.5”
• Amount of Lift: 0-4”
• Track Width: 3.5” wider per side
• Maximum Tire Size: 35”
• Maximum Backspacing: 4.75”
• Minimum Rim Size: 16”
• Bump Stop Size: 2.0” x 2.0”
• Coilover Shock Size: Dirt King Spec
  *Layout & dims available on request (valving info not provided)

Wheel Travel
In order to achieve 13.5” of travel the factory bump stop must be cut off. The kit allows for 12.5” of travel without removing the bump stop.

Tire Info
When using 35” tires with this kit modifications to the wheel wells are required. The firewall pinch weld will need to be folded over for clearance. The upper wheel well will also need to be modified to avoid contact at full bump.

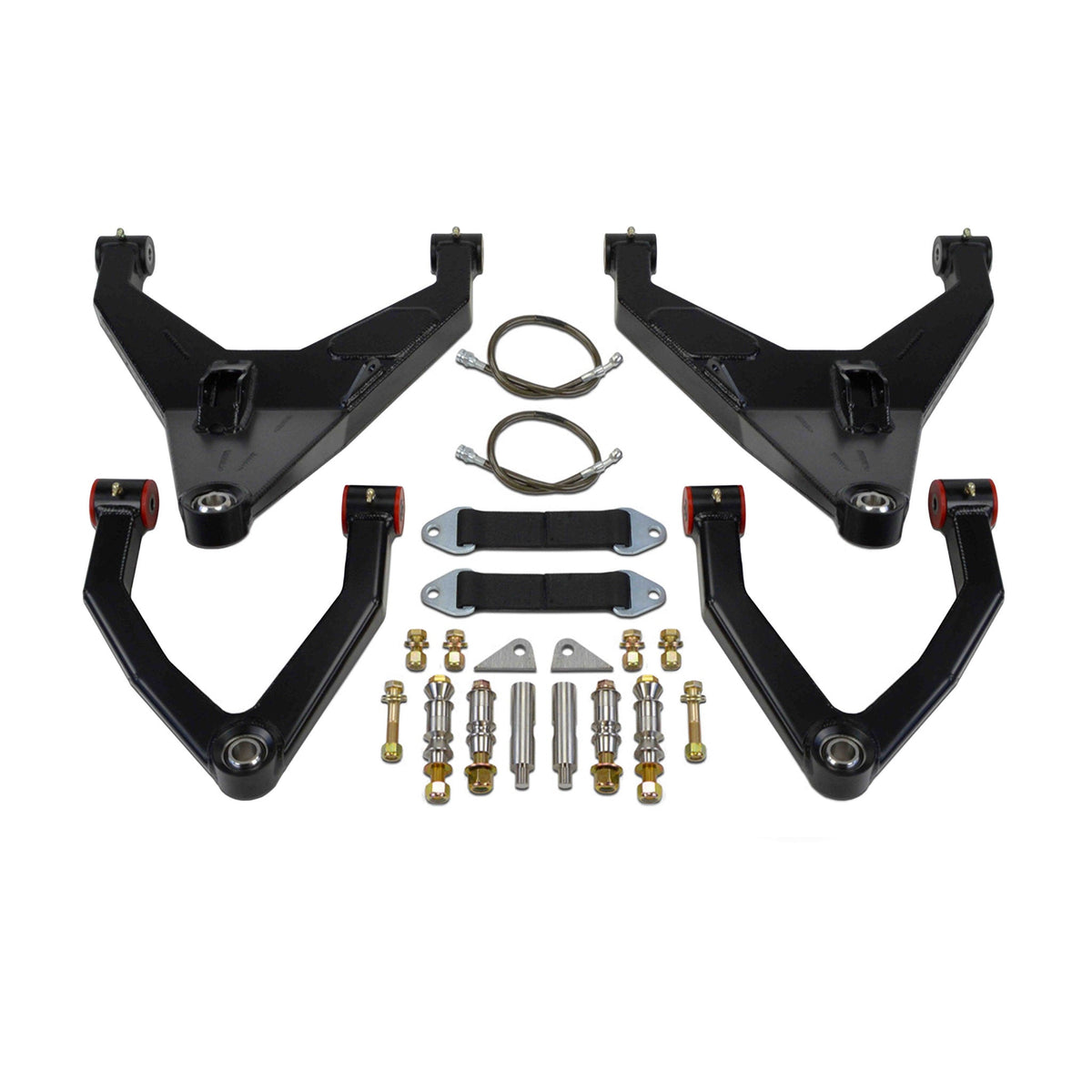

What's included

• Boxed plate upper control arms
• Boxed plate lower control arms
• 9" quad wrapped limit straps
• Weld on adjustable limit strap mounts
• 17-4 stainless steel misalignment spacers
• 17-4 stainless steel tie rod extensions
• DOT approved extended brake lines
• Grade 8 mounting hardware
• Probearing bearings

Features

• Bolt on application, minimal modifications required
• Utilizes Probearing bearings
• 4130 chromoly uniball cups
• Polyurethane bushings for the UCA’s
• Delrin bushings for the LCA’s
• Zinc plated inner bushing sleeves
• Grease fittings for easy servicing
• 3/16" and 1/8” boxed plate construction
• Internally ribbed with extrusions for weight reduction
• Bump stop plating
• Limit strap tabbing

Installation instructions

Compatibility

2015-2022 Chevy Colorado 2WD
2015-2022 GMC Canyon 2WD
*Please contact us if you plan on installing this kit with lift spindles or a bracket lift.
*Front fiberglass required.

*This product is designed to pair with OEM and Dirt King parts. Compatibility with other brands must be approved by the respective manufacturer.

Ships directly from the supplier.
