Dirt King Long Travel Kit | 2016–2023 Toyota Tacoma

Overview

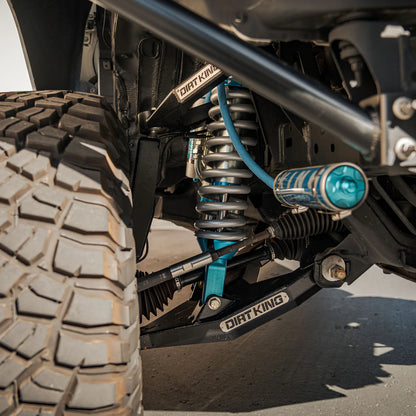

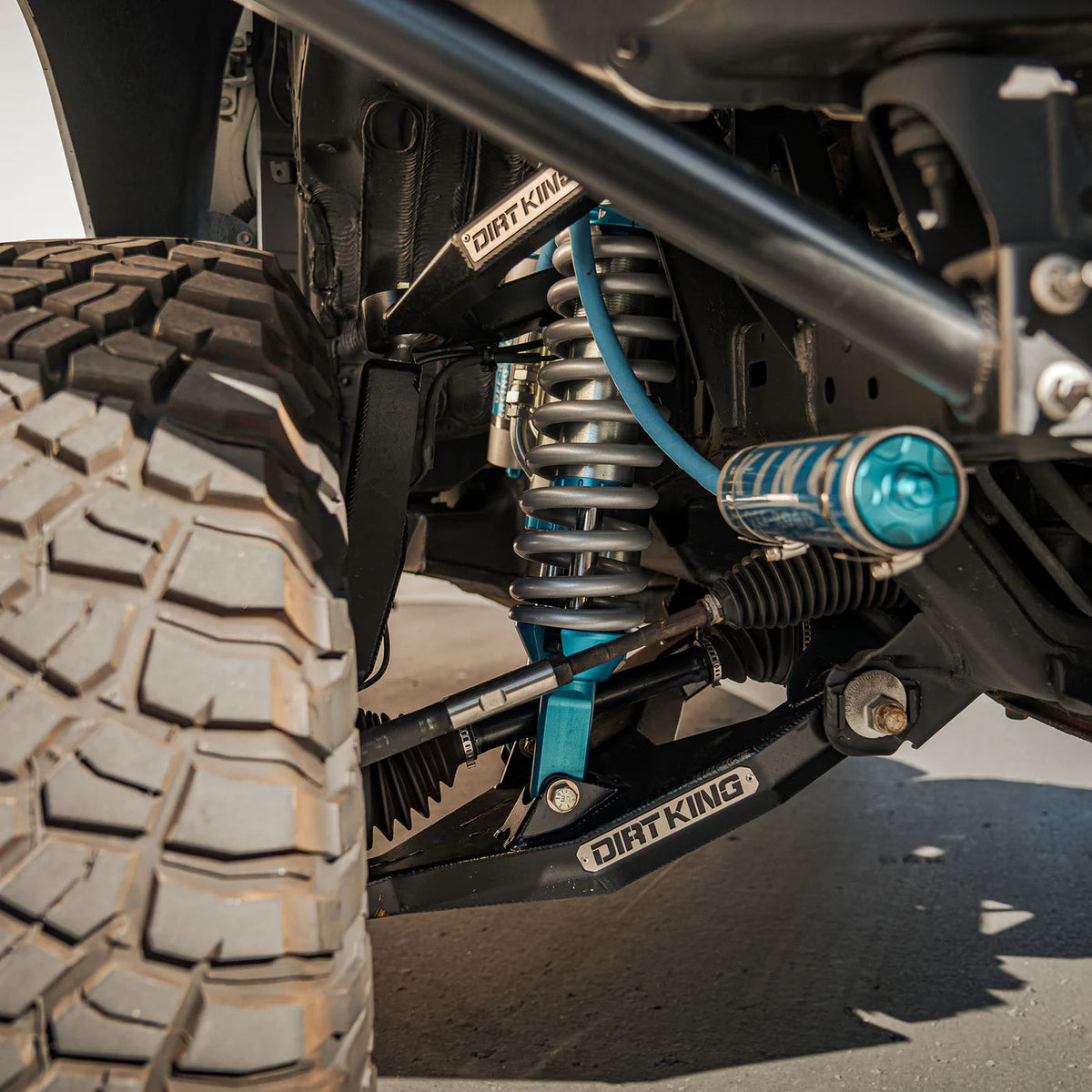

The Dirt King long travel kit is designed to improve off-road handling while retaining everyday drivability. It provides up to 13.5 inches of front wheel travel, widens the track 3.5 inches per side and supports tires up to 35 inches. Boxed upper and lower control arms use 1-inch stainless steel uniballs at the outer pivots for strength and articulation.

The lower arms mount in the factory locations to preserve ground clearance. The system is CAD designed, tested and made in the USA.

Features

• Bolt-on application with minimal modification
• Probearing bearings and 4130 chromoly uniball cups
• Choice of 3/4-inch heim joints or polyurethane upper-arm bushings
• Delrin lower-arm bushings
• Zinc-plated inner bushing sleeves and grease fittings
• Boxed 3/16-inch and 1/8-inch plate construction
• Internal ribbing with weight-reduction extrusions
• Tabs for bump stops, limit straps and bypass shocks

Specifications

Wheel travel

13.5 inches

Lift range

0–4 inches

Track width

3.5 inches wider per side

Maximum tire size

35 inches

Maximum backspacing

4.75 inches

Minimum wheel size

16 inches

Coilover and bypass shock size

Dirt King Spec

Bump stop size

2.0 × 2.0 inches

4WD requirements

Full suspension travel on 4WD models requires a 1-inch differential drop and machining of the inner CV joints for additional articulation. Choose either the axle-shaft package or complete axle-assembly package from the dropdown.

Shock and tire notes

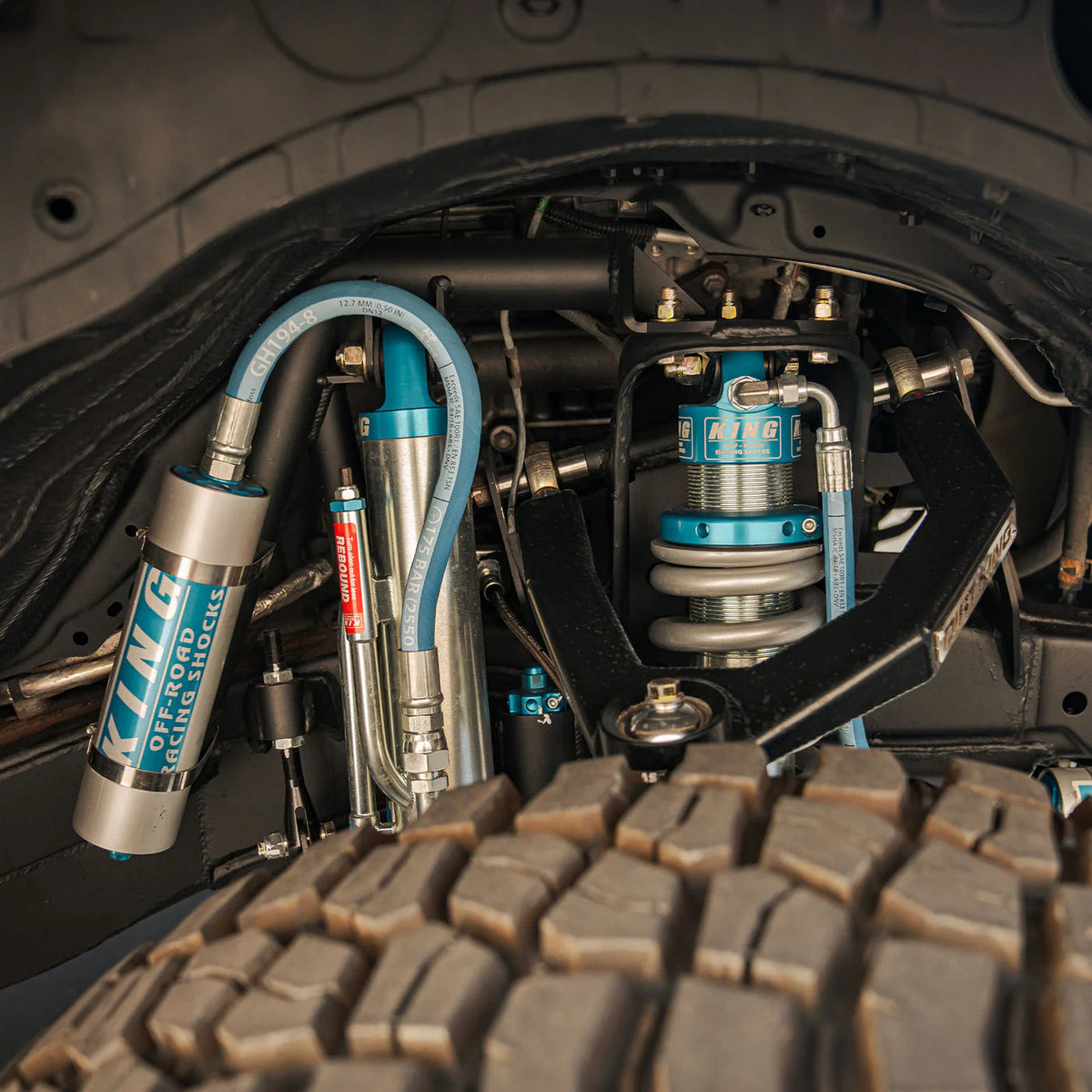

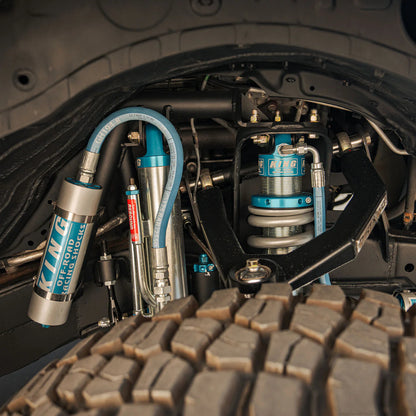

Dirt King Spec shocks provide the intended performance and full travel. Compatible Tacoma replacement coilovers may be used with 600-pound springs, 1.5-inch-wide lower eyelet spacers and 1/2-inch mounting holes, but they can limit wheel travel. Bypass shocks require the separately available DK-811910 weld-on bypass hoop kit. Bump-stop installation also requires welding and frame modification.

Using 35-inch tires requires wheel-well modifications, including folding the firewall pinch weld, shaving the front cab mount and checking upper wheel-well clearance at full bump.

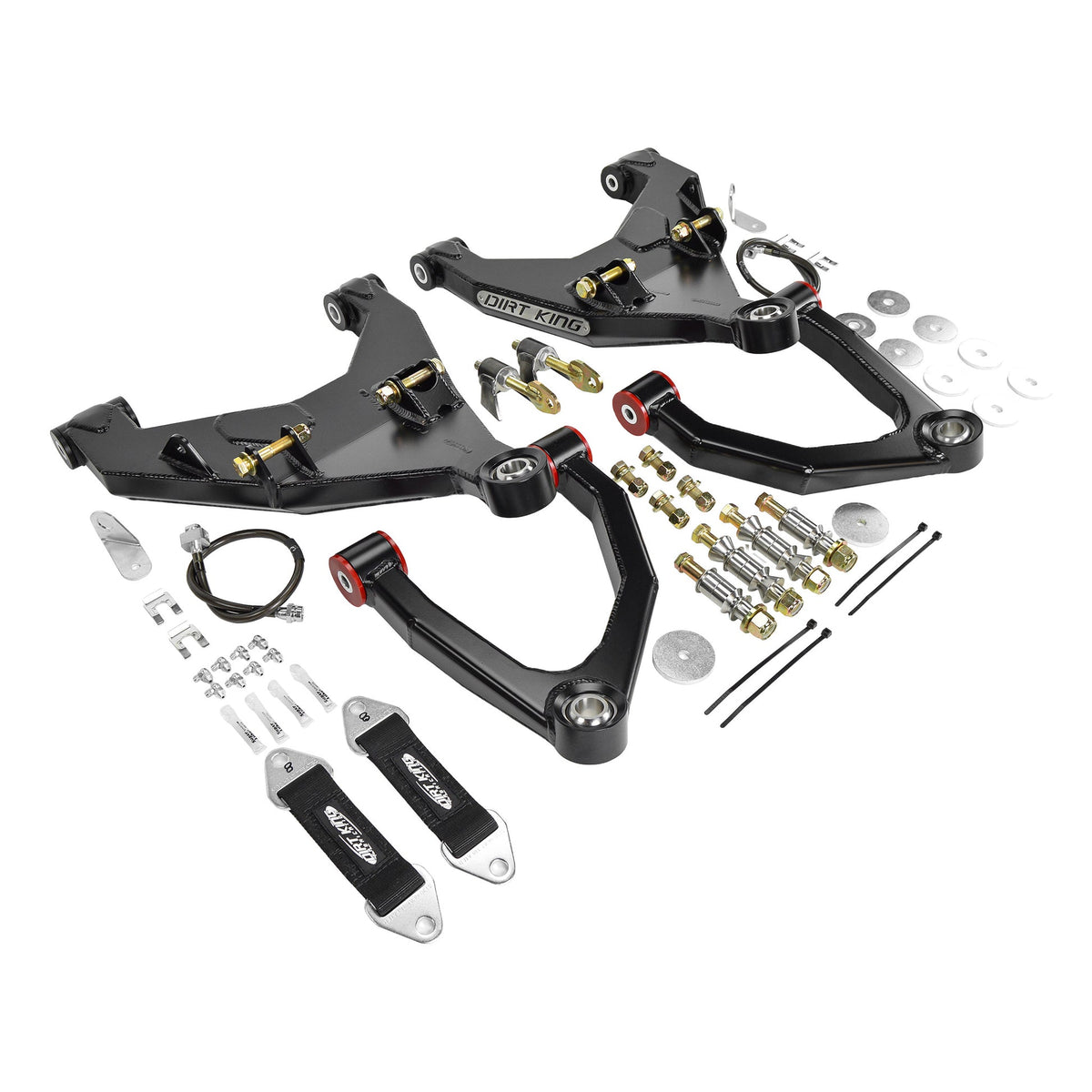

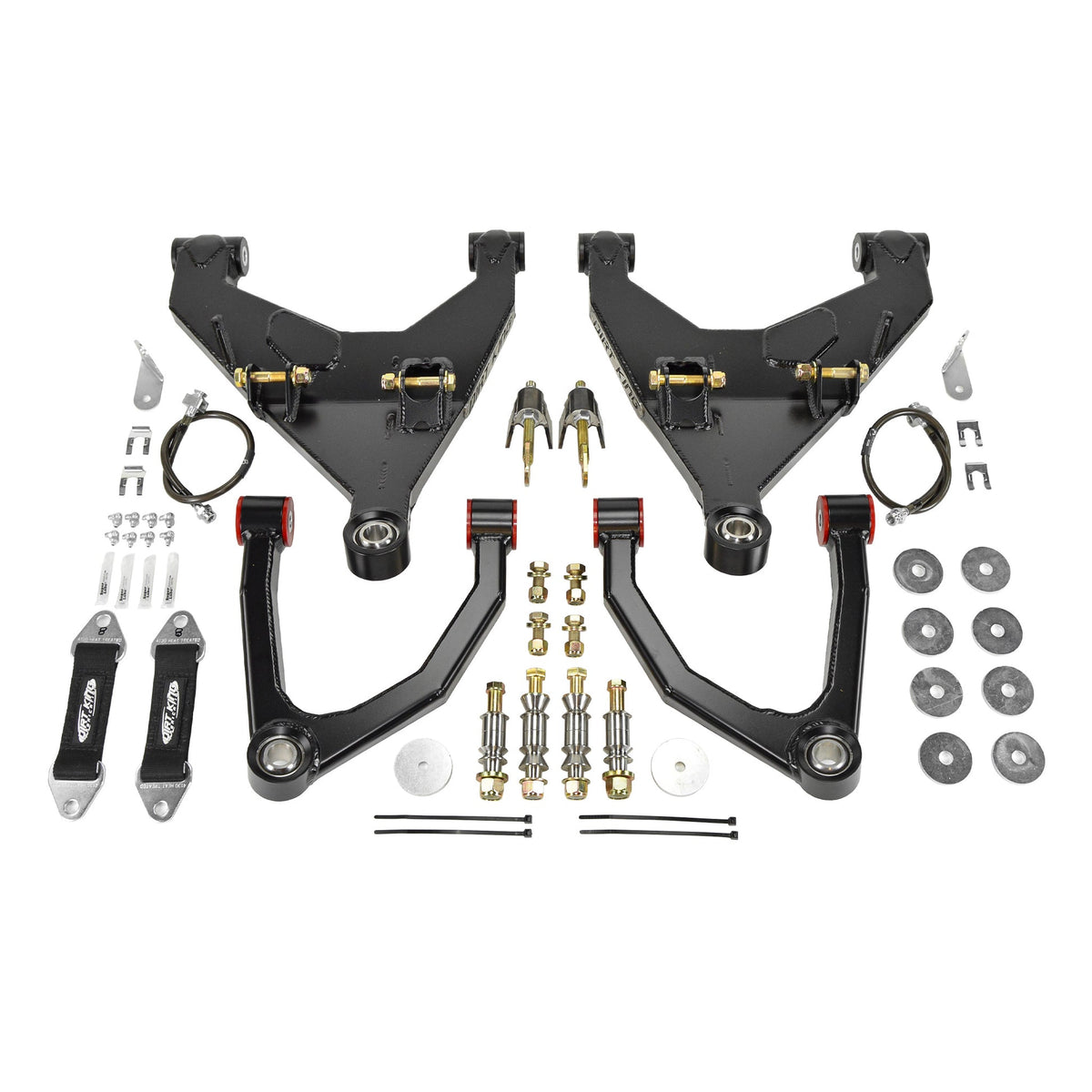

What's included

• Boxed upper and lower control arms
• 8-inch quad-wrap limit straps
• Weld-on adjustable limit-strap mounts

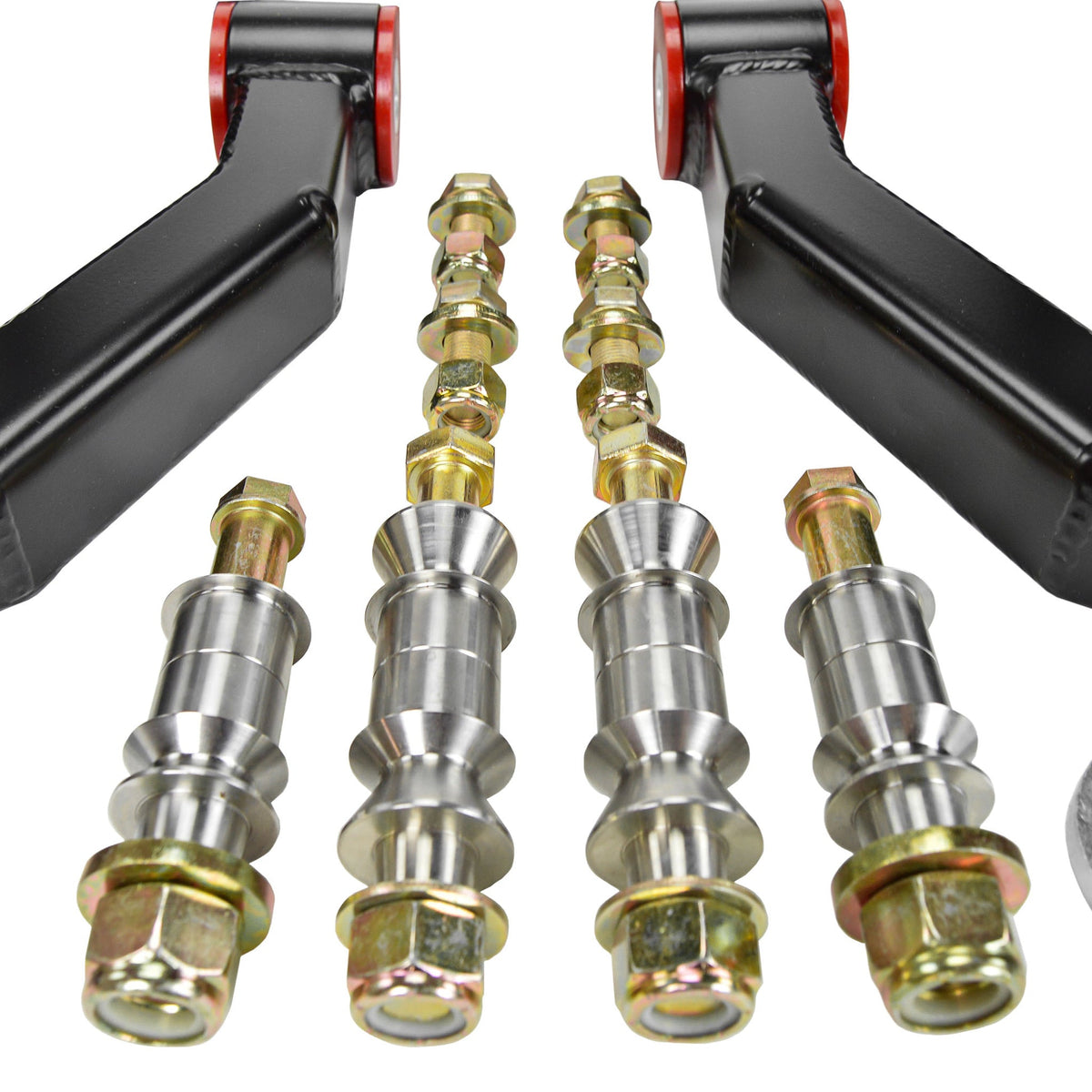

• 17-4 stainless steel misalignment spacers
• 17-4 stainless steel tie-rod extensions
• DOT-approved extended brake lines
• Grade 8 mounting hardware
• Zinc-plated bushing washers
• Bump-stop spacers

Vehicle fitment

• 2016–2023 Toyota Tacoma — 2WD and 4WD

Contact us before installing this kit with lift spindles or a bracket lift. Front fiberglass is required. This product is designed to pair with OEM and Dirt King components; compatibility with other brands must be approved by the respective manufacturer.

Ships directly from the supplier.
