Dirt King Performance Lower Control Arms | 2003–2024 Toyota 4Runner / 2007–2014 FJ Cruiser
Dirt King Performance Lower Control Arms | 2003–2024 Toyota 4Runner / 2007–2014 FJ Cruiser
Dirt King
SKU:DK-812704
Couldn't load pickup availability
Overview

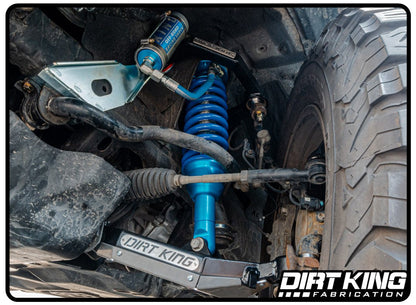

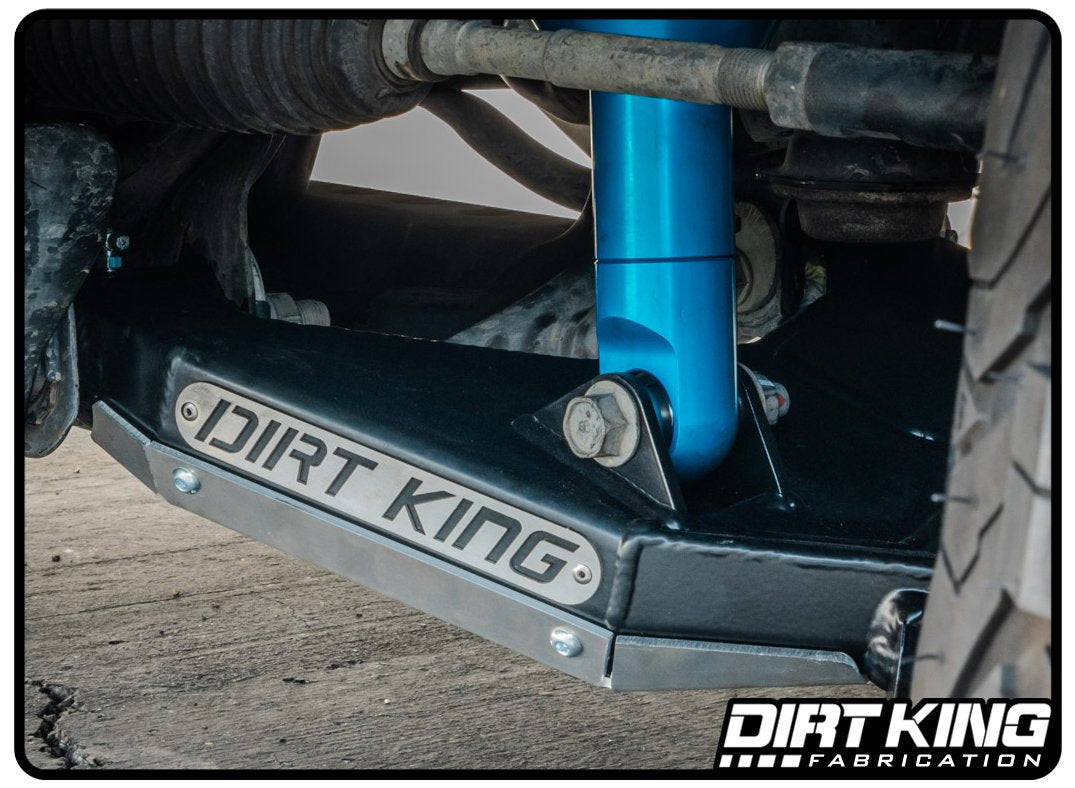

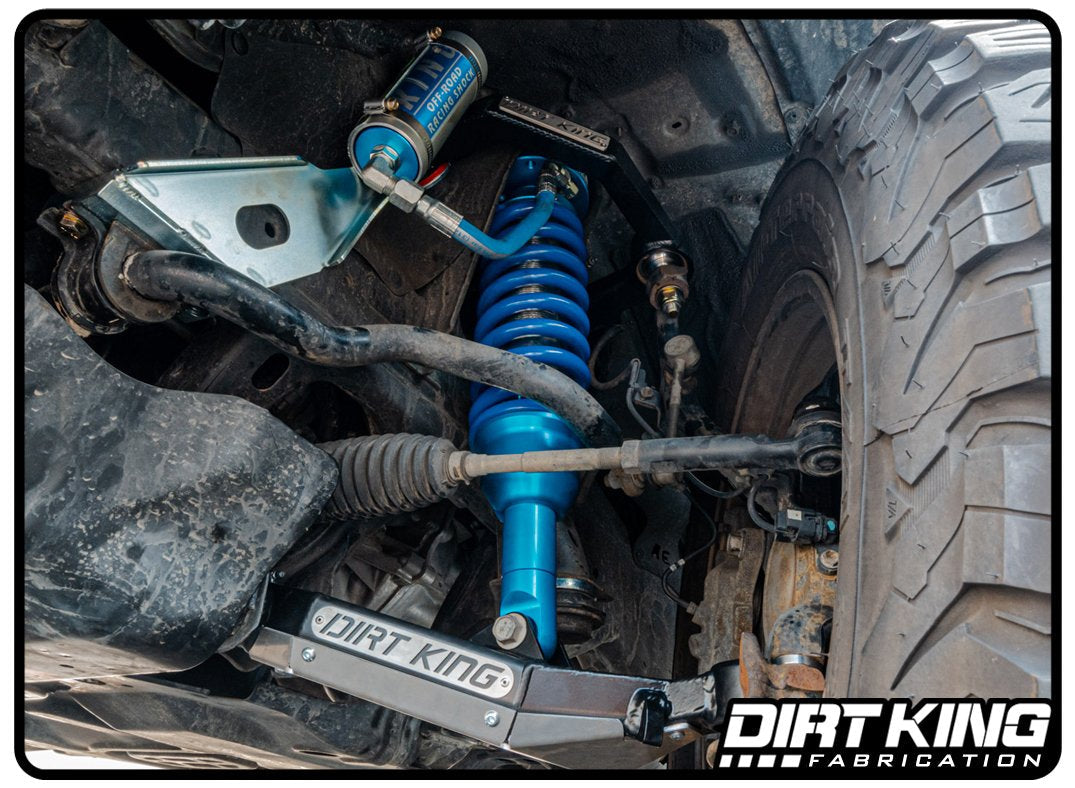

Dirt King Performance Lower Control Arms strengthen the vulnerable front lower-arm position while preserving smooth on-road handling. The boxed, internally ribbed arms add ground clearance and use replaceable 1/8-inch aluminum skid plates to protect key suspension components during off-road impacts.
The 2003–2009 4Runner and 2007–2009 FJ Cruiser applications use heavy-duty Moog ball joints. The 2010–2024 4Runner and 2010–2014 FJ Cruiser applications use heavy-duty Mevotech ball joints. Both designs use PTFE-infused Delrin inner bushings, recessed shock mounts with drain holes, bump-stop provisions, limit-strap tabs and progressive steering stops.

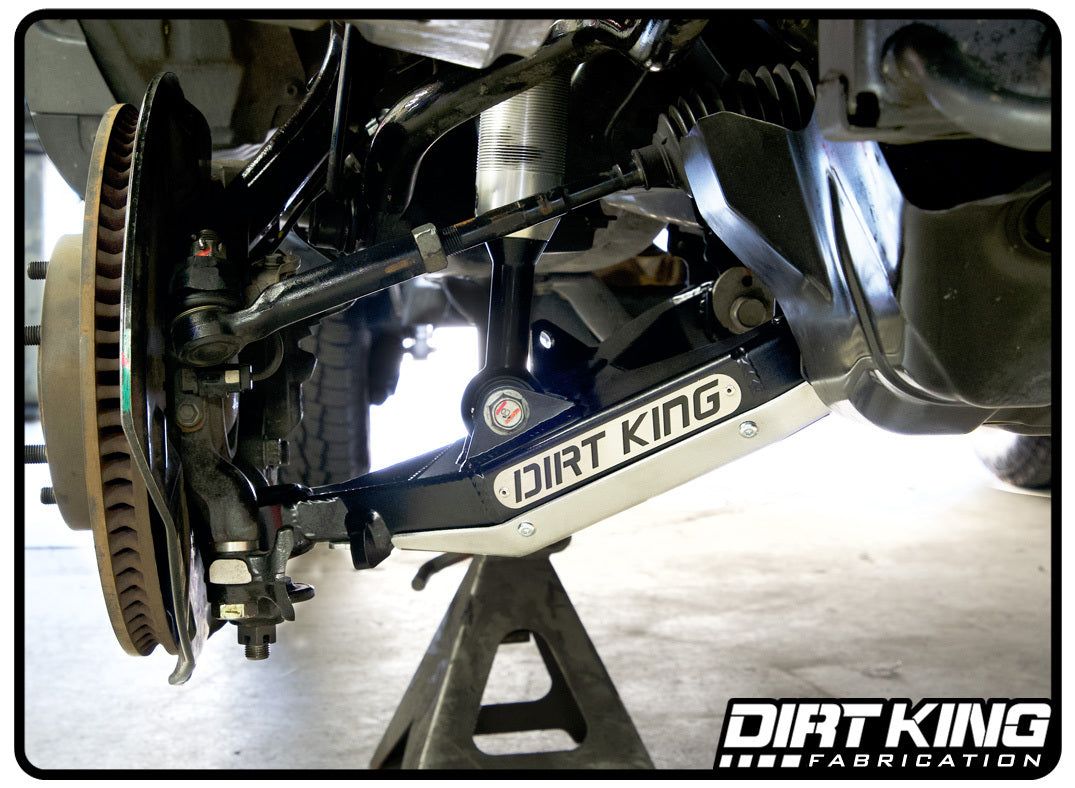

This is a direct bolt-on application supplied with the necessary mounting hardware. The arms have a durable black powder-coat finish, and the wearable components are replaceable.
Ships directly from the supplier.
Features
- CAD-designed boxed plate construction
- Slanted front plate helps deflect obstacles
- Internally ribbed with weight-reducing extrusions
- Preassembled for faster installation
- Serviceable grease-fitting ports
- Zinc-plated components for corrosion resistance
- Bump-stop plating
- Limit-strap mounting tabs
- Professionally MIG welded
- Made in the USA
Specifications
- Track width
- Stock
- Maximum tire size
- 33 inches
- Maximum backspacing
- 4.75 inches
- Minimum wheel size
- 16 inches
- Factory sway-bar compatible
- Yes
- Bump-stop size
- 2.0 × 2.0 inches
- Coilover shock size
- OEM-replacement coilovers
Tire clearance
Installing 35-inch tires requires modifications to the wheel wells and bumper for proper clearance.
What's included

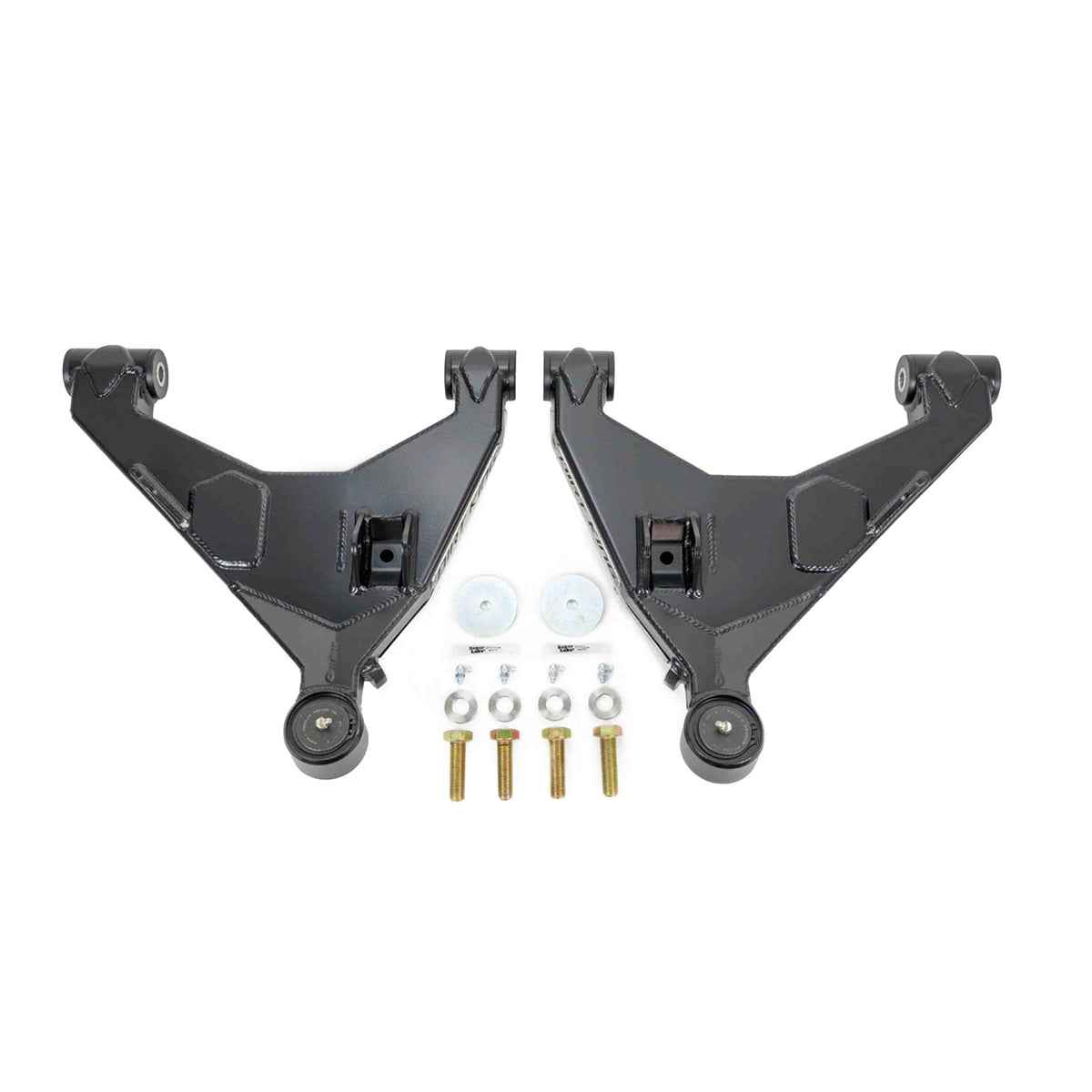

- Boxed plate lower control arms

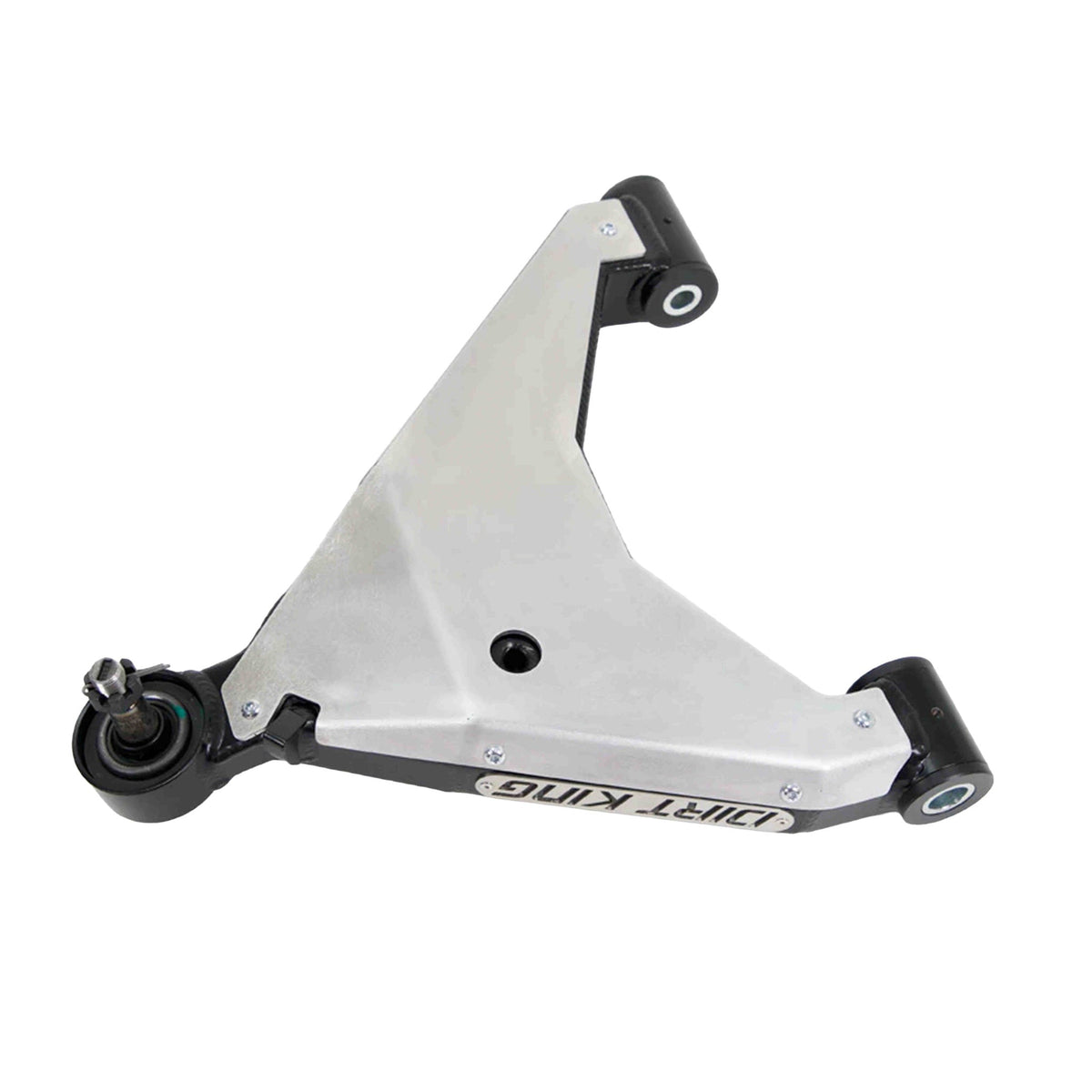

- 1/8-inch aluminum skid plates
- Delrin bushings
- Grease fittings
- Application-specific Moog or Mevotech ball joints
- Brushed stainless-steel logo plates
- Grade 8 mounting hardware
- Zinc-plated inner bushing sleeves
- Zinc-plated bump-stop spacers
- Durable black powder-coat finish
- Dirt King sticker pack
- Installation instructions
Vehicle fitment
- 2003–2009 Toyota 4Runner 2WD / 4WD — DK-812704
- 2007–2009 Toyota FJ Cruiser 2WD / 4WD — DK-812704
- 2010–2024 Toyota 4Runner 2WD / 4WD without KDSS — DK-814704
- 2010–2014 Toyota FJ Cruiser 2WD / 4WD — DK-814704
Compatibility warnings
- DK-814704 does not fit KDSS-equipped vehicles.
- Contact Baja Racing Parts before installing these arms with lift spindles or a bracket lift.
- This product is designed to pair with OEM and Dirt King parts. Compatibility with other brands must be approved by the respective manufacturer.
Part numbers and configurations
| Configuration | Part number | Price |
|---|---|---|
| 03-09 4Runner | DK-812704 | $1,849.00 |
| 07-09 FJ Cruiser | DK-812704 | $1,849.00 |
| 10-24 4Runner (No KDSS) | DK-814704 | $1,849.00 |
| 10-14 FJ Cruiser | DK-814704 | $1,849.00 |
Manufacturer Warranty
Dirt King warranty: Dirt King warrants its products against defects in materials and workmanship for the original purchaser under normal use and service, subject to its written terms and exclusions.
Baja Racing Parts is the retailer. Warranty claims follow Dirt King’s process. We can help identify the required information and start your claim.
See our Warranty Policy or email sales@bajaracingparts.com for assistance.
