Dirt King Prefab Bed Cage | 2019–2026 Chevrolet Silverado 1500 / GMC Sierra 1500

Overview

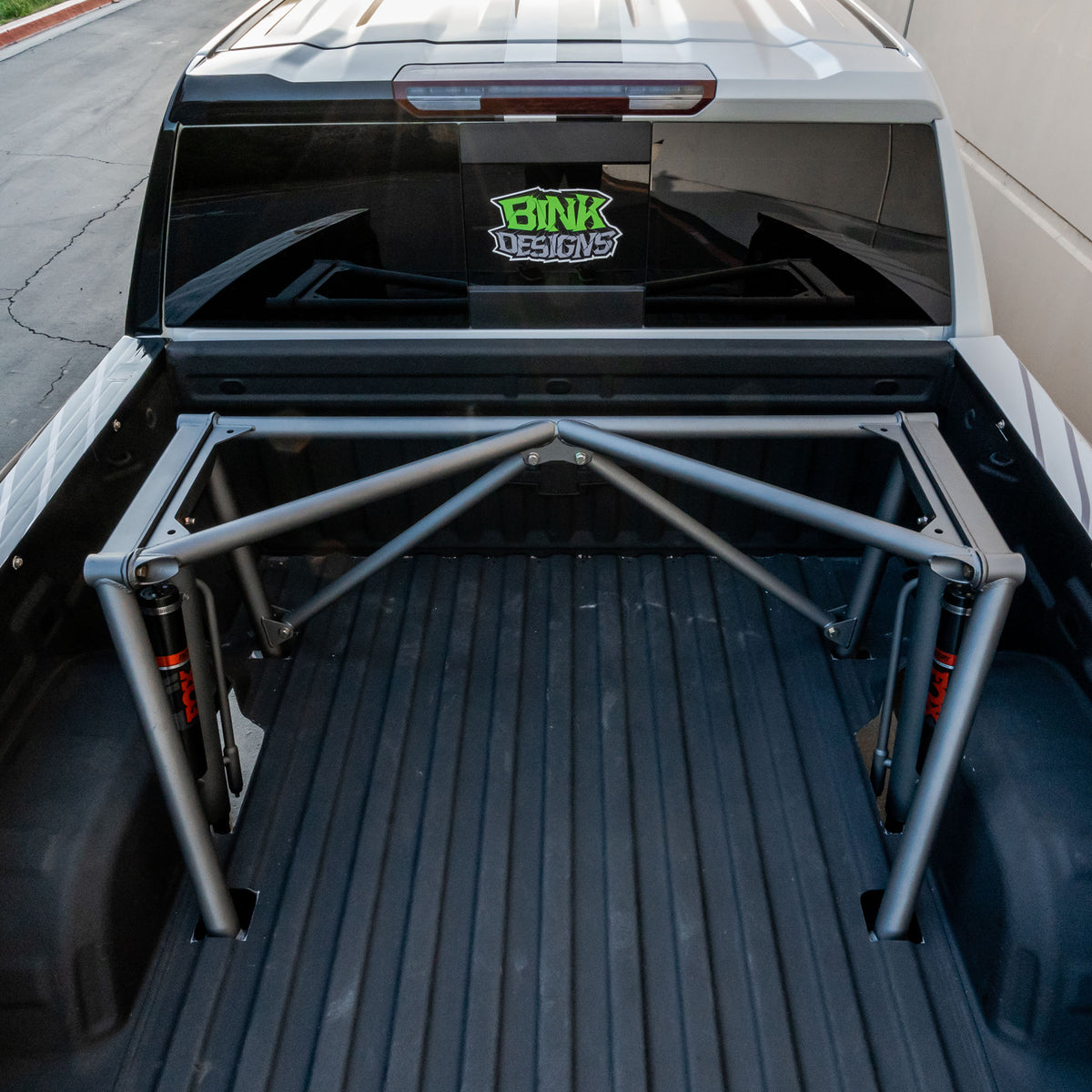

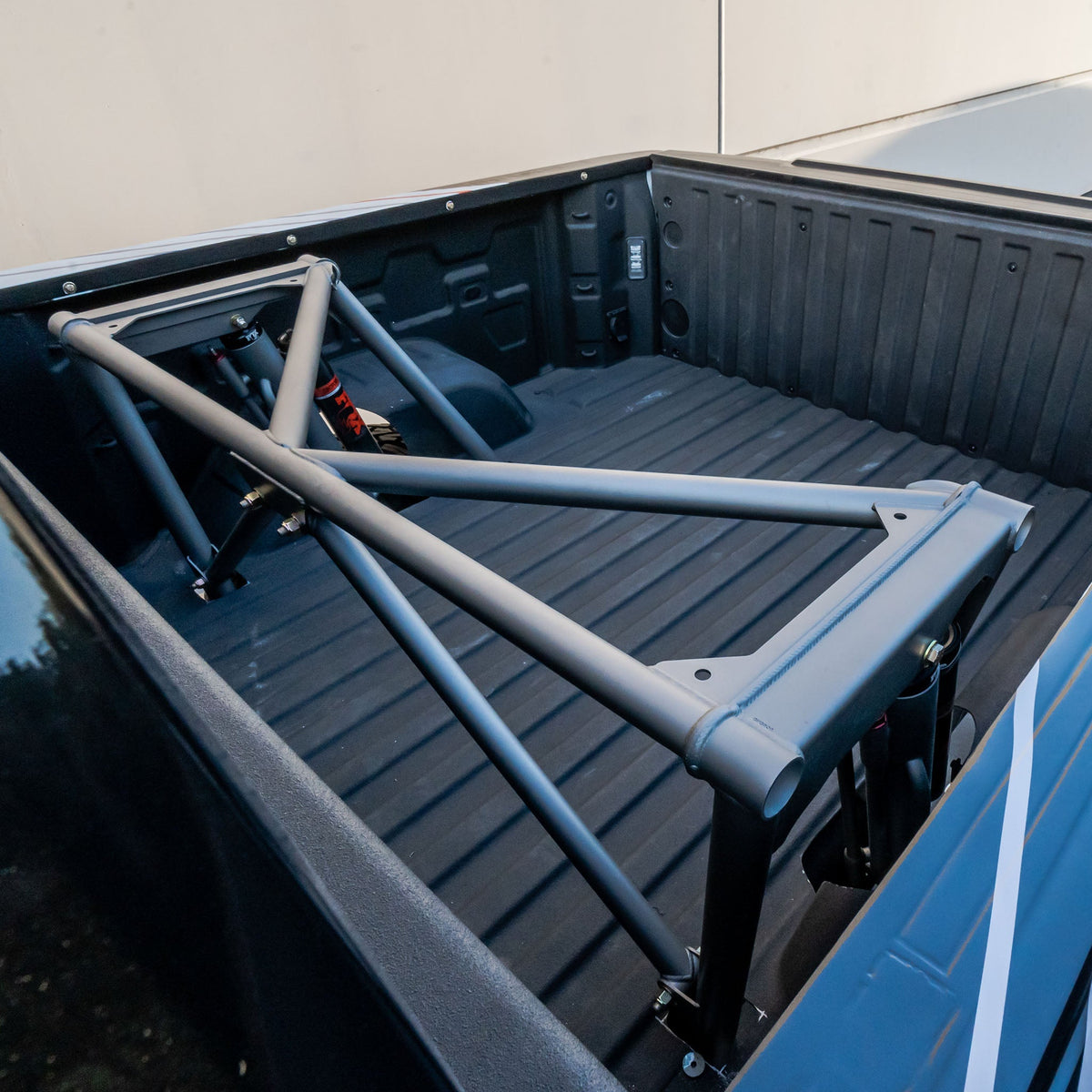

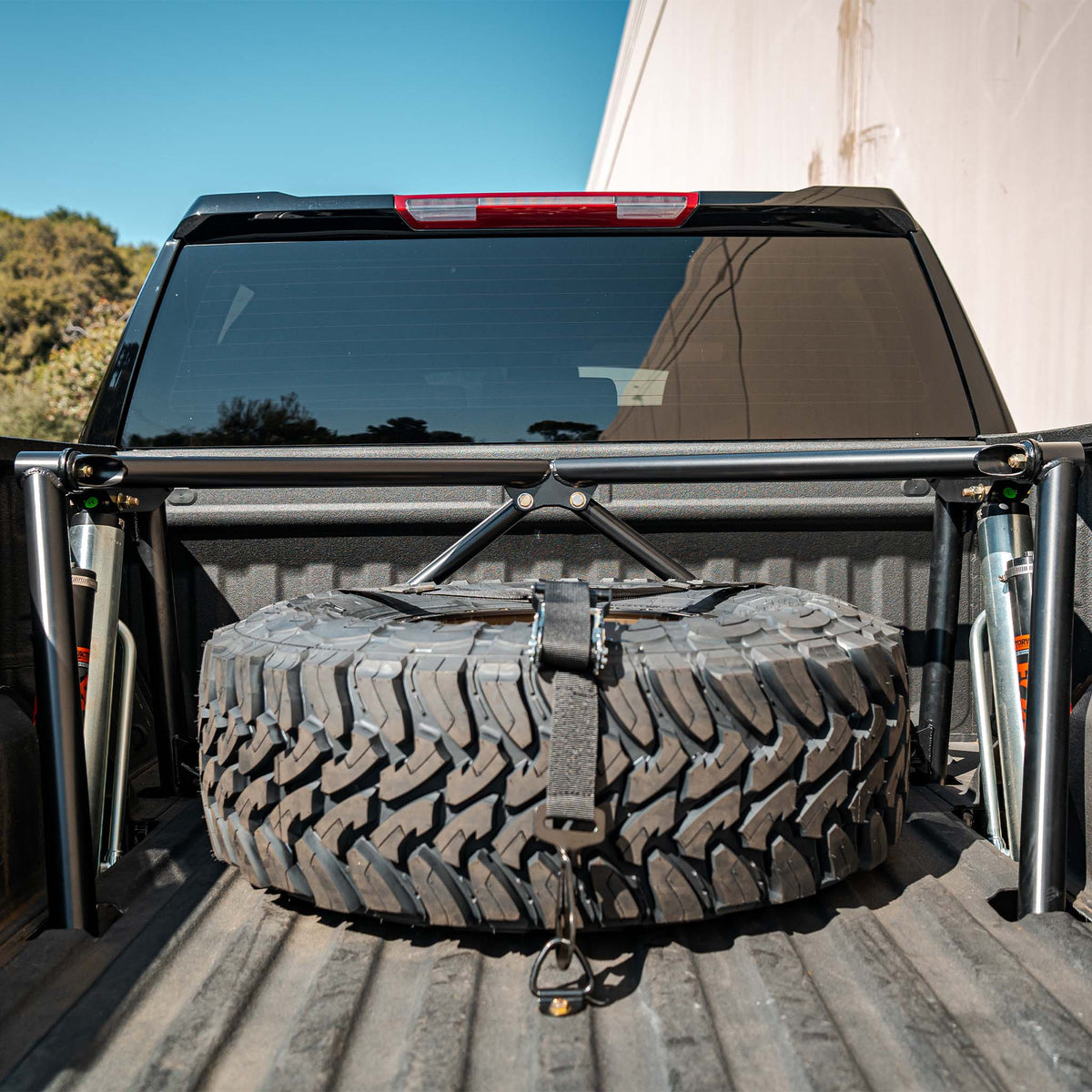

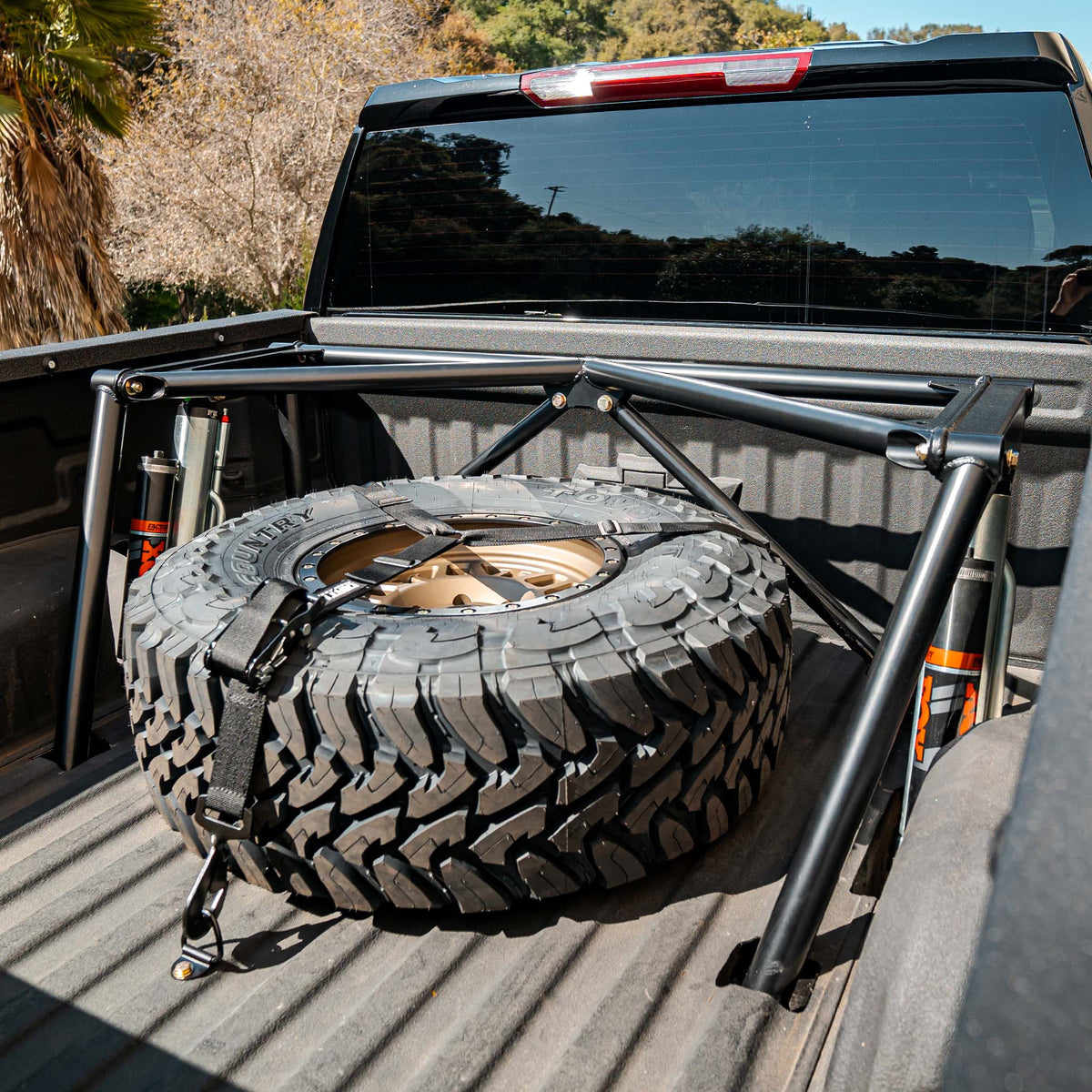

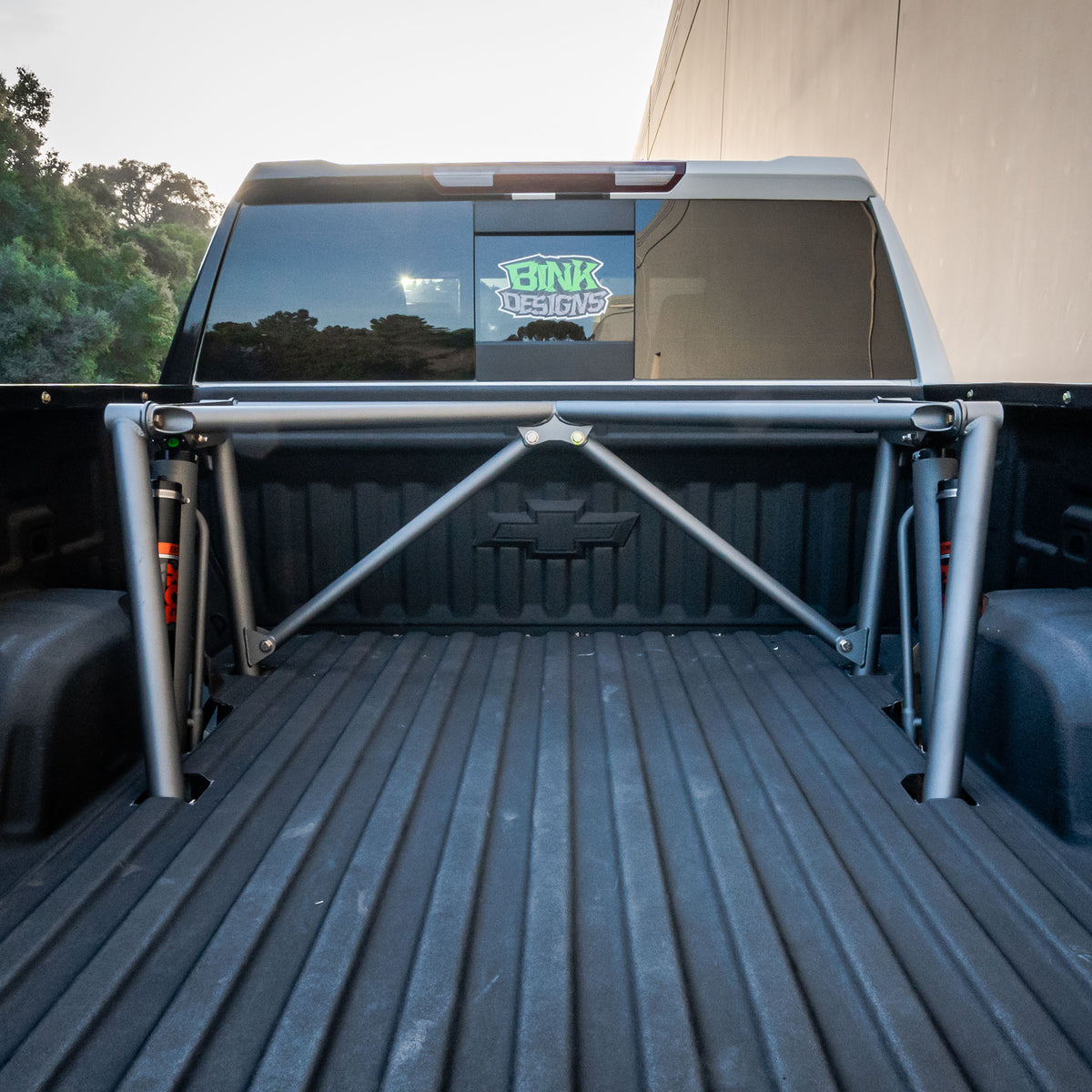

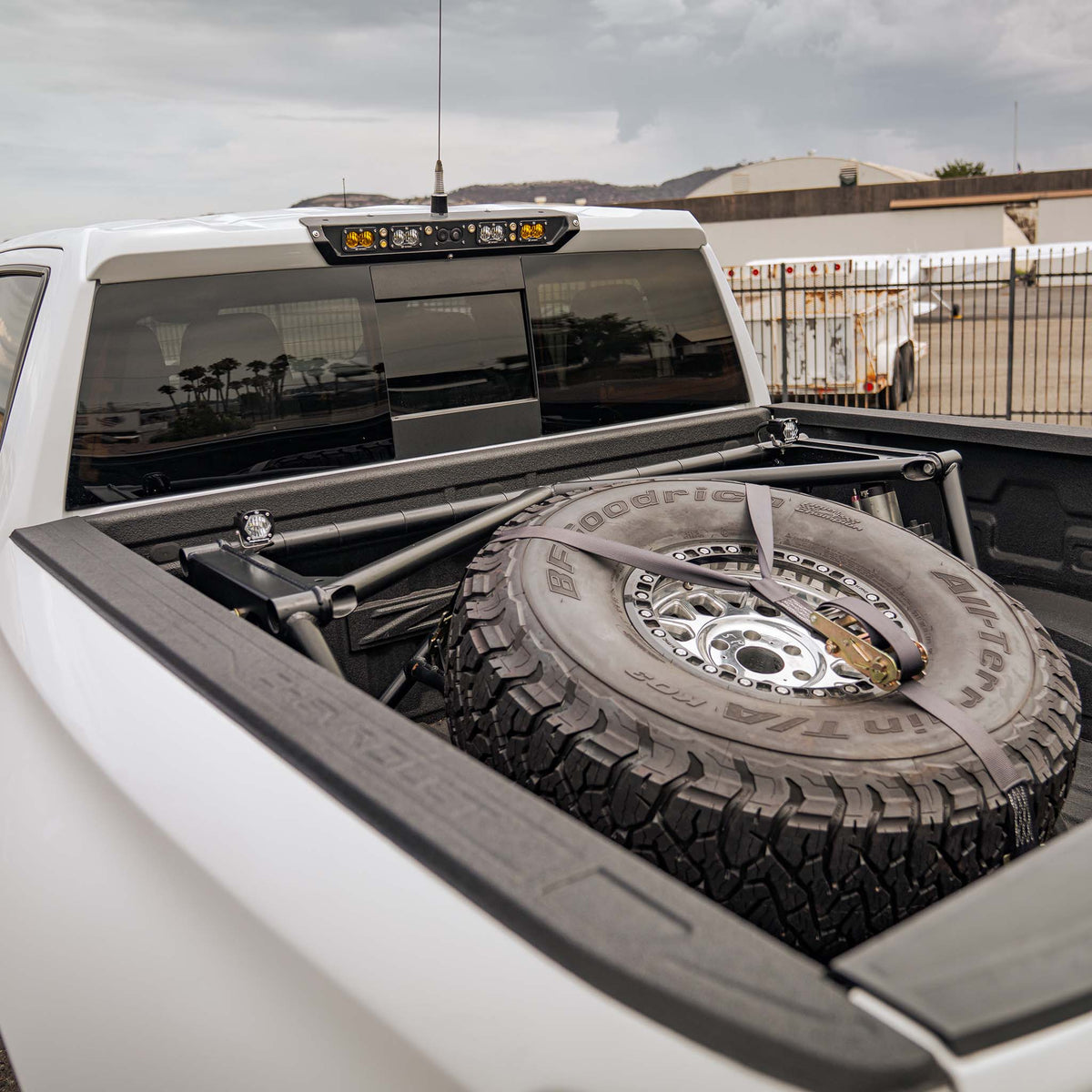

The Dirt King Prefab Bed Cage increases rear suspension travel and shock stability while preserving usable bed space. Its boxed plate and tube structure bolts together after four frame brackets are welded in place. The shocks mount vertically outside the frame rails for improved stability, a motion ratio close to 1:1 and more consistent damping than an inboard cantilever layout. The center section includes accessory mounting holes for dust lights or flag whips, and the cage supports leaf-over or leaf-under spring packs.

Features

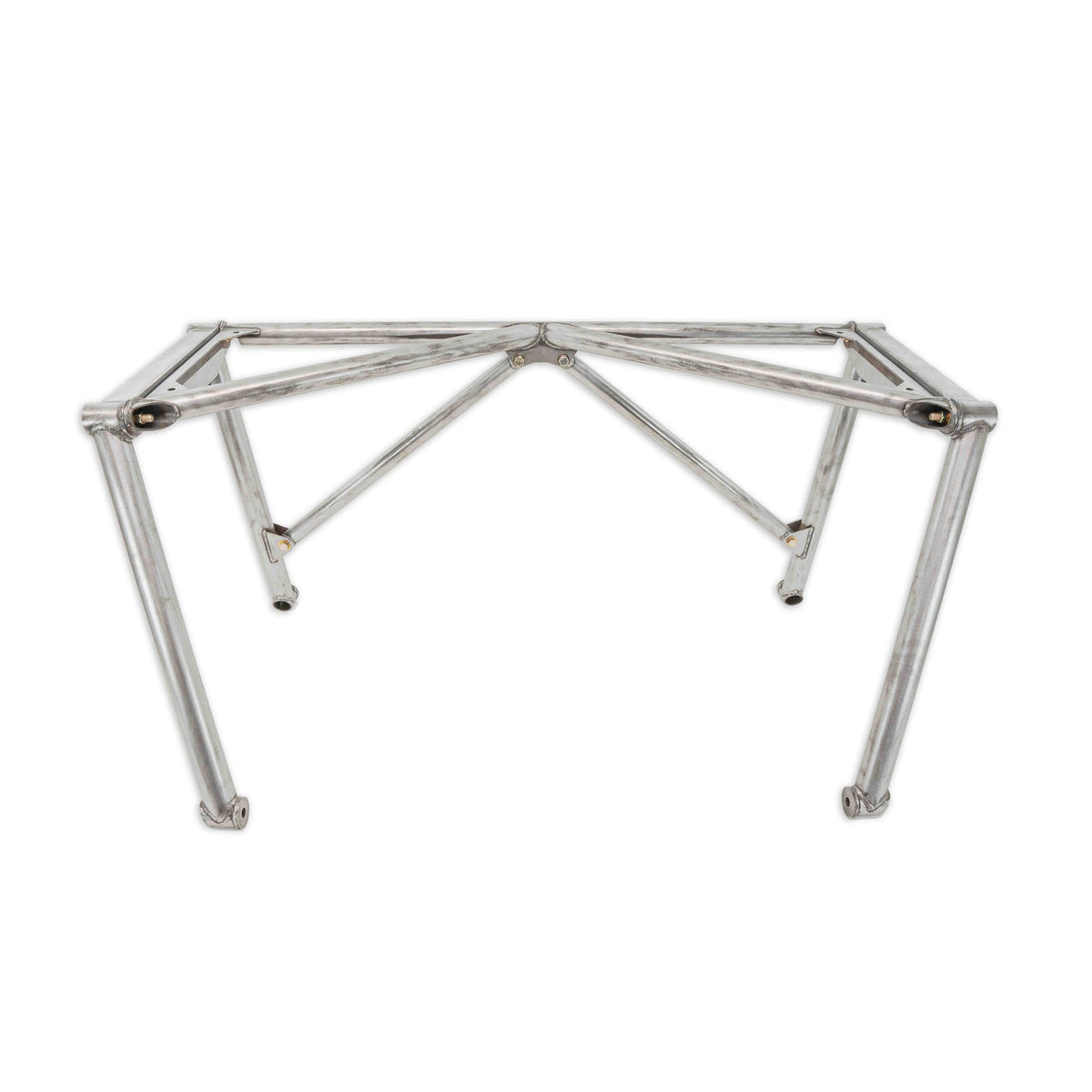

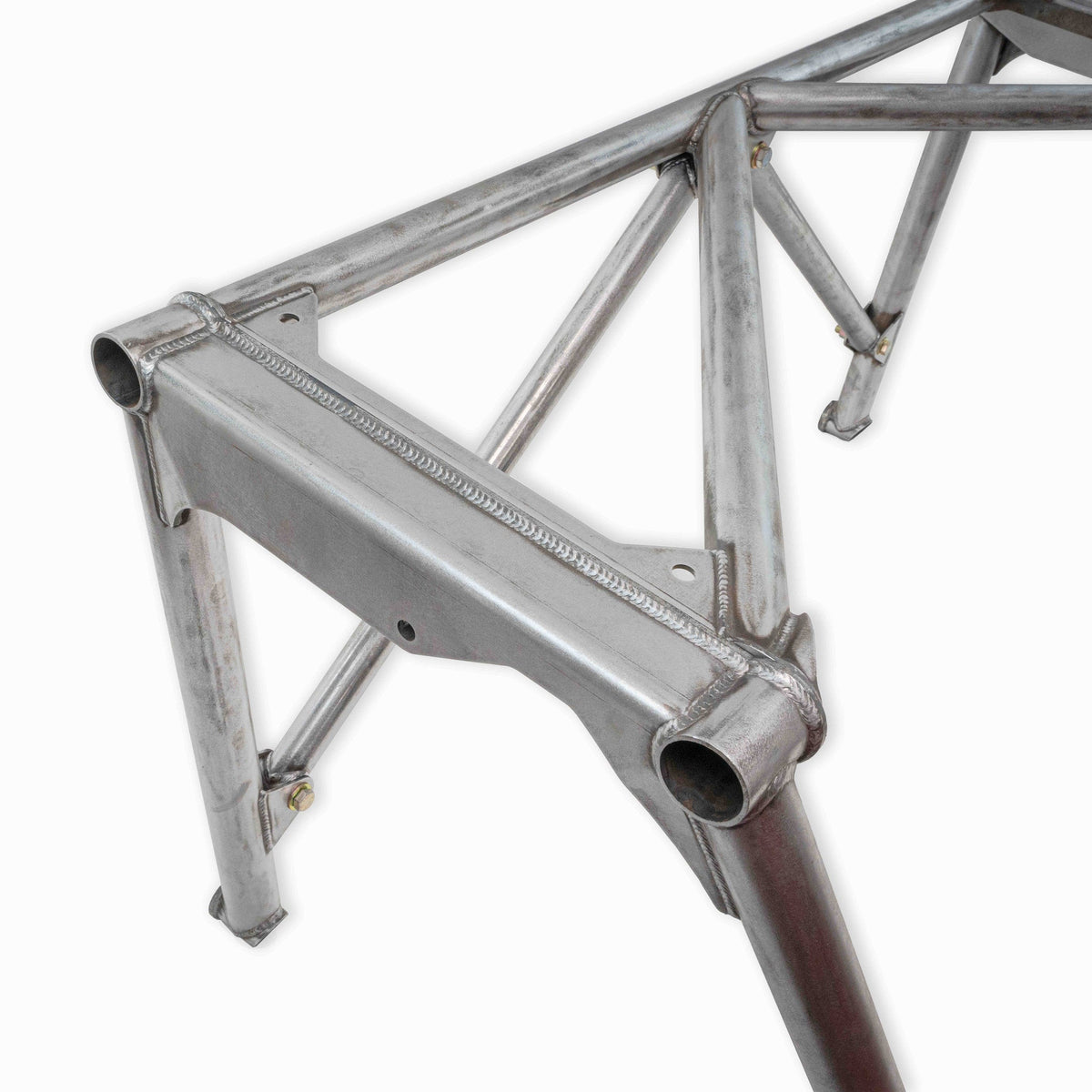

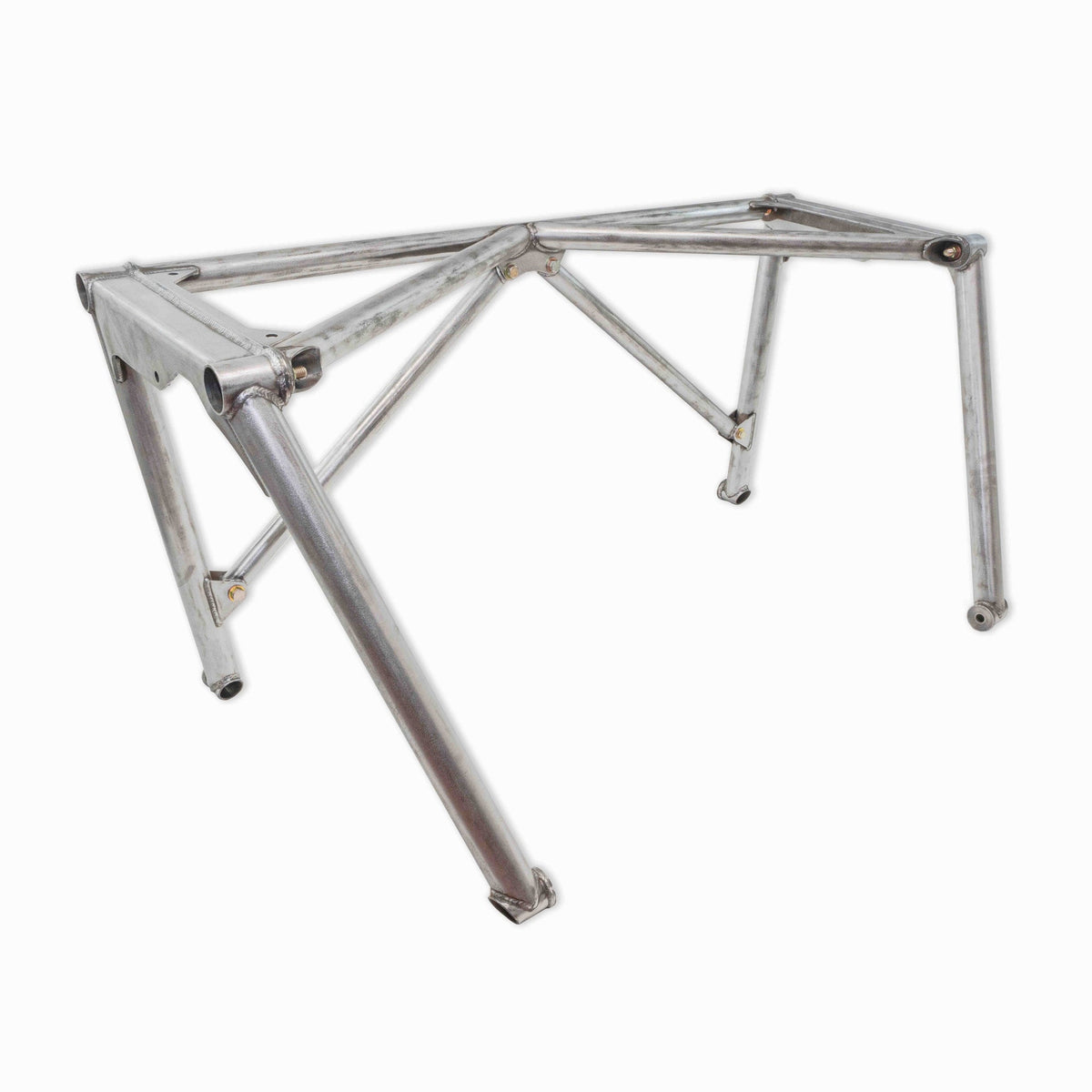

• CAD-designed boxed plate and tube construction
• 2-inch × .120-inch tubing
• 1/4-inch, 3/16-inch and 1/8-inch plate
• Professionally MIG welded
• Bolt-together cage with four frame brackets requiring welding
• Made in the USA

Specifications

• Recommended leaf pack: Deaver R81
• Recommended shocks: Fox or King; compatible with other shock manufacturers
• Recommended shock length: 16 inches (26 inches collapsed and 42 inches extended)
• Compatible with 14-inch shocks when extended rod ends are used, with reduced travel
• Recommended shock diameter: 3.0 inches; compatible with 2.5-inch to 3.5-inch shocks
• Bypass tubes must be positioned on the front and back of the shocks
• Shock mounting width: 1.5 inches
• Requires 1.5-inch to 2-inch wheel spacers or an axle 1.5 to 2 inches wider per side
• Accessory mounting holes: 1/2 inch

What’s included

• Prefabbed bed cage structure
• Grade 8 mounting hardware
• Installation instructions

Vehicle fitment

• 2019–2026 Chevrolet Silverado 1500 — 2WD and 4WD
• 2019–2026 GMC Sierra 1500 — 2WD and 4WD

Ships directly from the supplier.
