Dirt King Shackle & Hanger Kit | 2005–2023 Toyota Tacoma

Overview

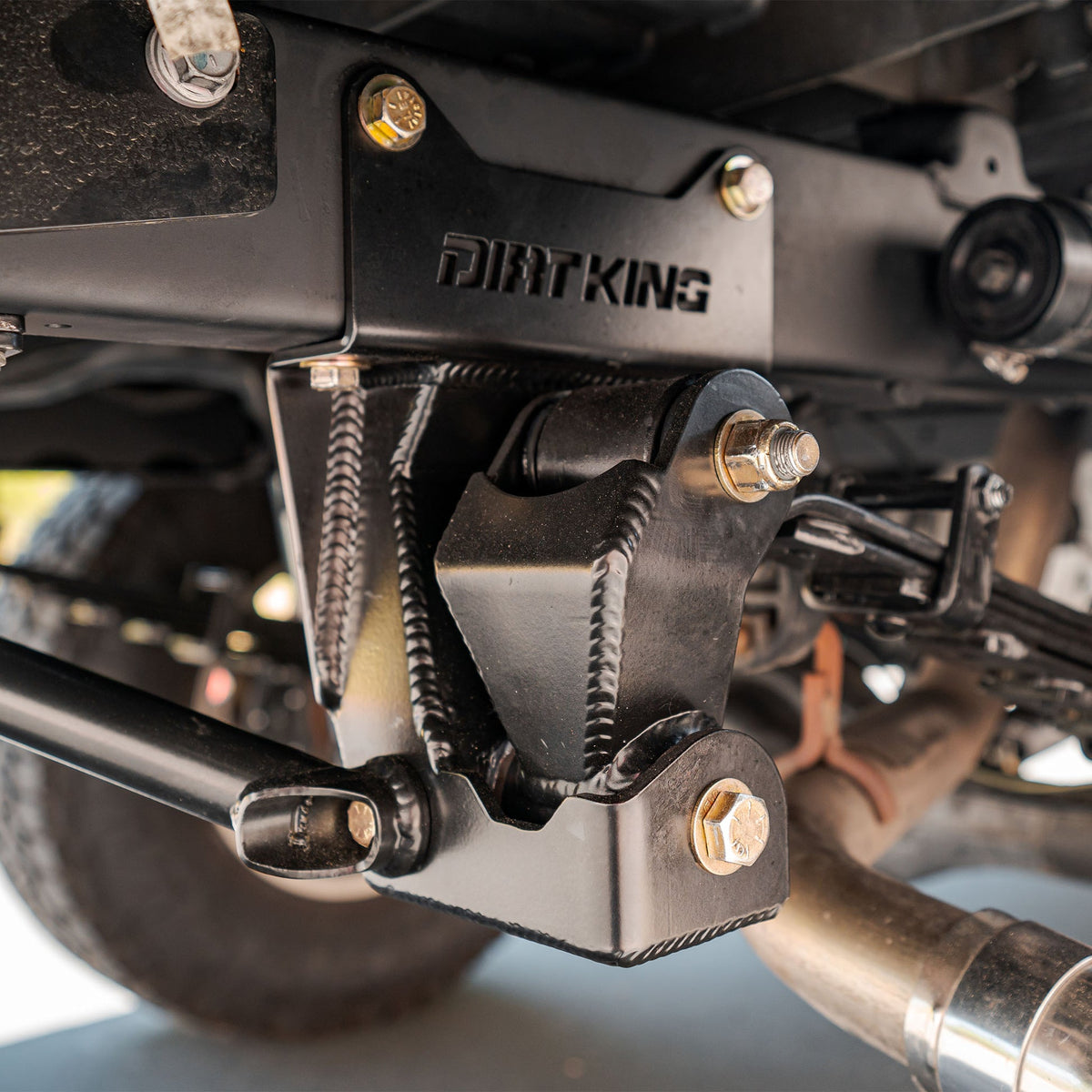

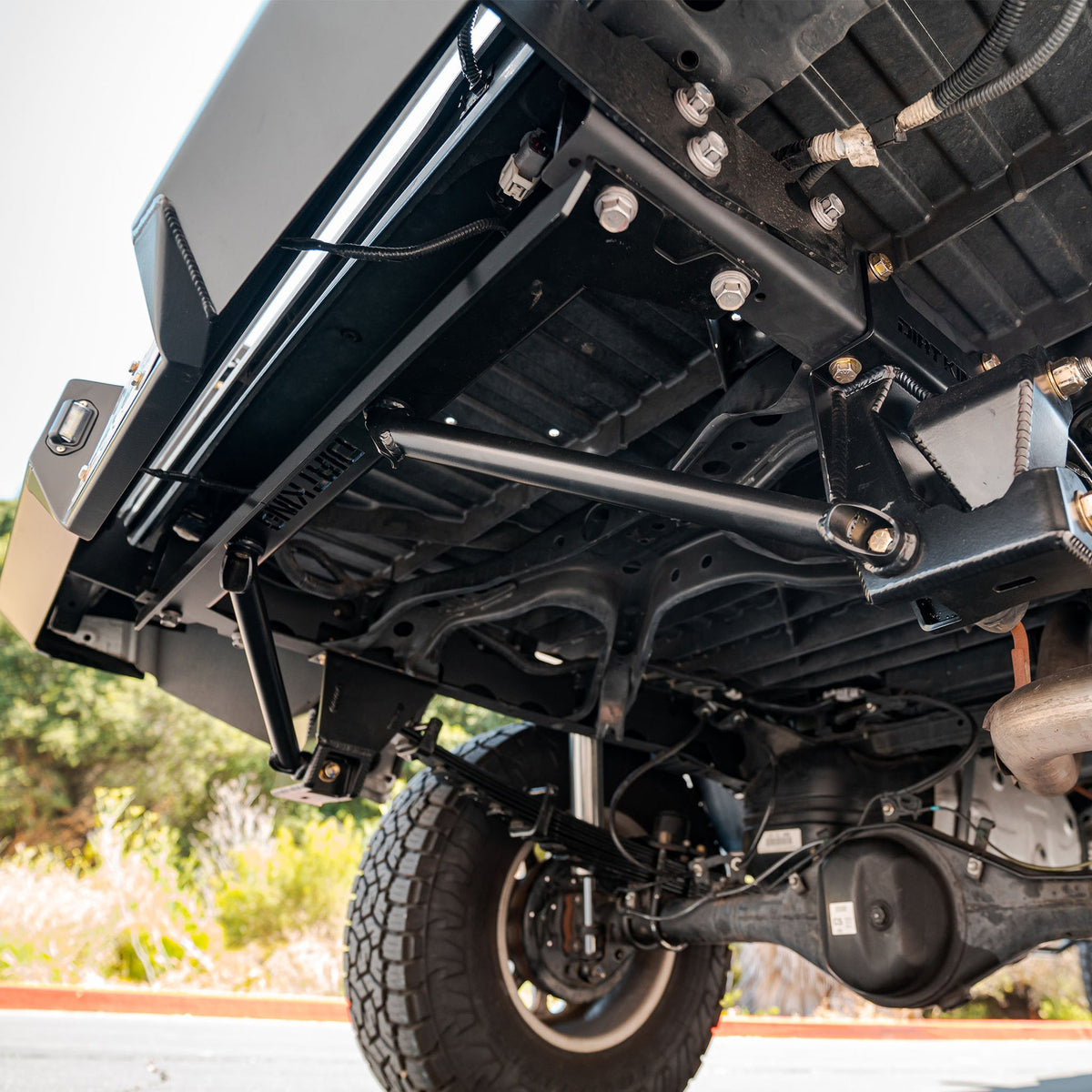

Upgrade your 2005-2023 Toyota Tacoma with the Dirt King heavy-duty shackle and hanger kit, designed to significantly improve geometry and strength. Constructed from high strength 3/16" and 1/4" steel, these shackles and hangers are engineered to resist deflection and bending, a common issue with stock shackle hangers. The redesigned mounting location and length of the shackle improves articulation and droop travel for superior off-road performance. When paired with Deaver U402 leaf springs, shock relocation towers, and 12" shocks you can achieve 13" of travel, a remarkable 30% improvement over the factory setup. This kit is compatible with all OEM replacement leaf springs. The hangers are easily installed using grade 8 mounting hardware. For those seeking even greater strength, an optional cross brace is available. This brace is compatible with the OEM spare tire & the factory tow hitch, although compatibility with certain aftermarket rear bumpers may vary.

What's included

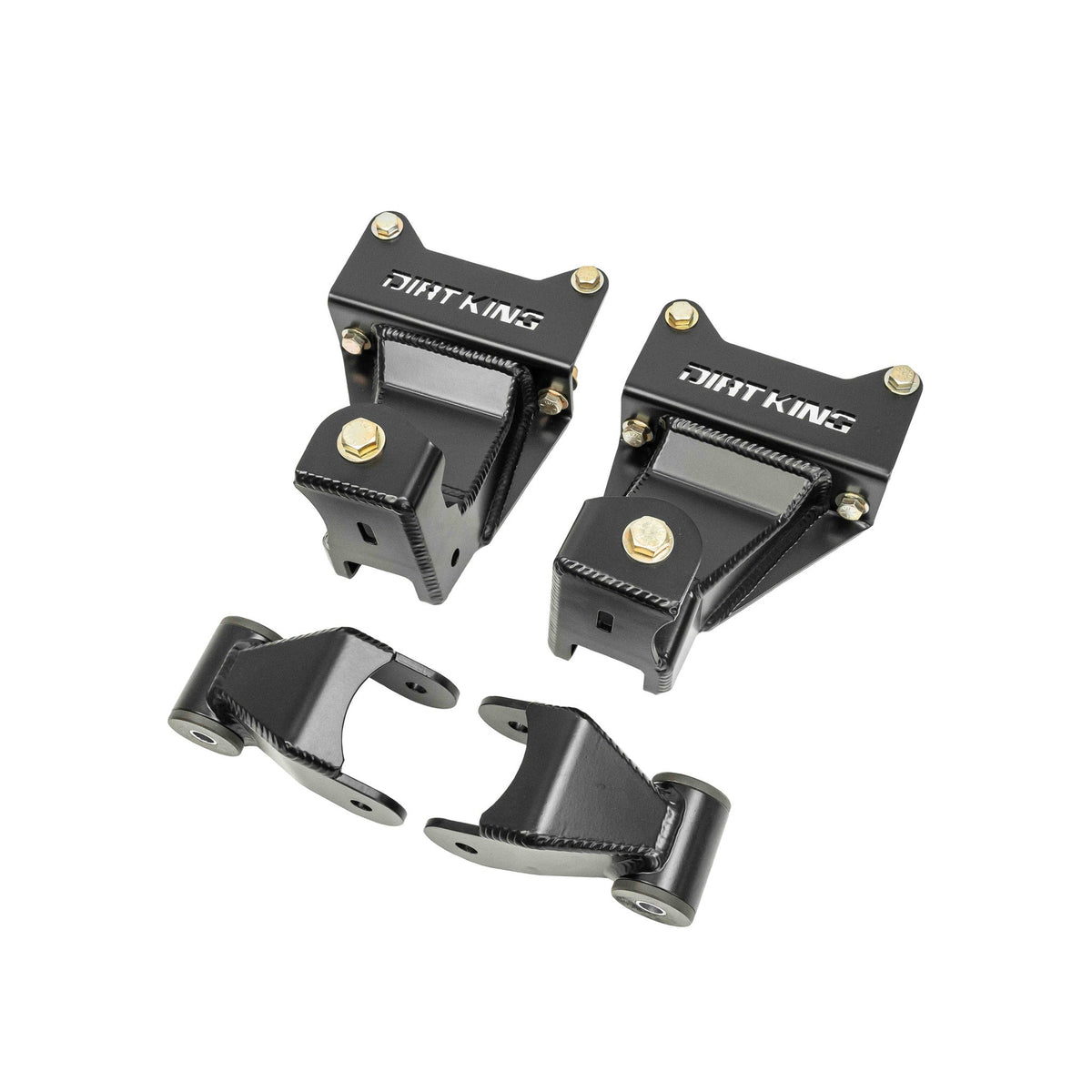

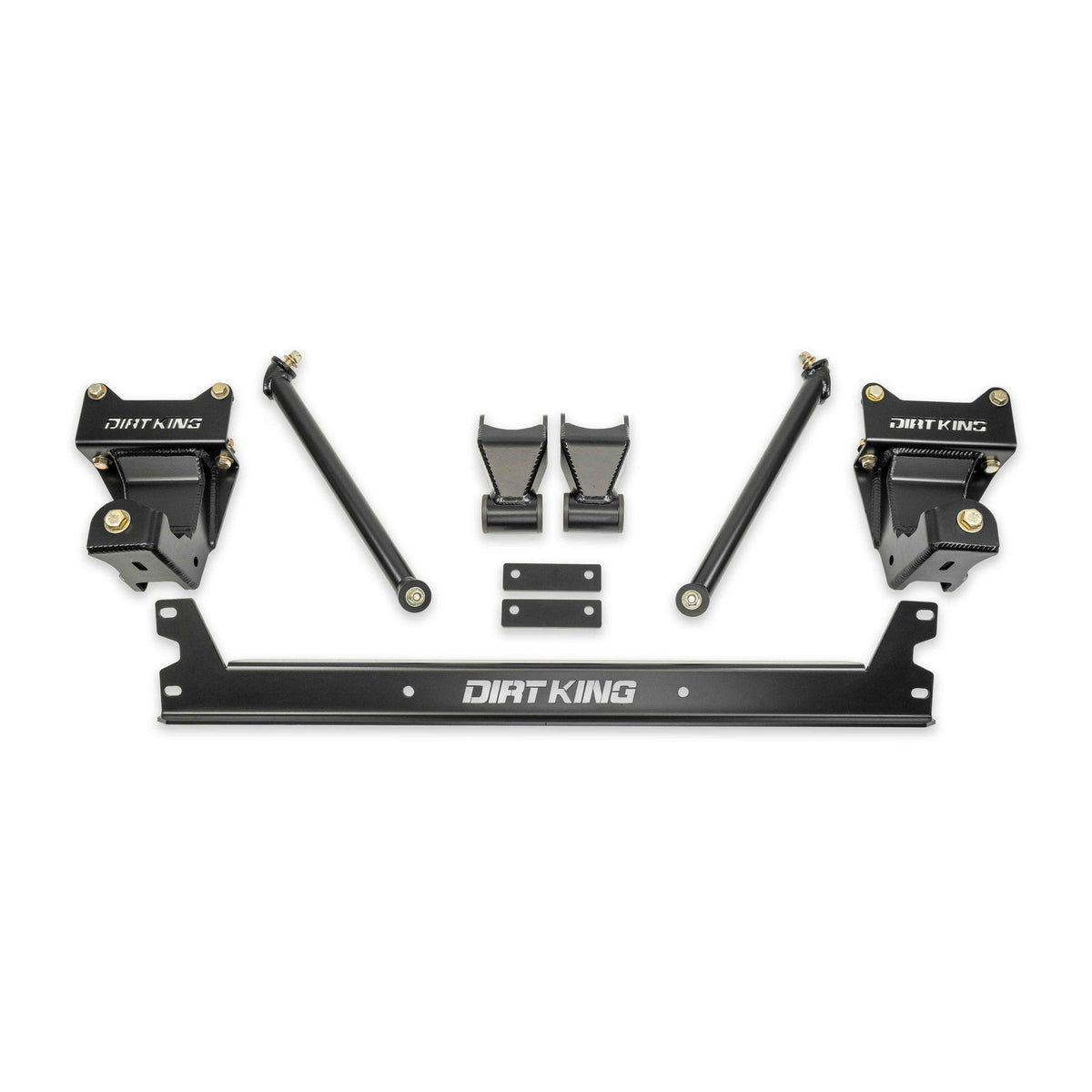

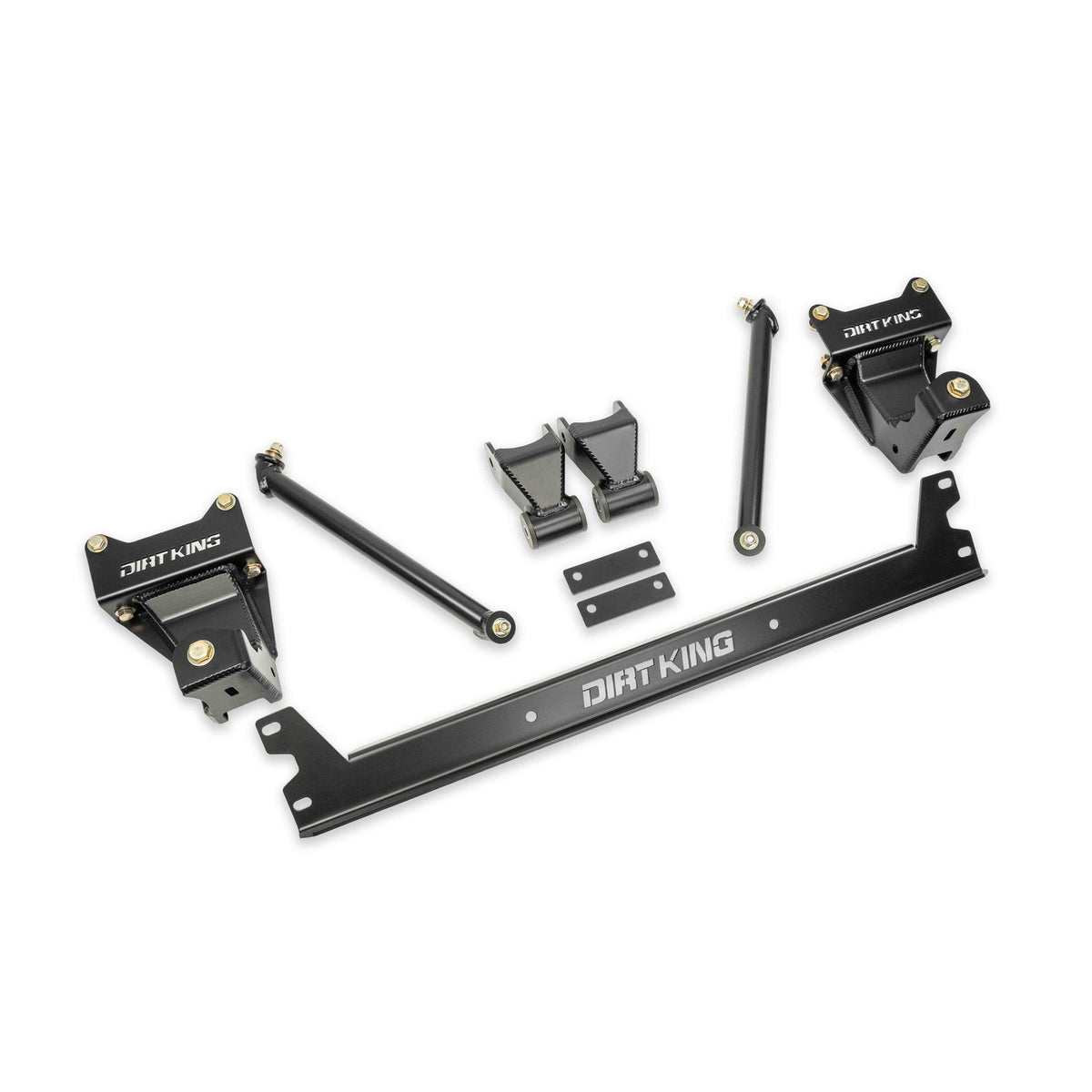

(2) Shackle Hangers
(2) Shackles
Grade 8 mounting hardware

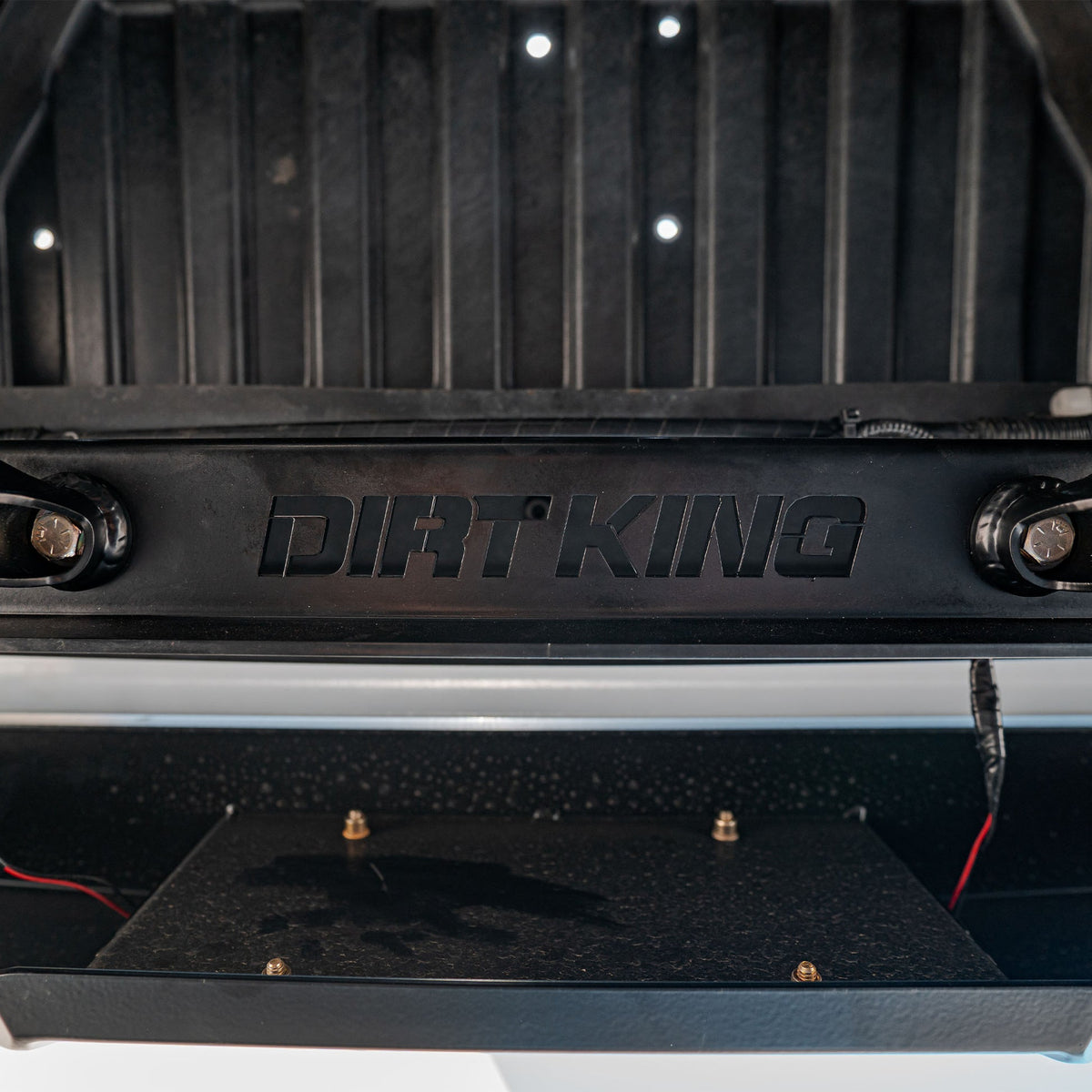

(Optional) Cross Brace

Compatibility

2005-2023 Toyota Tacoma 2WD / 4WD

Installation instructions

DK-811861 Instructions

DK-811861-B1100 Instructions

Install Video

Ships directly from the supplier.

Part numbers and configurations
