Dirt King Shock Relocation Kit | 2005–2023 Toyota Tacoma

Overview

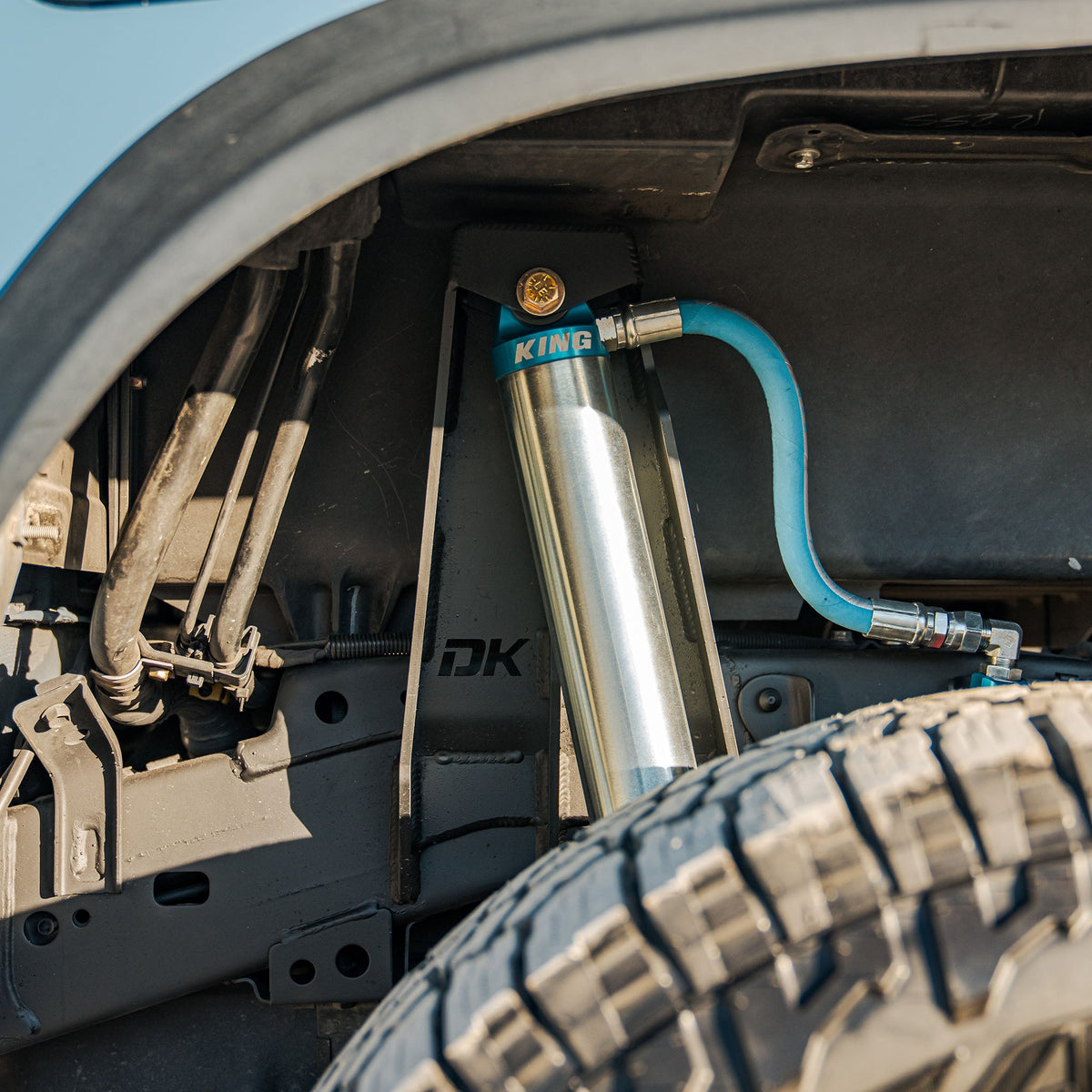

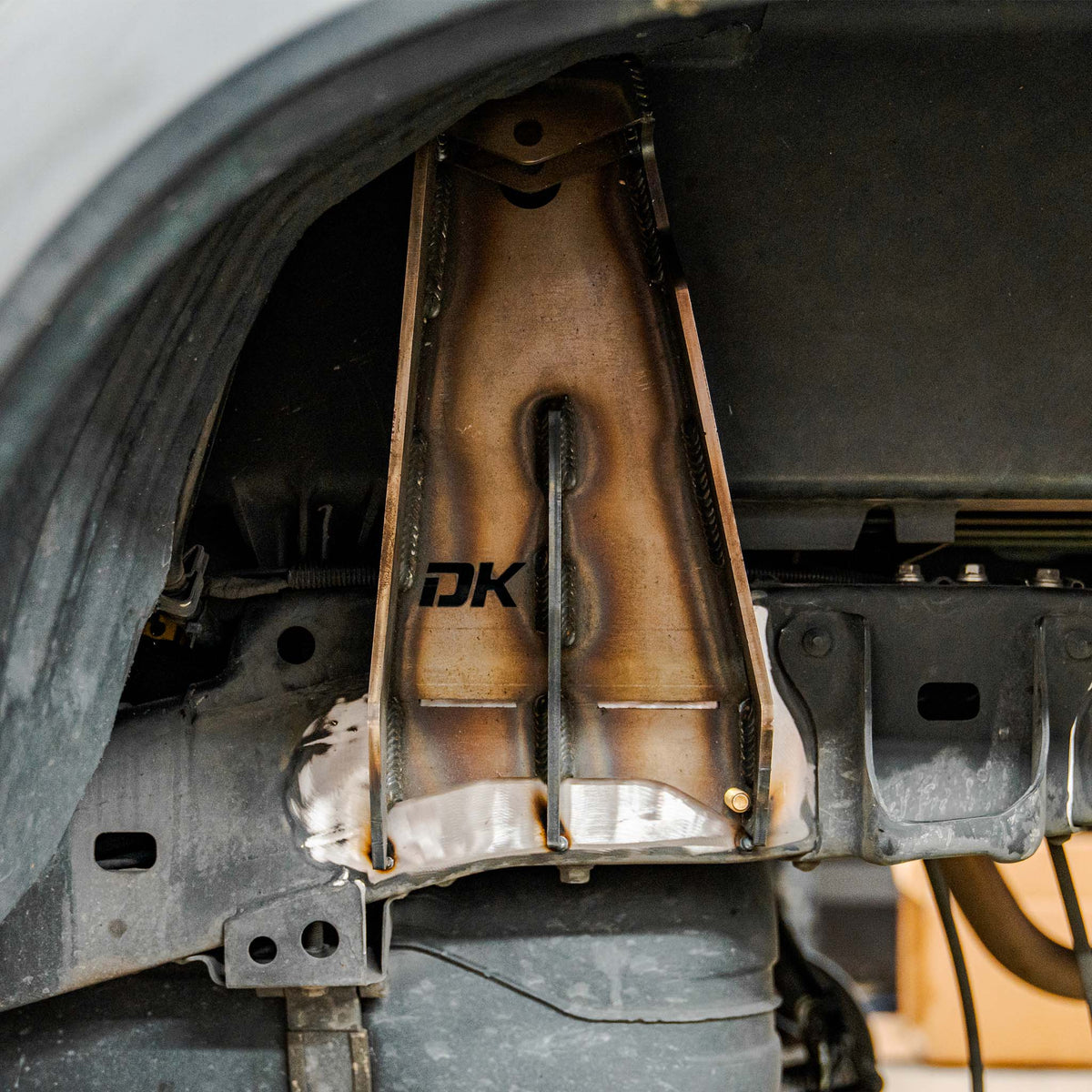

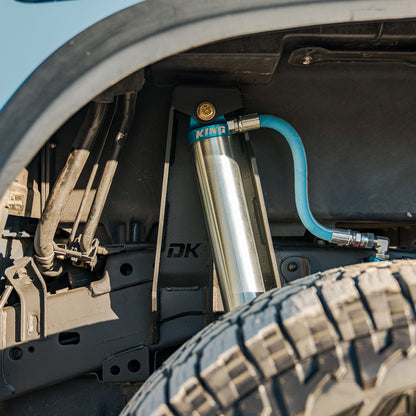

Introducing the Dirt King Rear Shock Relocation Kit for the 2005-2023 Tacoma. This kit is engineered to maximize rear suspension travel by increasing shock stroke by 50%. Shocks mounted in the factory location typically measure 2.5" x 8",  the Dirt King relocation kit is designed to accommodate for 2.5" x 12" shocks. This allows for significantly improved vehicle articulation, increasing down travel without sacrificing up travel. The kit comes complete with 3/16" lower shock tabs and all the necessary hardware for a straightforward installation. For optimal performance, Dirt King recommends pairing this kit with aftermarket leaf springs and the Dirt King Shackle and Hanger Kit to fully unleash your vehicle’s potential.

Specifications

• Amount of Lift: 0-3” (based off leaf spring spec)
• Track Width: Requires 1.5" wheel spacers
• Maximum Backspacing: 4.5"

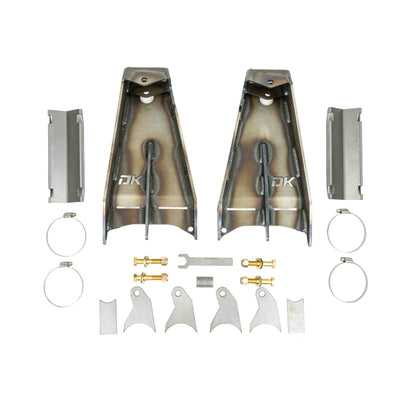

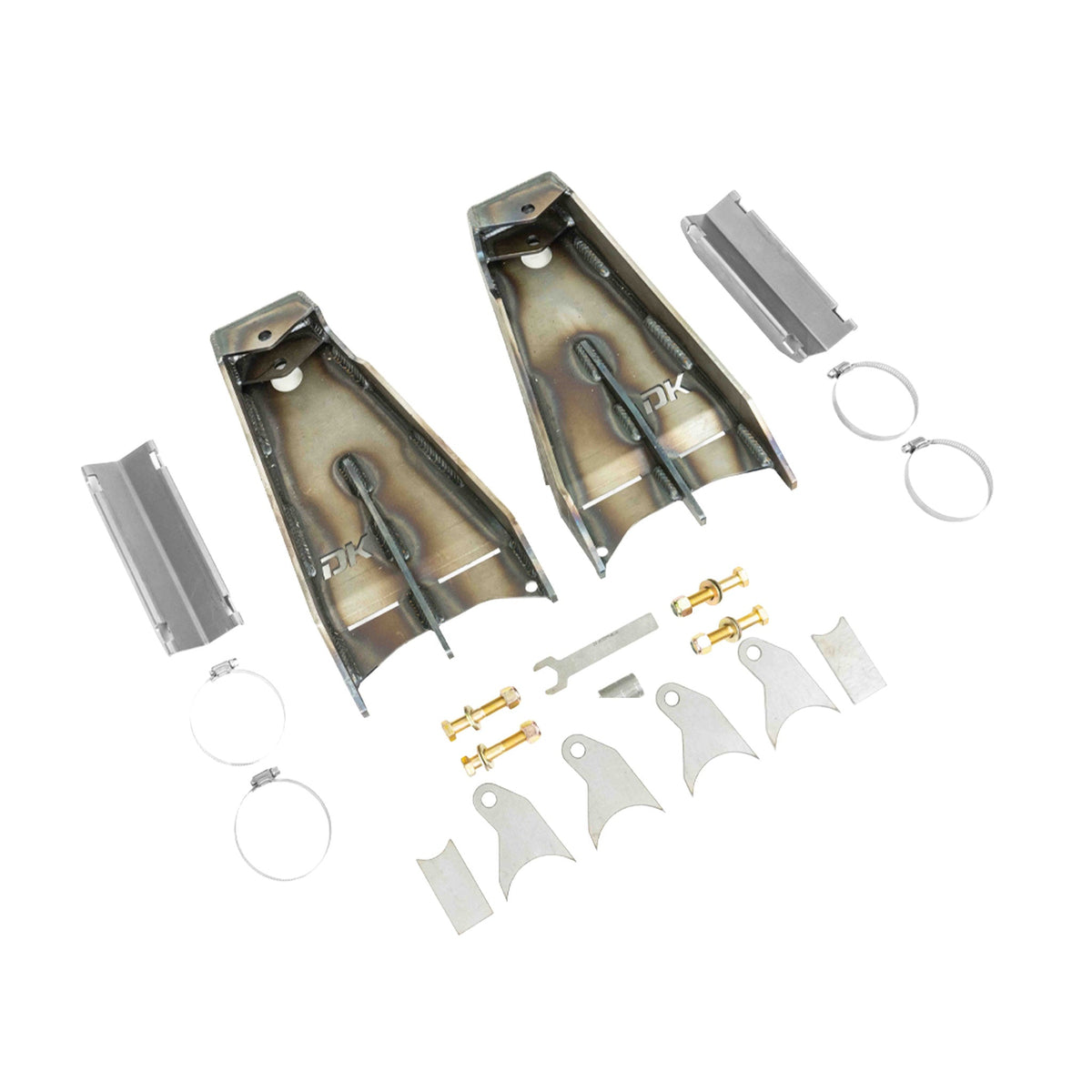

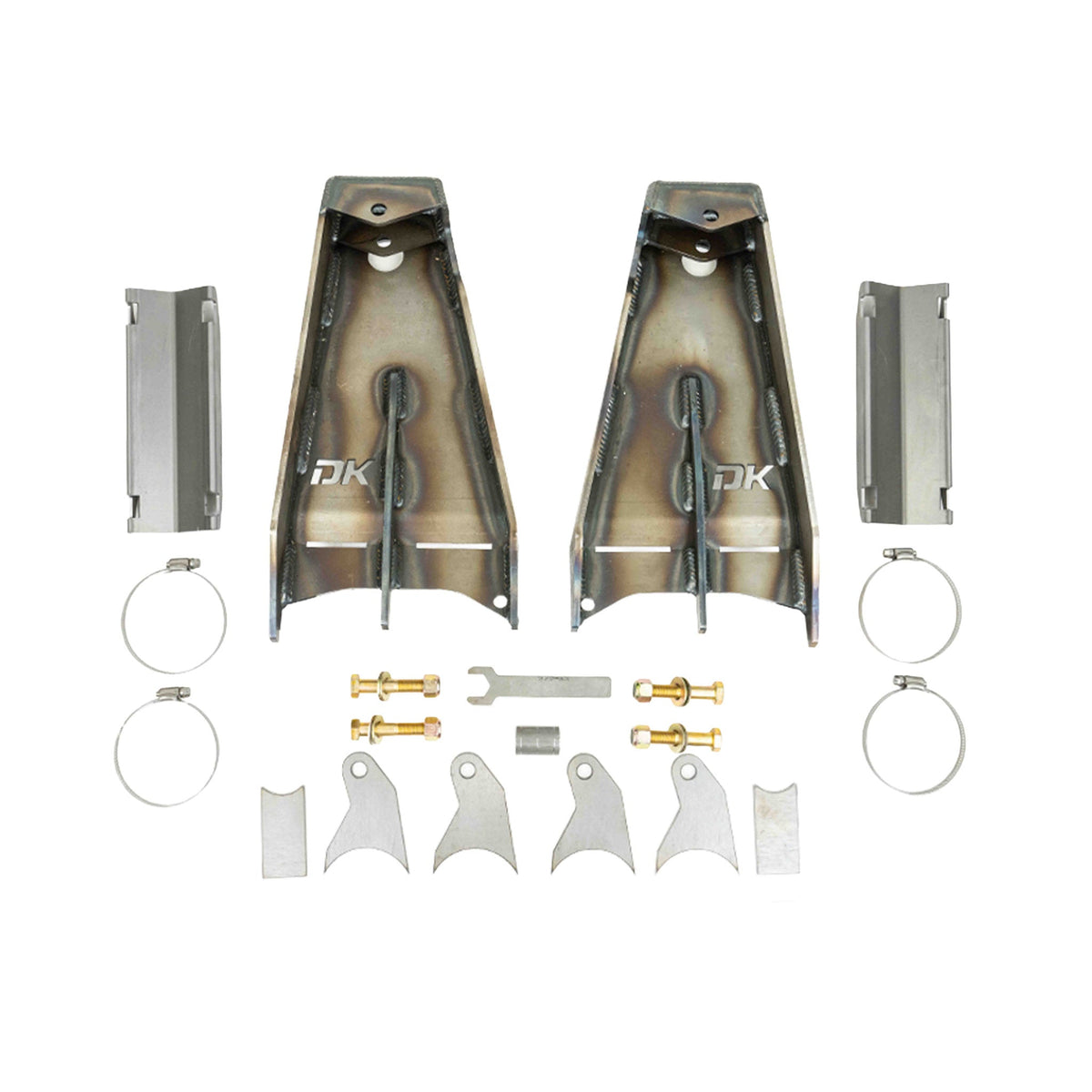

What's included

• Rear shock mounts
• Shock tabs
• Shock tab gussets
• Low profile wrench
• Reservoir mounts

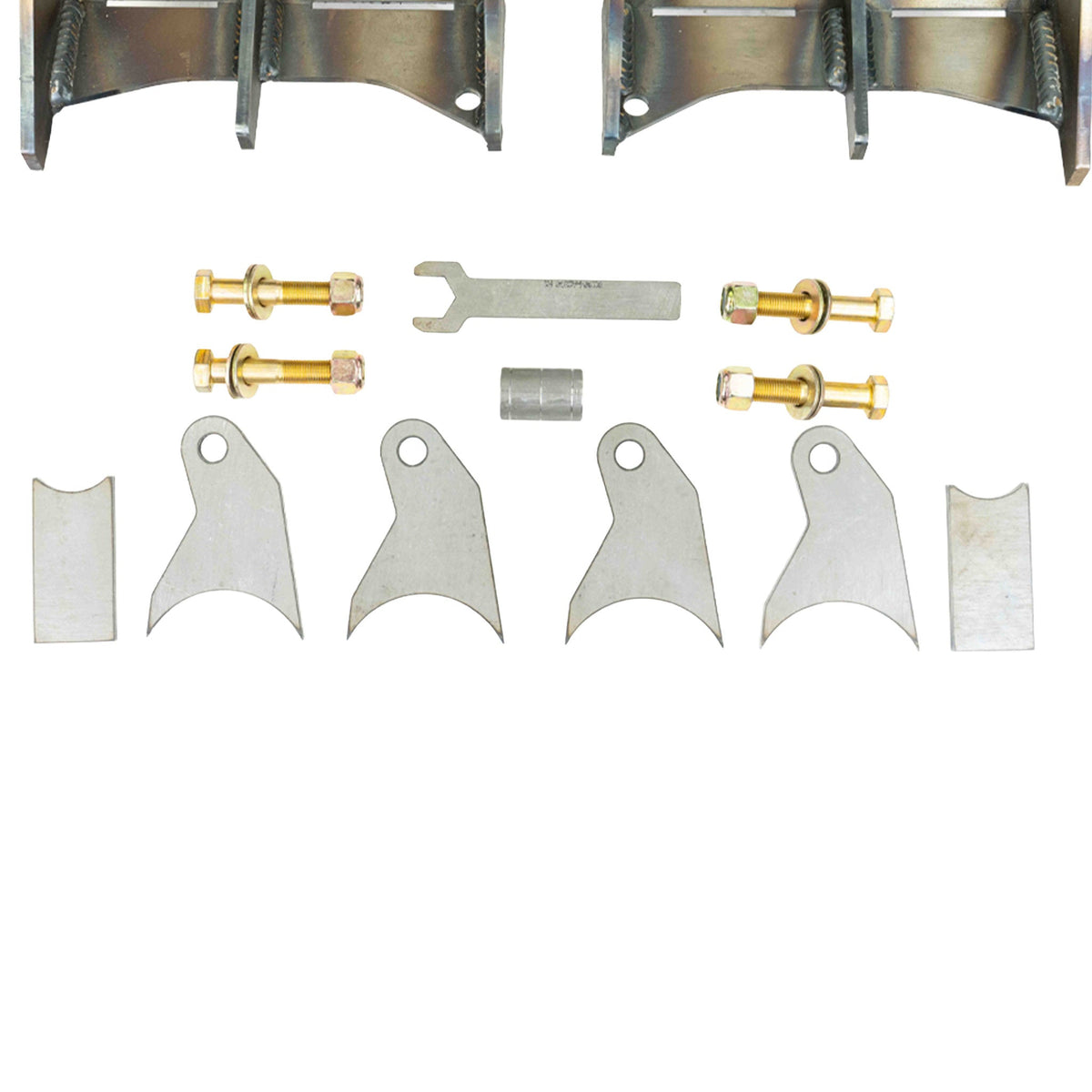

• Grade 8 mounting hardware
• Dirt King sticker pack
• Installation Instructions

Features

• CAD designed

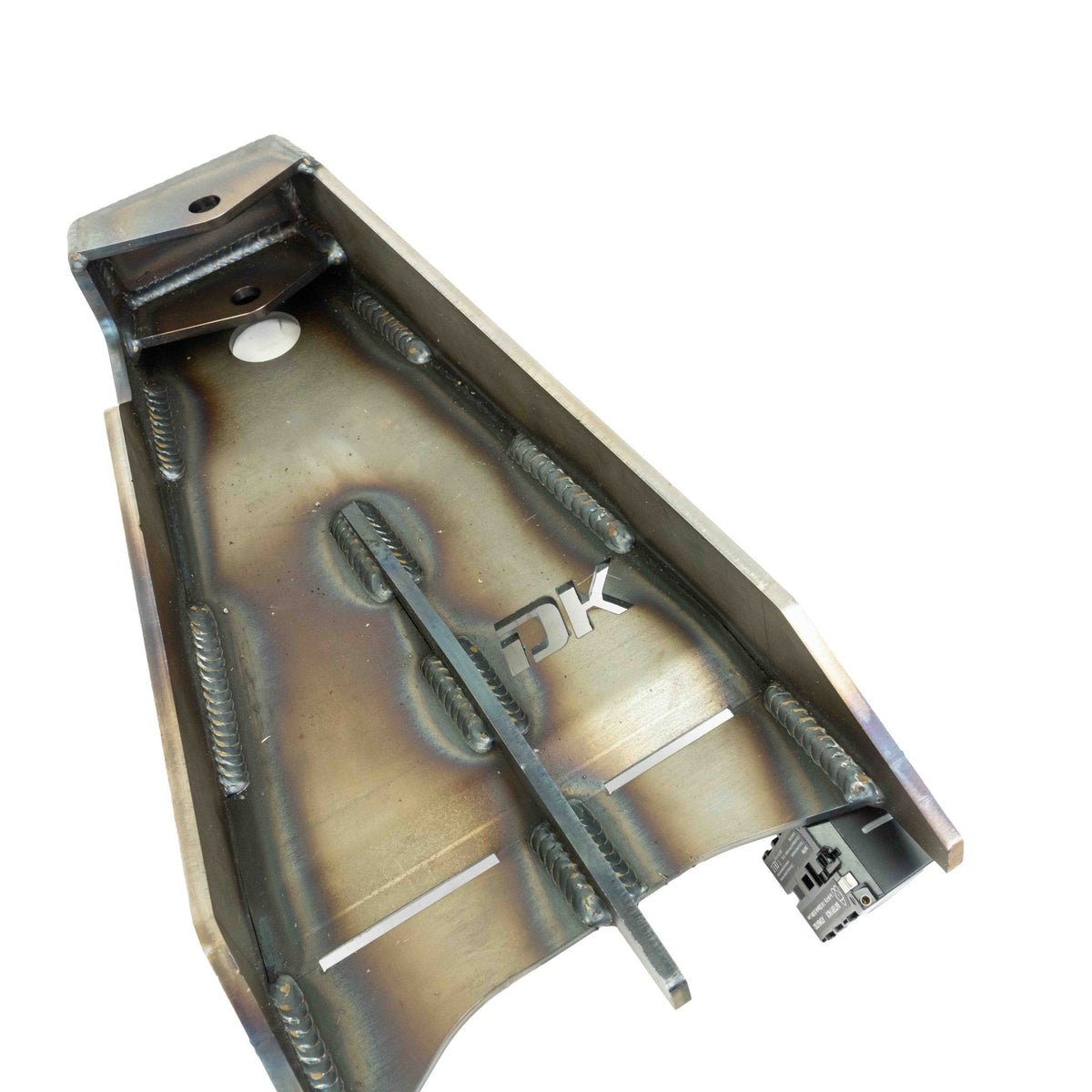

• Professionally MIG welded
• Proudly made in the USA

Installation instructions

Instructions

Compatibility

2005-2023 Toyota Tacoma 2WD / 4WD 6 lug

*Compatible with smooth body shocks. Not compatible with bypass shocks.

Ships directly from the supplier.
