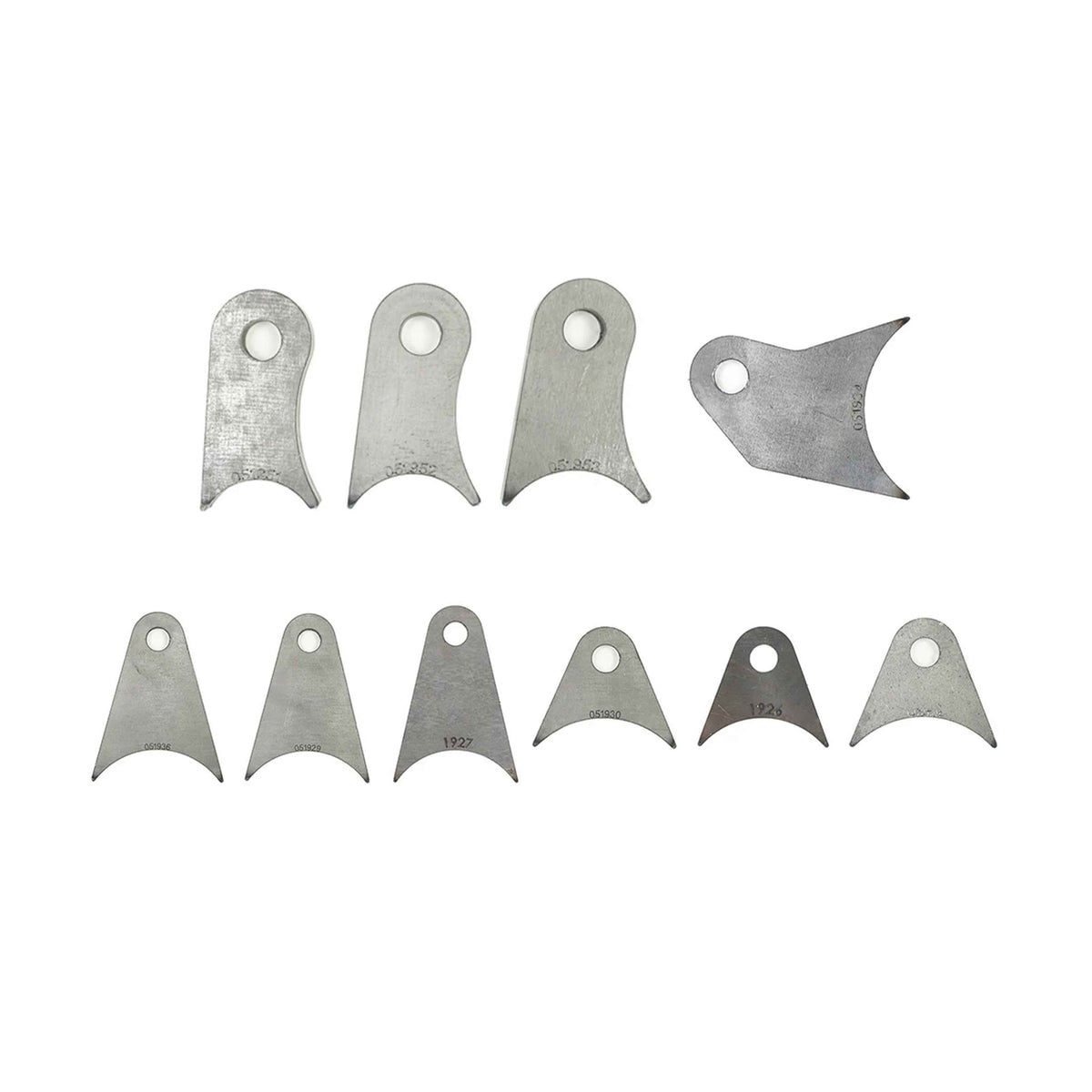

Dirt King Shock Tabs are precision-cut weld-on mounts for custom suspension and fabrication work. The available tabs are cut from 3/16-inch or 1/4-inch mild steel plate, use a 1/2-inch mounting hole, and are shaped for the tube diameter shown in the dropdown.
Use these tabs to mount bypass shocks, coilovers, air shocks, or other components that use a 1/2-inch mounting bolt. Select the tube diameter, overall length, and plate thickness that match your build.
Ships directly from the supplier.
Fabrication note: These are universal weld-on components. Confirm the dimensions, mounting width, suspension travel, alignment, and required welding before ordering or installation.
Part numbers and configurations
Configuration
Part number
Price
1.5" Tube | 1.750" Long | 1/4" Thick
DK-051951
$3.75
1.75" Tube | 1.750" Long | 1/4" Thick
DK-051952
$3.75
2.0" Tube | 1.750" Long | 1/4" Thick
DK-051953
$3.75
1.5" Tube | 3.777" Long | 3/16" Thick
DK-051926
$2.75
1.75" Tube | 3.777" Long | 3/16" Thick
DK-051928
$2.75
2.0" Tube | 3.777" Long | 3/16" Thick
DK-051930
$2.75
3.0" Tube | 4.000" Long | 3/16" Thick
DK-051934
$2.75
1.5" Tube | 3.777" Long | 1/4" Thick
DK-051927
$3.75
1.75" Tube | 3.777" Long | 1/4" Thick
DK-051929
$3.75
3.0" Tube | 4.000" Long | 1/4" Thick
DK-051936
$3.75
Manufacturer Warranty
Dirt King provides warranty coverage to the original purchaser for defects in materials and workmanship under normal use. If Dirt King approves a manufacturing-defect claim, it may repair or replace the product.
Coverage does not include improper installation, misuse, abuse, accidents, modifications, racing, normal wear, cosmetic damage, or improper maintenance. Stop using the part if continued use could be unsafe or cause more damage.
To start a claim, email sales@bajaracingparts.com with your Baja Racing Parts order number, the part number, a description of the issue, and clear photos. We will help you begin the manufacturer review process.
